Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VZ 800 Marauder SUZUKI VZ800 K2 Marauder (E03,E28,E33) SUZUKI 36D - FUEL TANK (MODEL Y F.NO.103783~)

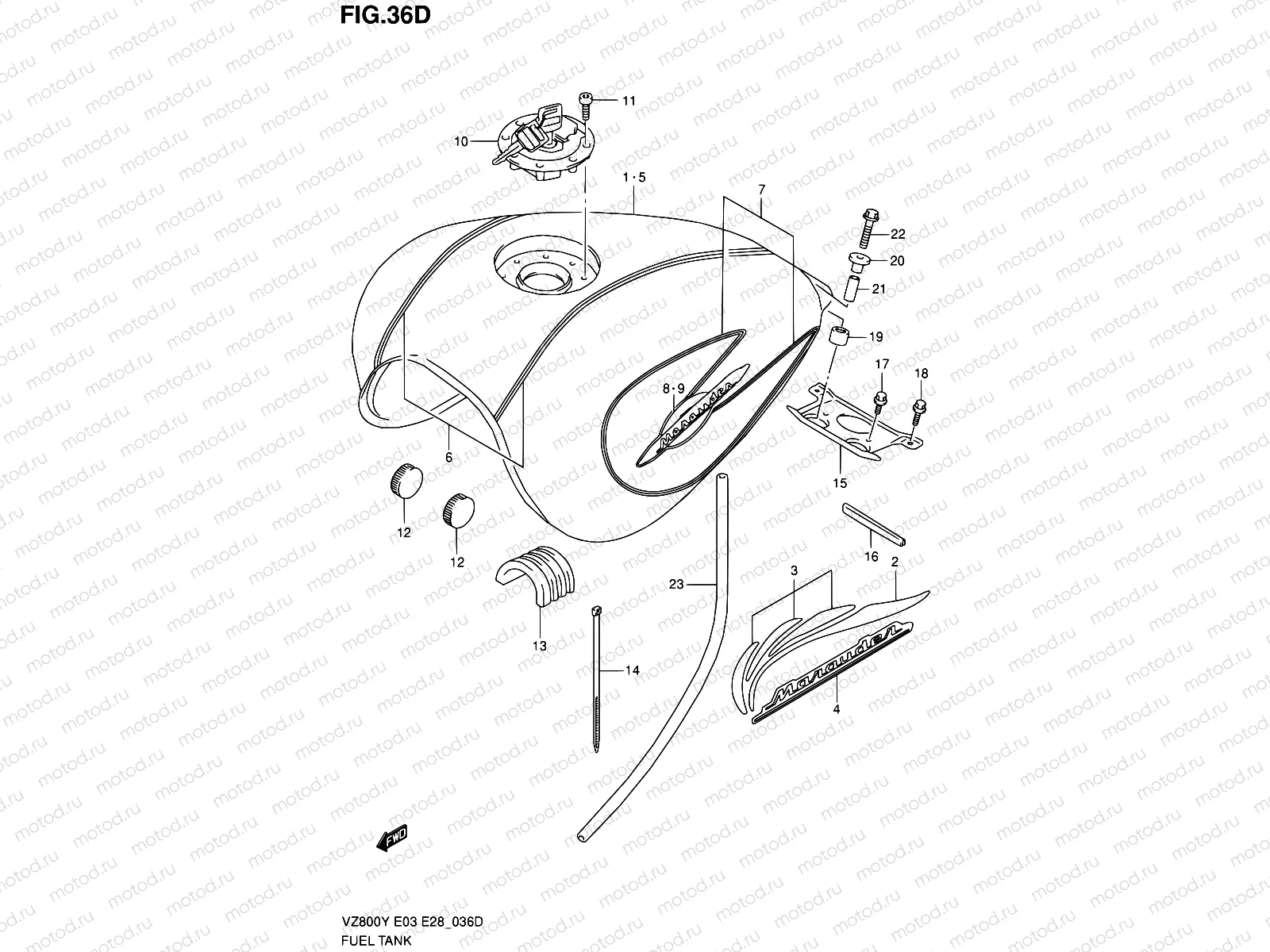

36D - FUEL TANK (MODEL Y F.NO.103783~)

36D - FUEL TANK (MODEL Y F.NO.103783~)

Например: 49200-48ED0-33J

1

49200-48ED0-33J

Fuel tank (Black)

1

49200-48EE0-33J

Tank assy, fuel (black)

2

68110-48E51-0MT

ape set,fuel t

3

68120-48810

Emblem set,fuel

4

68121-48E31-J3J

MBLEM

2 014 ₽/шт

5

49200-48EG0-BP8

Tank set,fuel

5

49200-48EG0-M9U

TANK SET,FUEL

5

49200-48EH0-BP8

Tank assh, fuel

6

68110-48E60-BU3

.tape set, upper

6

68110-48E60-BU2

.tape set, upper

7

68110-48E70-BT9

ape set,fuel t

7

68110-48E70-BT8

.tape set, side

8

68111-48E20

MBLEM,FUEL TANK,R

6 137 ₽/шт

9

68121-48E20

MBLEM,FUEL TANK,L

7 601 ₽/шт

10

44200-33850

CAP SET,FUEL TANK

24 438 ₽/шт

10

44200-33860

Cap set, fuel tank

11

09106-05017

БОЛТ

113 ₽/шт

12

09329-10026

ОПОРА КРЕПЛЕНИЯ ТОПЛИВНОГО БАКА

226 ₽/шт

13

44541-13E00

CUSHION,FUEL TANK UPR

864 ₽/шт

14

09407-25402

CLAMP(L:250)

238 ₽/шт

15

44550-48E01

BRACKET,FUEL TANK RR

1 427 ₽/шт

16

47512-47D01

Protector

454 ₽/шт

17

01550-0612B

БОЛТ

81 ₽/шт

18

01550-0616B

БОЛТ

81 ₽/шт

19

44542-48E00

CUSHION,FUEL TANK RR NO.2

516 ₽/шт

20

09320-10022

Валик топливного бака

1 520 ₽/шт

21

09180-06067

SPACER(6.5X10.5X22.5)

1 370 ₽/шт

22

01550-0635B

Болт

112 ₽/шт

23

44423-48E02

Hose,fuel Tank Drain

1 826 ₽/шт
