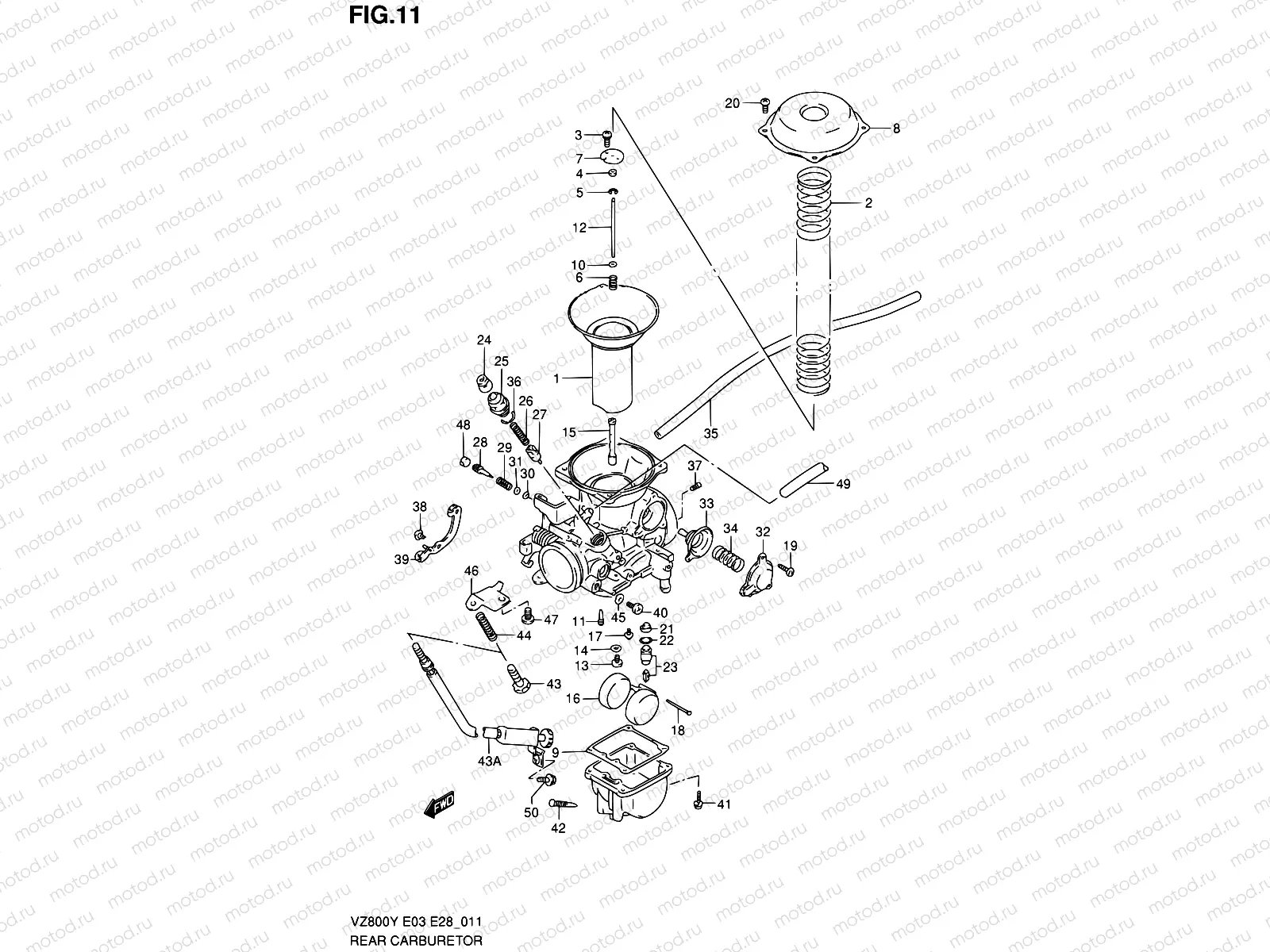

11 - REAR CARBURETOR

11 - REAR CARBURETOR
Например: 13220-48E70
0
13220-48E70
Carburetor assy, rr
0
13220-48EB0
Carburetor assy, rr
0
13220-48EF0
Carburetor assy, rr
0
13220-48EG0
Carburetor assy, rr
1
13500-38A10
ДИАФРАГМА КАРБЮРАТОРА
26 486 ₽/шт
2
13503-38B00
Пружина
864 ₽/шт
3
02112-33073
Болт
85 ₽/шт
4
13387-47010
RING
323 ₽/шт
5
13394-40D20
E RING
282 ₽/шт
6
13388-44030
Пружина
1 143 ₽/шт
7
13389-37400
PLATE
368 ₽/шт
8
13502-45CE0
OVER
2 737 ₽/шт
9
13251-38A10
Прокладка
1 114 ₽/шт
10
13382-44030
Шайба
4 110 ₽/шт
11
09492-45016
JET,PILOT(45)
790 ₽/шт
12
13383-48E70
Жиклер
1 071 ₽/шт
13
09491-20017
Жиклер главный (100)
790 ₽/шт
14
13382-03110
Шайба
178 ₽/шт
15
09494-00902
.jet, needle (p-3m)
16
13252-23010
Поплавок
2 503 ₽/шт
17
13602-05A10
Болт
238 ₽/шт
18
13254-92311
PIN,FLOAT
162 ₽/шт
19
13602-19B50
Болт
215 ₽/шт
20
13602-48B00
Болт
238 ₽/шт
21
13376-19F00
Фильтр-сеточка
581 ₽/шт
22
13374-35C00
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
23
13370-39A00
Клапан
7 395 ₽/шт
24
13681-04011
CAP
835 ₽/шт
25
13418-43410
HOLDER,GUIDE
888 ₽/шт
26
13417-22010
Пружина
204 ₽/шт
27
13411-01400
Плунжер
782 ₽/шт
28
13279-47070
Винт топливный
884 ₽/шт
29
13268-47070
Пружина
272 ₽/шт
30
13295-29901
O-Ring, Pilot Air Screw
210 ₽/шт
31
13291-29900
Шайба
162 ₽/шт
32
13484-45C00
OVER
1 357 ₽/шт
33
13480-05A10
.diaphragm assy
34
13481-45C10
Пружина
375 ₽/шт
35
09352-50005-600
ШЛАНГ
436 ₽/шт
35
13684-48EF0
.hose (5x8x315)
35
13683-19B80
.hose (5x8x650)
36
13278-47091
O Ring
210 ₽/шт
37
09492-70004
JET,PILOT(70)
790 ₽/шт
38
13602-05A30
Болт
238 ₽/шт
39
13554-38A10
Lever assy
40
09125-05122
Болт
97 ₽/шт
41
13601-04148
Болт
172 ₽/шт
42
13247-02340
Заглушка дренажная
258 ₽/шт
42
13247-02340
Заглушка дренажная
258 ₽/шт
43
13267-39E50
Регулятор
938 ₽/шт
43
13267-48E00
Регулятор
6 334 ₽/шт
44
13271-93011
Пружина
204 ₽/шт
45
13523-46110
Прокладка
179 ₽/шт
46
13621-38A10
BRACKET
727 ₽/шт
47
13602-06128
Болт
180 ₽/шт
48
13281-05A00
PLUG
170 ₽/шт
49
13683-38B00
.hose
50
01550-0610B
Болт
85 ₽/шт
