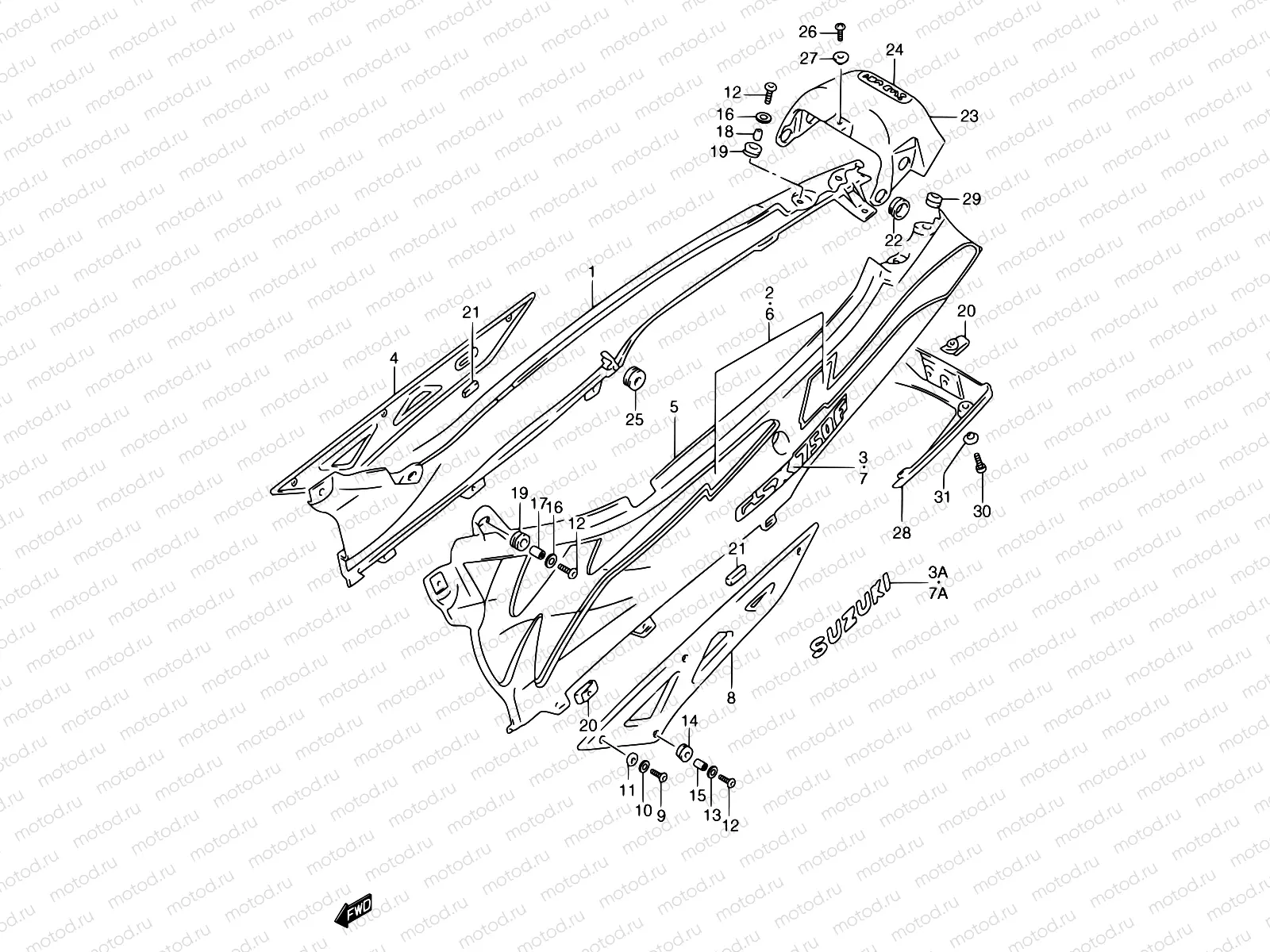

36B - FRAME COVER (MODEL N)

36B - FRAME COVER (MODEL N)
Например: 47111-20C01
1
47111-20C01
OVER, FRAME RH (BLACK)
1
47111-20C01
OVER, FRAME RH (BLACK)
1
47110-21C30-12F
over, frame rh (blue)
1
47110-21C20-0FP
over, frame rh (silver)
1
47110-21C30-1MW
over, frame rh (red)
2
68130-20C30-K42
.tape set, rh
2
68130-20C30-K43
.tape set, rh
2
68130-20C30-K53
.tape set, rh
2
68130-20C30-K72
.tape set, rh
2
68130-20C30-K52
.tape set, rh
3
68131-20C40-K44
.emblem, rh
3
68131-20C40-H15
.emblem, rh
3
68131-20C40-K74
.emblem, rh
3
68181-32B00-0FP
.emblem, rh (silver)
4
47131-20C00
over,frame r
5
47211-20C01
OVER, FRAME LH (BLUE)
5
47210-21C20-33J
over, frame lh (black)
5
47210-21C30-12F
over, frame lh (blue)
5
47210-21C20-0FP
over, frame lh (silver)
5
47210-21C30-1MW
over, frame lh (red)
6
68140-20C30-K42
.tape set, lh
6
68140-20C30-K43
.tape set, lh
6
68140-20C30-K53
.tape set, lh
6
68140-20C30-K72
.tape set, lh
6
68140-20C30-K52
.tape set, lh
7
68141-20C40-K44
.emblem, lh
7
68141-20C40-H15
.emblem, lh
7
68141-20C40-K74
.emblem, lh
7
68181-32B00-0FP
.emblem, lh (silver)
8
47231-20C00
over frame l
9
09120-06005
Screw
10
09160-06129
Шайба,6.5X16X1
102 ₽/шт
11
09320-06501
Шайба
2 420 ₽/шт
12
09139-06030
Винт (6X16)
194 ₽/шт
13
09160-06054
Шайба
129 ₽/шт
14
09320-08509
Cushion(8X22X7)
210 ₽/шт
15
09180-06092
SPACER(6.2X8.3X6.1)
226 ₽/шт
16
09160-06109
Шайба
85 ₽/шт
17
09180-06283
Кольцо/шайба
162 ₽/шт
18
09180-06038
ВТУЛКА
1 020 ₽/шт
19
09320-09016
РЕЗИНКА
162 ₽/шт
20
47153-19C01
PLATE,FRAME COVER
395 ₽/шт
21
47161-20C00
ZITTING
22
09308-16006
Втулка
1 720 ₽/шт
23
47311-20C01
OVER, FRAME CENTER (GREEN)
23
47310-21C00-33J
over, frame center (black)
23
47310-21C00-12F
over, frame center (blue)
23
47310-21C00-1MW
over, frame center (red)
24
68271-34A00-13L
Emblem,suzuki
24
68271-34A01-20G
Emblem,"suzuki"
399 ₽/шт
24
68271-34A00-0FP
.emblem (silver)
25
09320-08527
Cushion
1 640 ₽/шт
26
02142-0610B
Винт держатель
85 ₽/шт
27
09169-06011
Пластина замка
759 ₽/шт
28
47321-20C00
over,frame rr.
29
94433-26B01
Cushion
30
02142-0616A
Болт
81 ₽/шт
31
09169-06011
Пластина замка
759 ₽/шт
