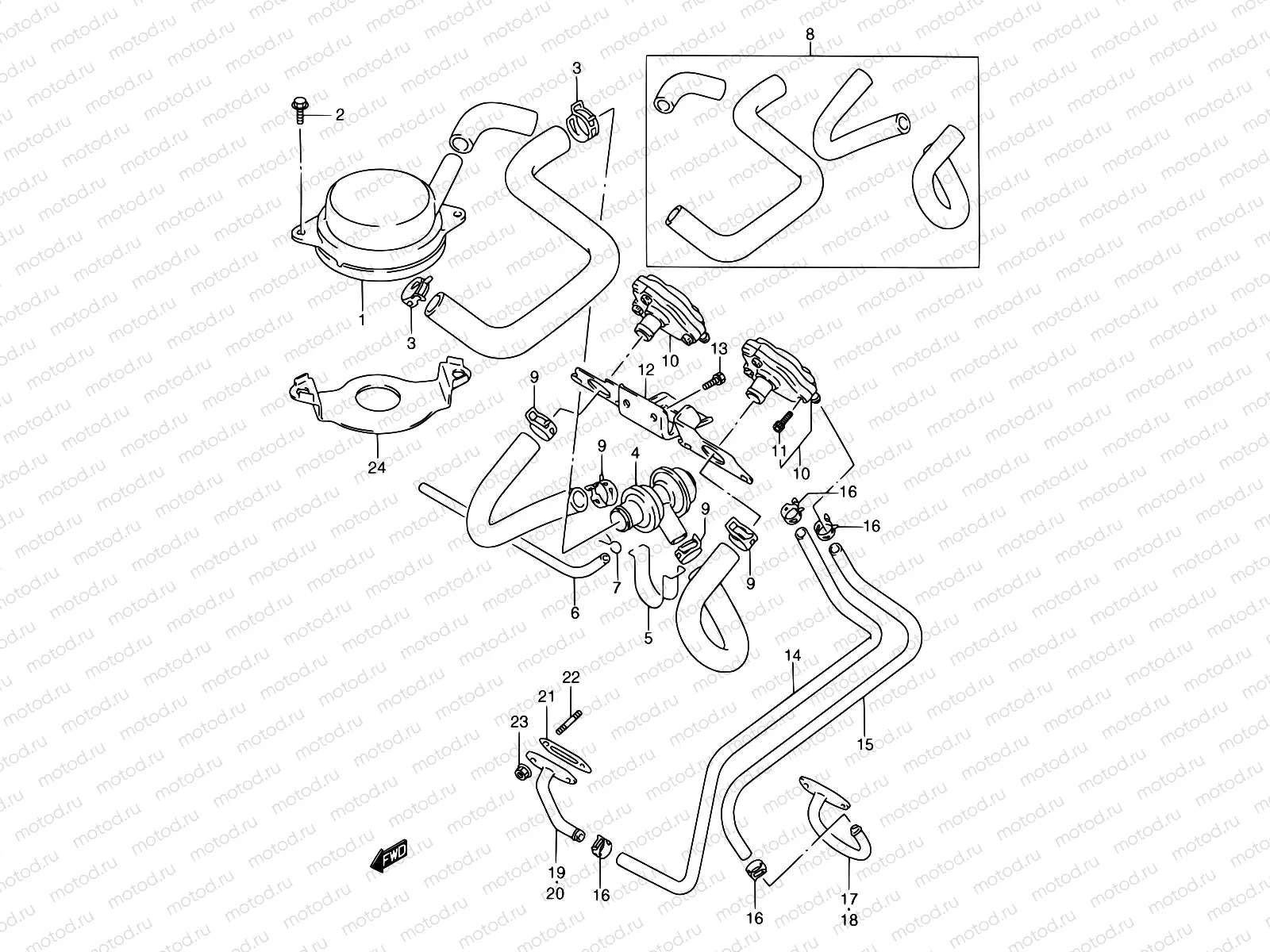

16 - SECOND AIR (E18,MODEL N E39)

16 - SECOND AIR (E18,MODEL N E39)
Например: 18700-17C03
1
18700-17C03
LEANER ASSY,2ND AIR
2
01580-06167
Болт
1 640 ₽/шт
3
09401-25406
ХОМУТ МАЛЫЙ
2 580 ₽/шт
4
18510-20C00
VALVE ASSY,AIR SWITCHING
5
18522-17C00
lamp, switching valve
6
09359-45855-600
Hose(4.5X8.5X300)
1 024 ₽/шт
7
09401-08409
CLIP
1 250 ₽/шт
8
18420-19810
Hose set, 2nd air no.2
9
09401-20405
ХОМУТ МАЛЫЙ
2 070 ₽/шт
10
18450-48B00
Valve assy, 2nd air reed
11
07130-05167
Болт
1 520 ₽/шт
12
18470-19C01
Bracket, reed valve
13
01570-06167
БОЛТ
72 ₽/шт
14
18445-20C00
Hose, 2nd air no.1 inside
15
18446-20C00
Hose, 2nd air no.1 outside
16
09401-13417
ХОМУТ МАЛЫЙ
170 ₽/шт
17
18410-20C00
Pipe,2nd air,no
18
18440-20C00
Pipe,2nd air,no
19
18420-20C00
Pipe, 2nd air,no.2
20
18430-20C00
Pipe, 2nd air,no.3
21
18441-17C11
GASKET,2ND AIR PIPE
1 020 ₽/шт
22
01421-0612A
Болт
1 170 ₽/шт
23
08319-31067
Гайка
153 ₽/шт
24
18761-41C00
Holder, 2nd air cleaner
