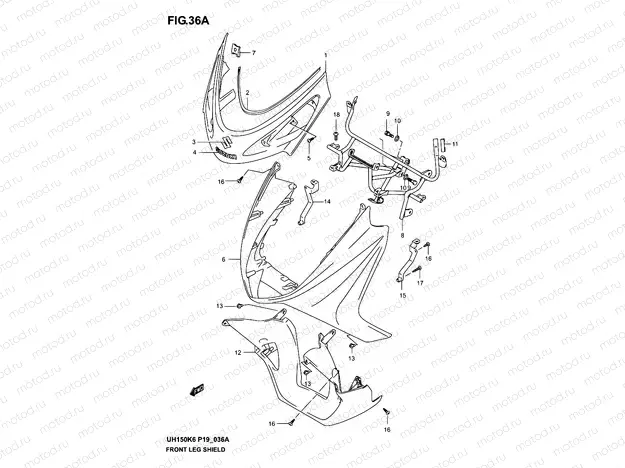

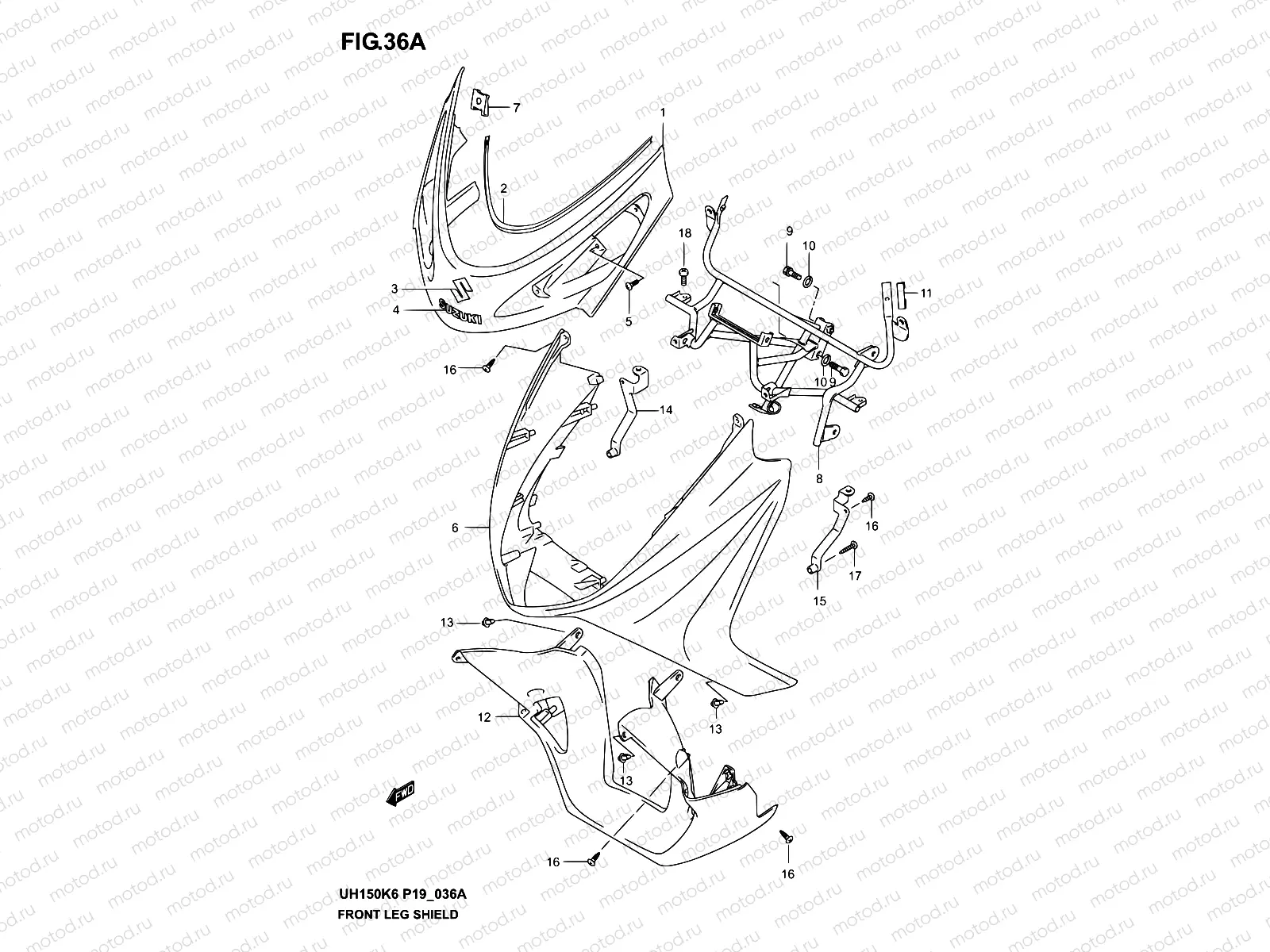

36A - FRONT LEG SHIELD (MODEL K3)

36A - FRONT LEG SHIELD (MODEL K3)

Например: 48131-49F00-Y7L

1

48131-49F00-Y7L

Cover front

1

48131-49F00-YD8

rontfairing

2

48132-49F00

Molding uh125

3

68641-49F00-M7P

Emblem s mark

3

68641-49F20-1ZZ

EMBLEM, S

4

68641-49F10-M7P

Emblem suzuki

4

68641-49F30-1ZZ

EMBLEM, SUZUKI

5

02142-0516B

Болт

85 ₽/шт

5

09689-05167

Vis

6

48111-49F00-NE2

Tablier intérieur

6

48111-49F00-Y7H

Shield, leg front (blue)

7

D91BL-4815A

Nut

8

48150-07E00-EE3

Brace leg shiel

9

01550-0816B

Болт крепёжный

97 ₽/шт

10

D8321-01085

Washer, spring

11

48167-C14F0-0J000

TAPE. WINDSCREEN

12

48137-49F00-26B

Shield

12

48137-49F10-YD8

SHIELD, LEG LOWER (SILVER)

13

09409-08308-5ES

CLIP(GRAY)

178 ₽/шт

14

48170-49F00-EE3

HALTER.FUSSRAUMVERSCH.VR.RE.

15

48180-49F00-EE3

HALTER.FUSSRAUMVERSCH.VR.LI.

16

03541-0516B

Болт

81 ₽/шт

17

D3111-05325

Vis

18

02112-3612A

Болт

1 250 ₽/шт
