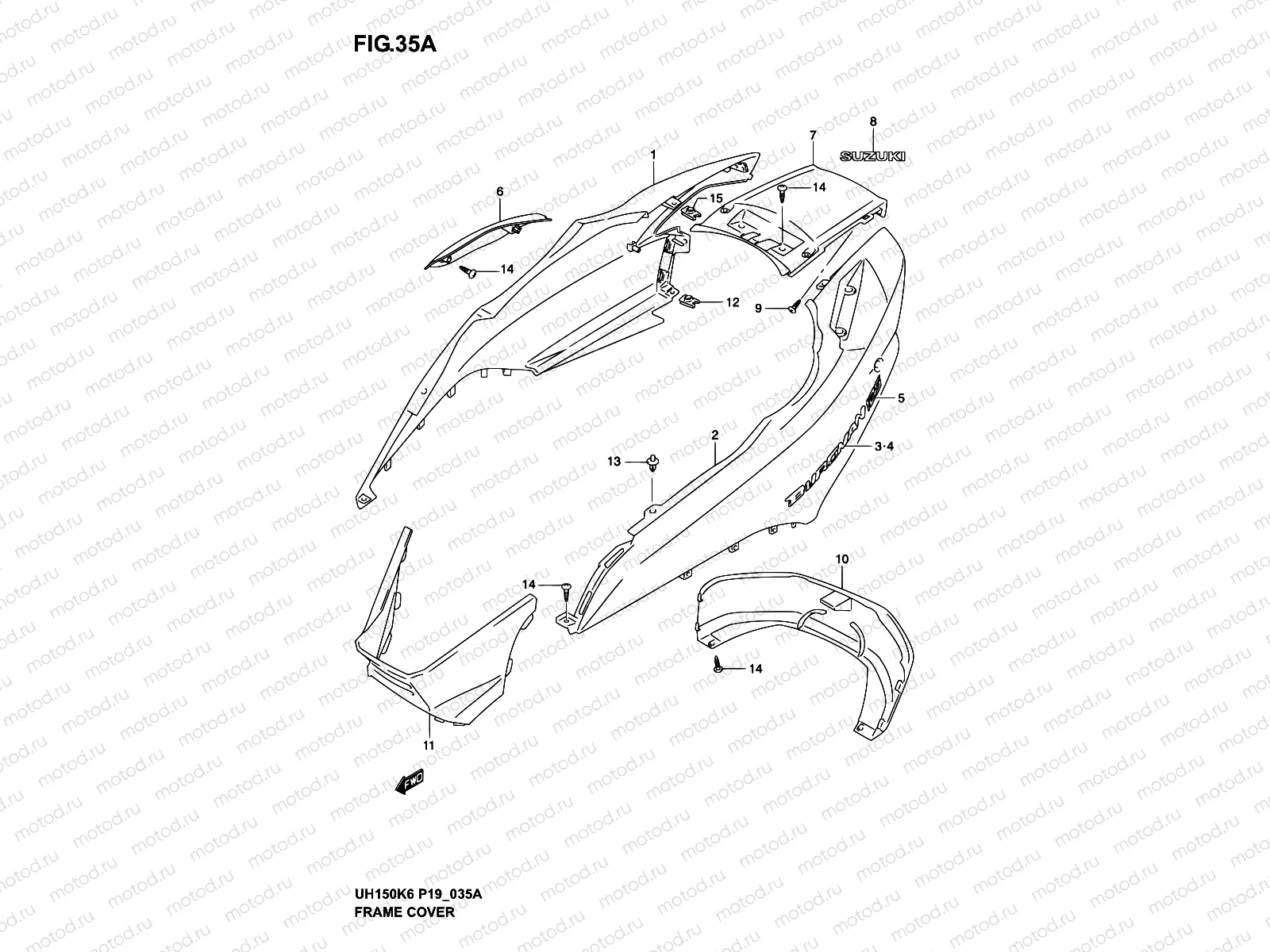

35A - FRAME COVER (MODEL K3)

35A - FRAME COVER (MODEL K3)

Например: 47111-49F00-NE2

1

47111-49F00-NE2

Cover,frame,r

1

47111-49F00-NE2

Cover,frame,r

1

47111-49F00-NE2

Cover,frame,r

1

47111-49F00-Y7G

COVER, FRAME RH (GREEN)

2

47211-49F00-YD8

rame cover

2

47211-49F00-NE2

COVER, FRAME LH (BLUE)

2

47211-49F00-NE2

COVER, FRAME LH (BLUE)

2

47211-49F00-Y7H

Cover frame,lh

3

68131-49F00

Embem

4

68141-49F00

Emblem frame

5

68131-49F20-E8C

mblem,frm cov.

6

47121-49F00-YD8

COVER, UPPER RH (SILVER)

6

47121-49F00-Y9H

SEITENDECKEL RE.O.UH125K2 GELB

6

47121-49F00-NE2

6

47121-49F00-Y7H

COVER, UPPER RH (BLUE)

7

47311-49F00-YD8

COVER, FRAME CENTER (SILVER)

7

47311-49F00-Y9H

ECKDECKEL MITTE. UH125K2 GELB

7

47311-49F00-YC2

HECKDECKEL MITTE. UH125K2 BLAU

7

47311-49F00-NE2

Cover uh125&150

8

68165-49F00-1ZY

3MBLEM. SUZUKI GRAU

8

68165-49F00-20G

EMBLEM, SUZUKI (GRAY)

9

03541-0516B

Болт

81 ₽/шт

10

47411-49F00-YD8

rame cover low

10

47411-49F00-Y9H

RAHMENVERSCH.UNT. UH125K2 GELB

10

47411-49F00-YC2

over uh125/k2&

10

47411-49F00-NE2

Cover uh125&150

10

47411-49F00-Y7H

rame cover low

11

47351-49F00-Y0J

Cover, frame uh

12

D91BL-4815A

Nut

13

09409-08308-5ES

CLIP(GRAY)

178 ₽/шт

14

03541-0516B

Болт

81 ₽/шт

15

D91BL-4815A

Nut
