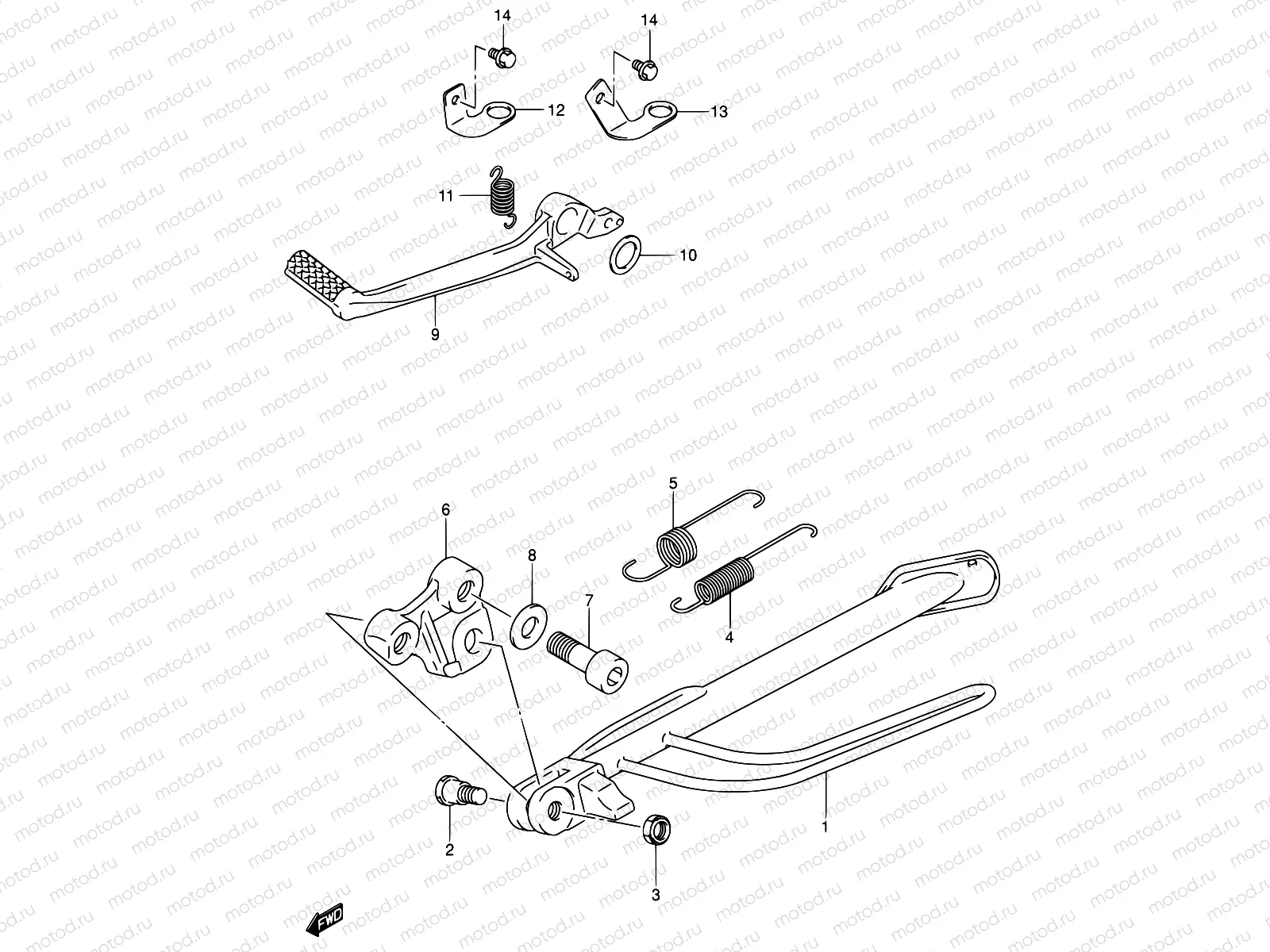

36 - STAND (MODEL K3)

36 - STAND (MODEL K3)

Например: 42310-16G00

1

42310-16G00

STAND,PROP

14 389 ₽/шт

1

42310-16G10

STAND,PROP

23 069 ₽/шт

2

09111-10027

BOLT(10X34)

210 ₽/шт

3

42321-03FK0

Гайка

221 ₽/шт

4

09443-14069

SPRING

323 ₽/шт

4

09443-14071

Spring

5

09443-19012

Пружина

291 ₽/шт

6

42330-16G00

BRACKET,PROP STAND

7 234 ₽/шт

7

09106-12003

BOLT(12X35)

226 ₽/шт

8

09160-12061

Шайба

1 060 ₽/шт

9

43111-16G00

Педаль тормоза

10 166 ₽/шт

10

09160-18022

Шайба

145 ₽/шт

11

09443-13031-XC0

Пружина

4 140 ₽/шт

11

09443-13035

SPRING

4 140 ₽/шт

12

43251-16G00

BRACKET,STOP LAMP SWITCH

653 ₽/шт

13

43251-16G10

Bracket,stop sw

14

01550-0612B

БОЛТ

81 ₽/шт
