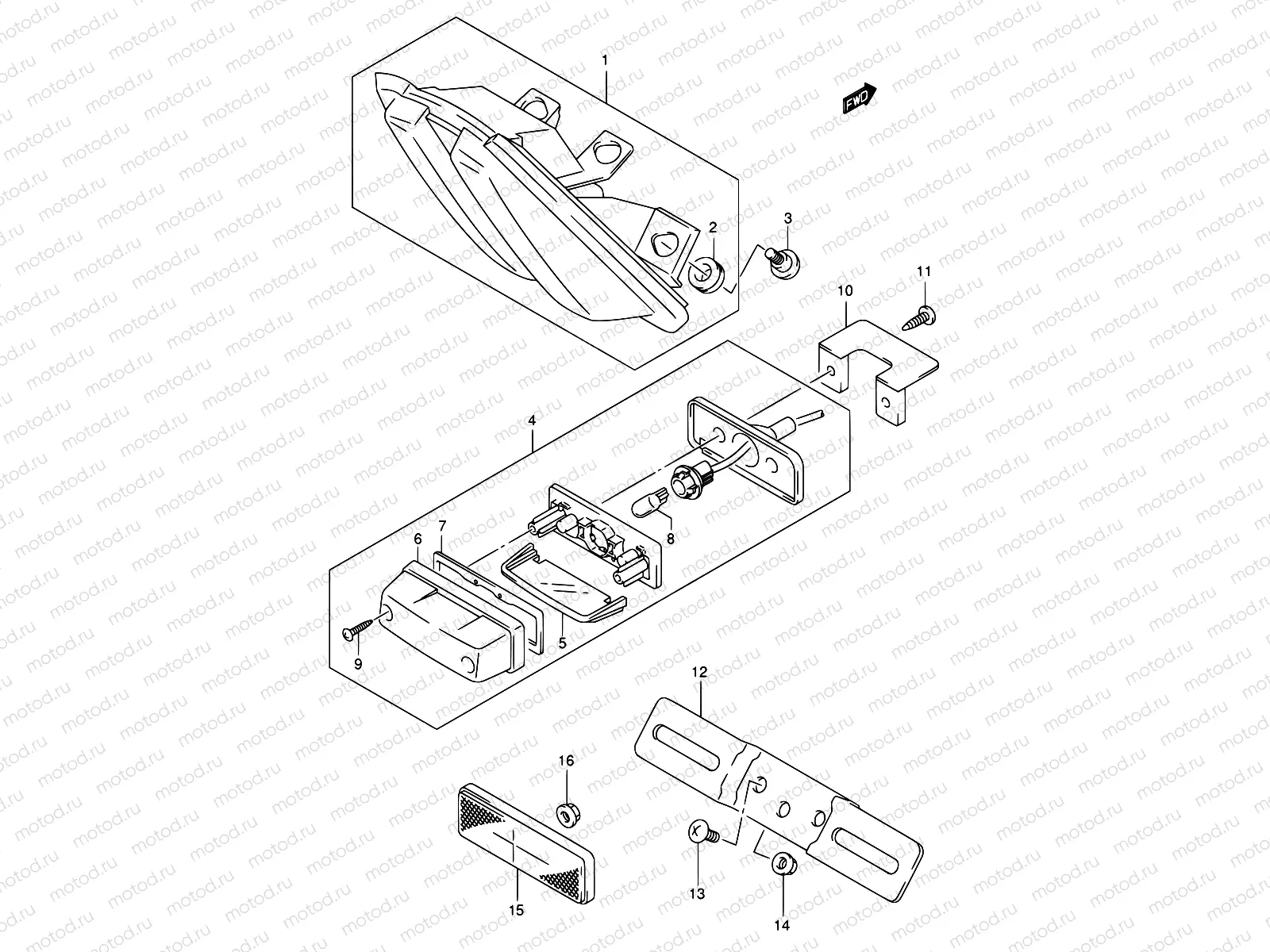

32B - TAIL LAMP (SV1000K3/K4/K5/U1K3/U1K4/U1K5/U2K3/U2K4/U2K5)

32B - TAIL LAMP (SV1000K3/K4/K5/U1K3/U1K4/U1K5/U2K3/U2K4/U2K5)

Например: 35710-16G01

1

35710-16G01

Стоп-сигнал

20 332 ₽/шт

2

09320-10070

Cushion,rear co

3

09139-06118

Винт

2 030 ₽/шт

4

35910-16G11

Фонарь подсветки номера

4 418 ₽/шт

5

35912-16G01

LENS

669 ₽/шт

6

35917-16G00

COVER

867 ₽/шт

7

35913-16G00

Прокладка

469 ₽/шт

8

09471-12216

ЛАМПА НАКАЛИВАНИЯ

459 ₽/шт

9

03211-0416A

Болт

85 ₽/шт

10

35926-16G00

BRACKET,LICENSE

786 ₽/шт

11

03541-0520B

Болт

1 330 ₽/шт

12

35927-00A10

Кронштейн

708 ₽/шт

13

02142-0616A

Болт

81 ₽/шт

14

08319-31067

Гайка

153 ₽/шт

15

35970-07F01

СВЕТООТРАЖАТЕЛЬ БАМПЕРА ЗАДНЕГО

1 173 ₽/шт

16

08316-1005B

Гайка

1 520 ₽/шт
