Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI RF 900 SUZUKI RF900R R (E02,E04,E18,E22,E24,E25,E34,E39) SUZUKI (VIN: GT73C, JS1GT73A) 36 - FOOTREST

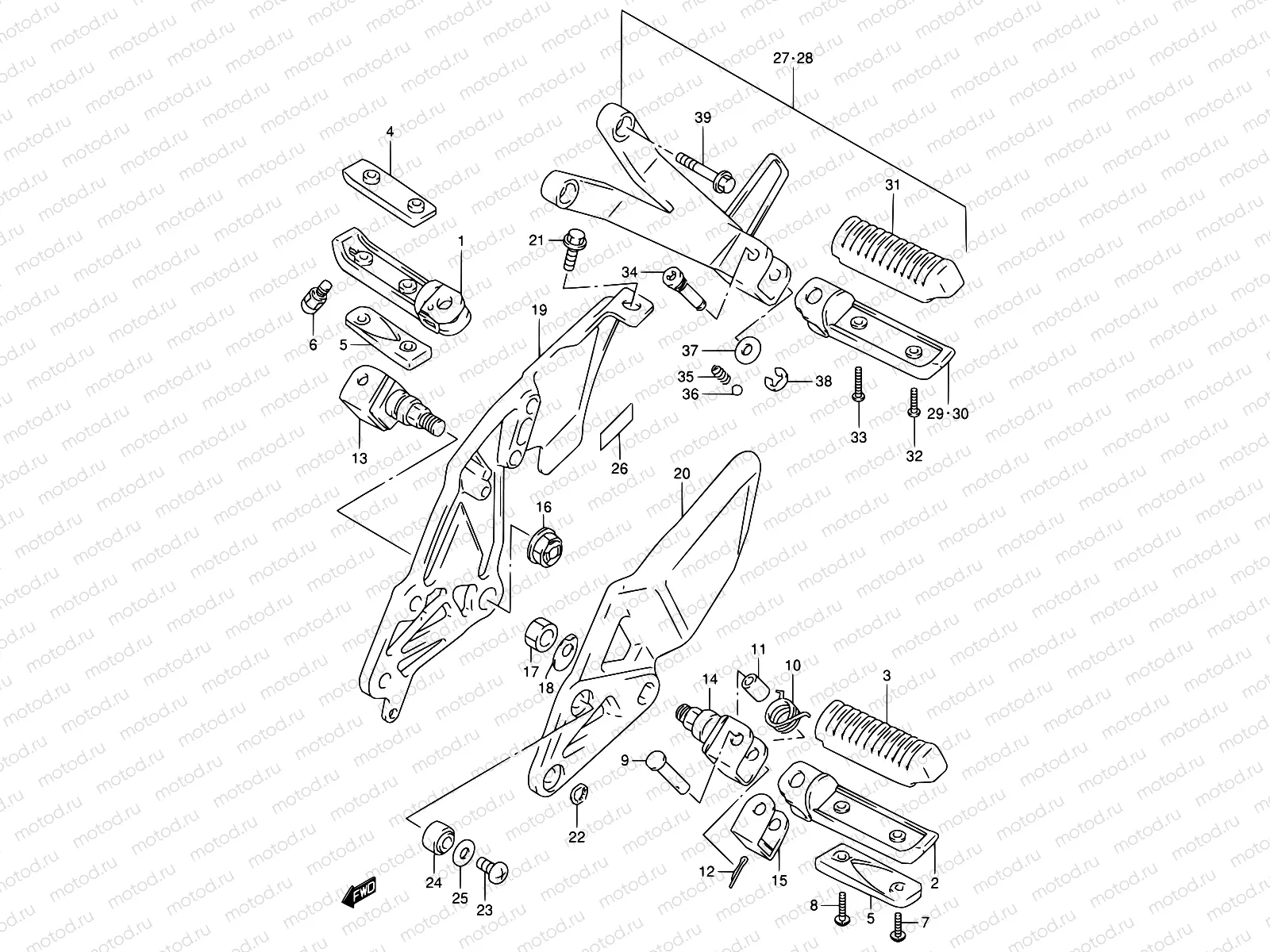

36 - FOOTREST

36 - FOOTREST

Например: 43511-31E00

1

43511-31E00

BAR,FR FOOTREST,R

6 400 ₽/шт

2

43521-40C00

BAR,FOOTREST,L

4 262 ₽/шт

3

43550-46E00

RUBBER,FOOTREST

5 572 ₽/шт

4

43534-46E00

BAR,FR FOOTREST NO.2

1 806 ₽/шт

5

43536-31E01

BALANCER,FR FOOTREST LWR

2 385 ₽/шт

6

43576-48B02

OLT BANK SENSOR

420 ₽/шт

7

02112-3530A

Болт

97 ₽/шт

8

02112-35353

Vis (Inner)

9

09200-08057

PIN

1 720 ₽/шт

10

09448-18022

Пружина

211 ₽/шт

11

09180-08149

Прокладка

258 ₽/шт

12

04111-2515A

Стопор

82 ₽/шт

13

43530-31E10

Holder,fr.footr

14

43540-31E00

Holder,fr.footr

15

43570-31E10

Cushion,footrst

16

08319-3112A

Гайка

211 ₽/шт

17

08310-0012A

Гайка

81 ₽/шт

18

43214-17C01

WASHER,FR FOOTREST

4 536 ₽/шт

19

43511-21E00

Brkt footrest,r

20

43521-21E00

BRACKET,FOOTREST,L

21 842 ₽/шт

21

01550-0820A

БОЛТ

102 ₽/шт

22

09164-08015

Шайба

162 ₽/шт

23

09106-08129

BOLT(8X25)

3 600 ₽/шт

24

09319-08025

Втулка

11 460 ₽/шт

25

09160-08130

Шайба

102 ₽/шт

26

32851-10D00

PROTECTOR(12X40)

348 ₽/шт

27

43600-31E00

Repose pieds (PILLION RH)

28

43700-31E00

Repose pieds (PILLION LH)

29

43610-40C00

BAR,PILLION FOOTREST,R

5 591 ₽/шт

30

43620-40C00

BAR,PILLION FOOTREST,L

5 591 ₽/шт

31

43550-40C11

RUBBER,FOOTREST

2 635 ₽/шт

32

02112-3516A

Болт

81 ₽/шт

33

02112-3520B

Болт

1 410 ₽/шт

34

43642-40C00

BOLT,PILLION FOOTREST

606 ₽/шт

35

09440-05003

ПРУЖИНА

113 ₽/шт

36

06111-07004

Шарик-защёлка №1

81 ₽/шт

37

09160-10126

Шайба

1 250 ₽/шт

38

08332-1106B

СТОПОРНОЕ КОЛЬЦО

102 ₽/шт

39

09106-08106

Болт

1 520 ₽/шт
