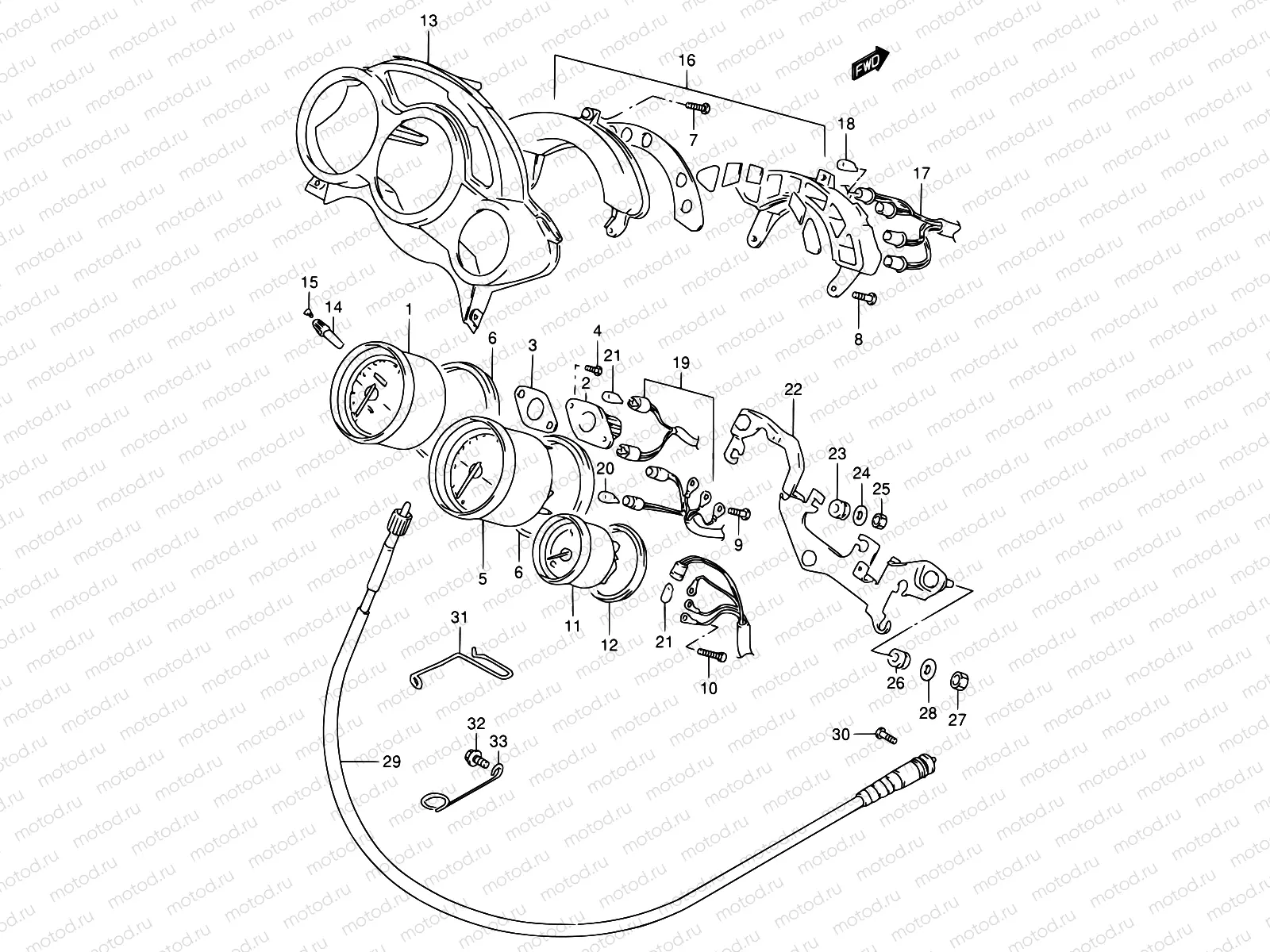

28 - SPEEDOMETER (MODEL R/S)

28 - SPEEDOMETER (MODEL R/S)

Например: 34120-31E20

1

34120-31E20

Speedometer,mls

1

34120-31E10

Speedo meter

2

34131-48B10

ox,meter gear

3

34132-17C00

Gasket

4

02112-7410B

SCREW

1 330 ₽/шт

5

34210-31E10

Tachometer

6

34191-21E10

CUSHION,METER

962 ₽/шт

7

34184-12B00

SCREW

125 ₽/шт

8

03511-0416A

Болт

900 ₽/шт

9

34149-19D00

Screw

10

34383-09400

SCREW(3X22)

172 ₽/шт

11

34420-31E10

TEMP METER

12

34191-21E20

Damper

13

34190-21E10

Hood,meter

14

34124-21E10

Рукоятка

540 ₽/шт

15

09139-02003

Болт

940 ₽/шт

16

36380-21E20

Box assy, pilot

16

36380-21E11

Box assy,pilot

17

36394-21E11

Cord assy,bulb

18

09471-12028

Лампочка

210 ₽/шт

19

34170-21E11

Cord assy

20

09471-12108

ЛАМПА НАКАЛИВАНИЯ

226 ₽/шт

21

09471-12108

ЛАМПА НАКАЛИВАНИЯ

226 ₽/шт

22

34950-21E12

Bracket,meter

23

34189-21E10

Cushion

24

09160-04022

Шайба

1 020 ₽/шт

25

08310-00047

Гайка

81 ₽/шт

26

09320-08501

САЙЛЕНТБЛОК

1 880 ₽/шт

27

09180-06248

Кольцо/шайба

179 ₽/шт

28

09159-06076

Гайка

136 ₽/шт

29

34910-31E01

Câble de compteur de vitesse

30

02112-0516B

Болт

1 090 ₽/шт

31

34938-21E0V

GUIDE,SPEEDOMETER CABLE NO.1

594 ₽/шт

32

01550-0612B

БОЛТ

81 ₽/шт

33

34939-17D00

GUIDE,SPEEDOMETER CABLE NO.3

523 ₽/шт
