Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI DL 1000 V-Strom SUZUKI DL1000A L4 V-Strom (E21) SUZUKI (VIN: JS1DD111) 36 - FOOTREST

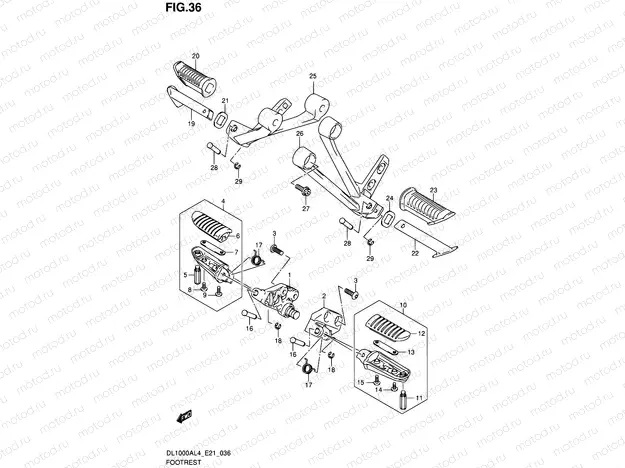

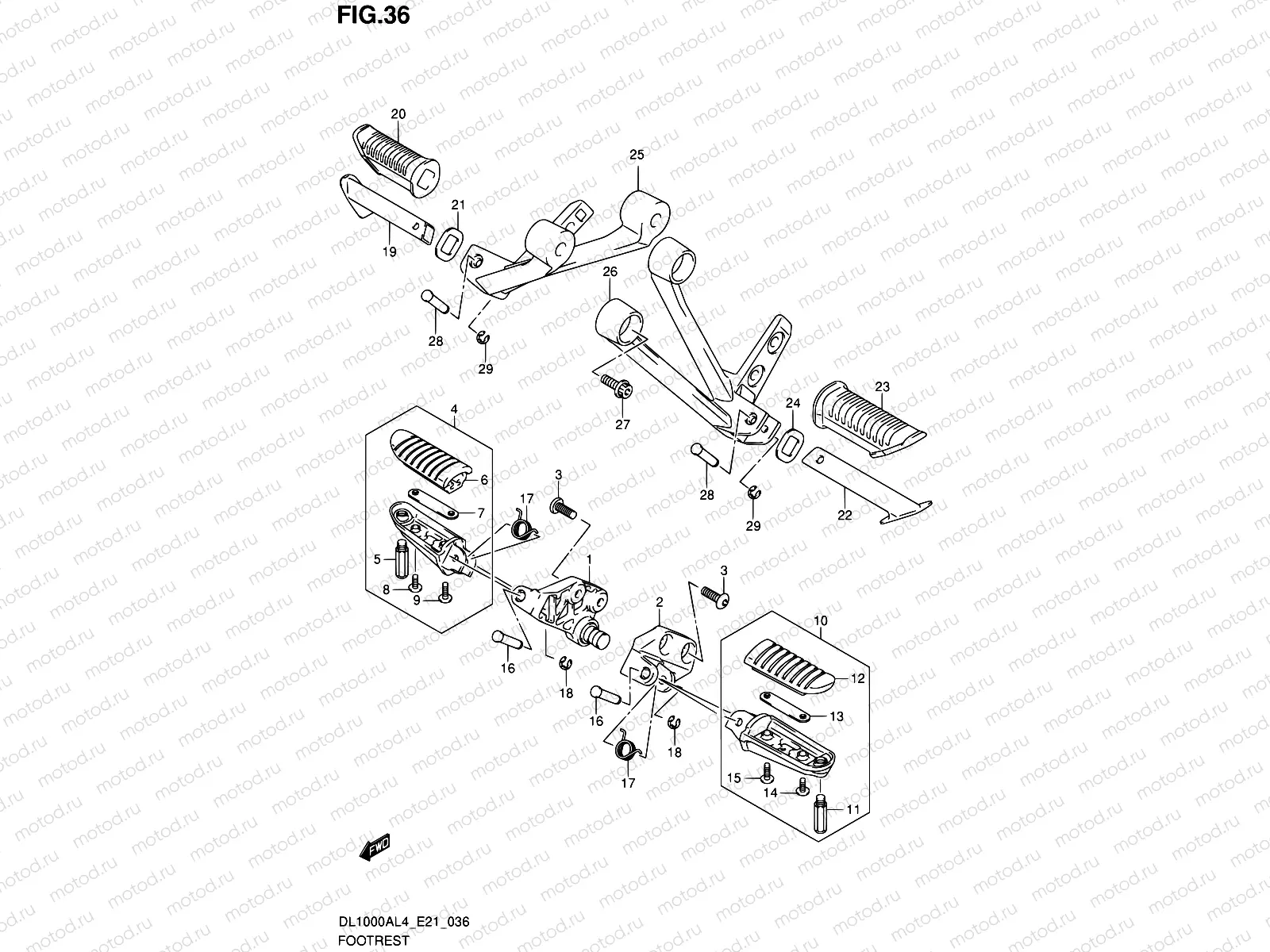

36 - FOOTREST

36 - FOOTREST

Например: 43510-06G10-YAP

1

43510-06G10-YAP

Bracket,fr Footrest,r

5 865 ₽/шт

2

43521-06G10-YAP

Bracket,fr Footrest,l

5 185 ₽/шт

3

09106-08150

Болт

178 ₽/шт

4

43501-31J00

FOOTREST ASSY,FRONT,R

8 755 ₽/шт

5

43576-31J00

SENSOR,FOOTREST

618 ₽/шт

6

43551-06G00

RUBBER,FOOTREST

678 ₽/шт

7

43552-06G00

PLATE,FR FOOTREST RUBBER

637 ₽/шт

8

02142-0516B

Болт

85 ₽/шт

9

02142-0520A

ШАЙБА

81 ₽/шт

10

43502-31J00

FOOTREST ASSY,FRONT,L

6 843 ₽/шт

11

43576-31J00

SENSOR,FOOTREST

618 ₽/шт

12

43551-06G00

RUBBER,FOOTREST

678 ₽/шт

13

43552-06G00

PLATE,FR FOOTREST RUBBER

637 ₽/шт

14

02142-0516B

Болт

85 ₽/шт

15

02142-0520A

ШАЙБА

81 ₽/шт

16

09208-08016

Стопор

178 ₽/шт

17

09448-18022

Пружина

211 ₽/шт

18

08332-1106B

СТОПОРНОЕ КОЛЬЦО

102 ₽/шт

19

43610-34A40

Bar,rr footrest

20

43612-33G30

Rubber,pillion Footrest

765 ₽/шт

21

43631-31J00

WASHER

301 ₽/шт

22

43710-34A40

Bar comp,pillio

23

43612-33G30

Rubber,pillion Footrest

765 ₽/шт

24

43631-34A01

WASHER,FOOTREST RUBBER

170 ₽/шт

25

43811-31J00-YD8

BRACKET,PILLION FOOTREST,R

9 775 ₽/шт

26

43821-31J00-YD8

BRACKET,PILLION FOOTREST,L

10 115 ₽/шт

27

09106-08193

BOLT(8X30)

1 880 ₽/шт

28

09208-06007

PIN

2 110 ₽/шт

29

08332-1104B

СТОПОРНОЕ КОЛЬЦО

282 ₽/шт
