Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI DL 1000 V-Strom SUZUKI DL1000A L4 V-Strom (E21) SUZUKI (VIN: JS1DD111) 3 - CYLINDER HEAD (REAR)

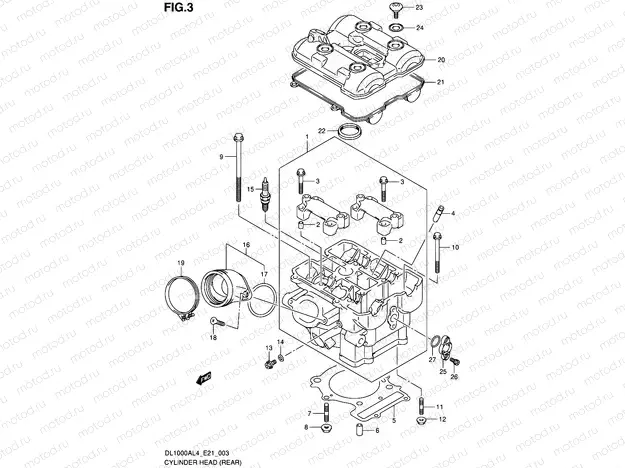

3 - CYLINDER HEAD (REAR)

3 - CYLINDER HEAD (REAR)

Например: 11100-31J00

1

11100-31J00

HEAD ASSY,CYLINDER FRONT

85 646 ₽/шт

2

09206-08001

Стопор

170 ₽/шт

3

09103-06266

BOLT(6X40)

1 330 ₽/шт

4

11115-32E70

Направляющая клапана

2 053 ₽/шт

5

11141-31J00

GASKET,CYLINDER HEAD

2 835 ₽/шт

6

04211-13189

ШТИФТ

129 ₽/шт

7

09108-08143

BOLT,STUD

272 ₽/шт

8

08316-1008A

Гайка вала

81 ₽/шт

9

11117-33H00

BOLT,CYLINDER HEAD(L:165)

911 ₽/шт

10

09103-06220

BOLT(6X60)

1 370 ₽/шт

11

09108-06096

Болт

1 450 ₽/шт

12

08316-1006A

Гайка

85 ₽/шт

13

09103-06222

BOLT(6X12)

119 ₽/шт

14

09168-06023

ПРОКЛАДКА

162 ₽/шт

15

09482-00635

СВЕЧА ЗАЖИГАНИЯ

3 400 ₽/шт

16

13102-31J00

PIPE ASSY,INTAKE REAR

4 731 ₽/шт

17

09280-55005

O RING(D:2.4,ID:55.6)

291 ₽/шт

18

02122-0616B

Болт

85 ₽/шт

19

13170-40H01

CLAMP,INTAKE PIPE

473 ₽/шт

20

11172-31J00

COVER,CYLINDER HEAD REAR

19 315 ₽/шт

21

11173-02F00

Прокладка

2 907 ₽/шт

22

11178-17E00

Прокладка

501 ₽/шт

23

09106-07021

БОЛТ

275 ₽/шт

24

11191-27E00

Шайба

371 ₽/шт

25

11134-31J00

COVER,CYL HEAD NO.2

1 505 ₽/шт

26

09106-06075

БОЛТ

1 450 ₽/шт

27

09280-19005

O RING(D:2.4,ID:19)

1 170 ₽/шт
