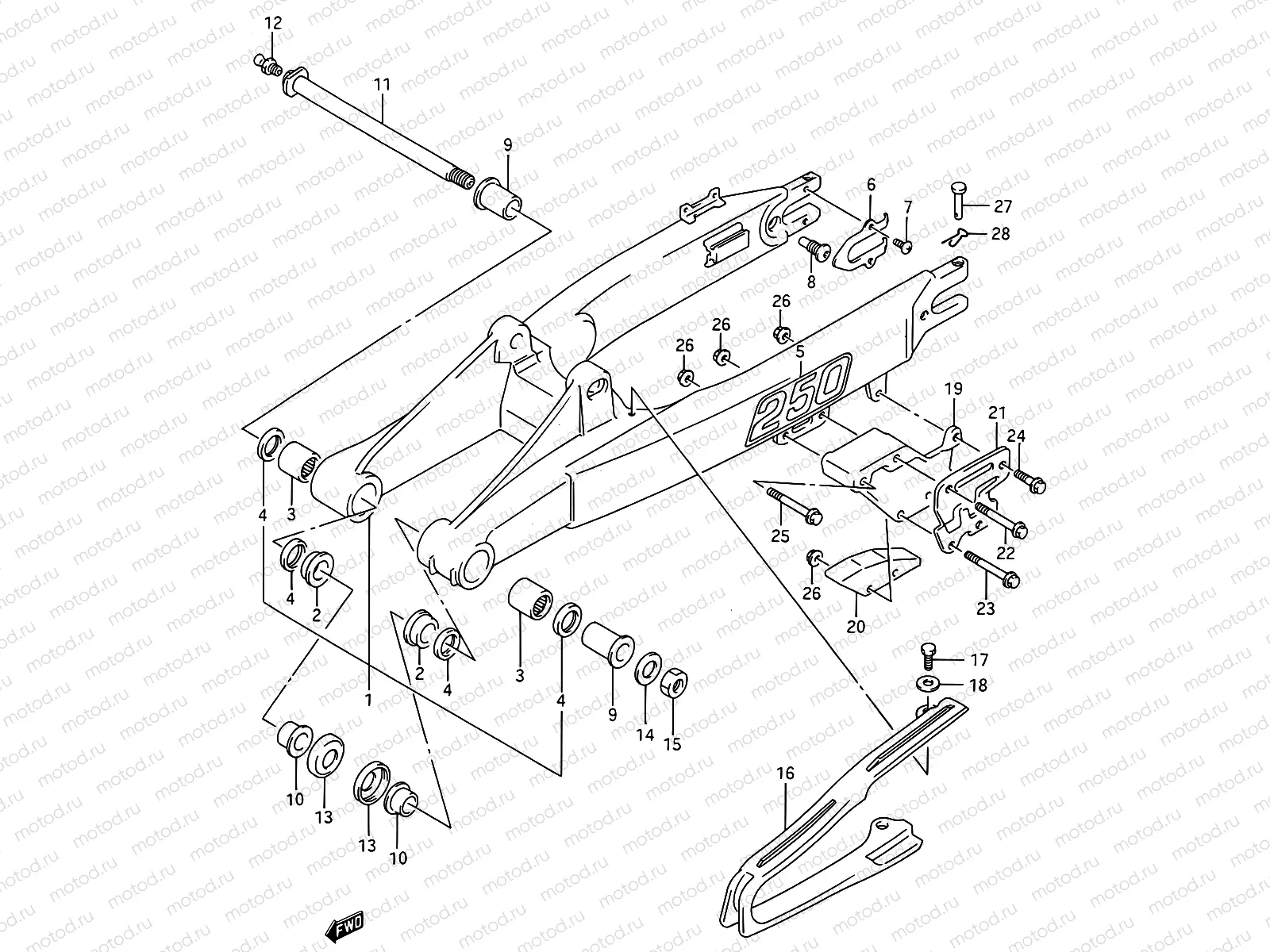

35A - REAR SWINGING ARM (MODEL M/N)

35A - REAR SWINGING ARM (MODEL M/N)

Например: 61000-05D10

1

61000-05D10

Swinging arm assy, rear

2

61261-28C00

BUSHING,SWGARM PIVOT

5 045 ₽/шт

3

09263-22017

BEARING(22X29X30)

1 308 ₽/шт

4

09285-22006

Seal,oil

226 ₽/шт

5

68381-28C10-12R

EMBLEM,SWINGINGARM

3 655 ₽/шт

6

61128-05D00

.plate, inner

7

09125-05072-XC0

SCREW(5X8)

1 370 ₽/шт

8

09139-10001

Vis

9

61251-05D00

SPACER,RR SWGARM PIVOT

3 882 ₽/шт

10

61252-28C00

SPACER,SWGARM PIVOT INNER

3 400 ₽/шт

11

61200-05811

Shaft, rr swng

12

08351-11002

Ниппель

2 390 ₽/шт

13

61262-28C11

over,dust

617 ₽/шт

14

08322-01167

Шайба

85 ₽/шт

15

09159-16007

ШАЙБА

7 740 ₽/шт

16

61273-27C01

BUFFER,CHAIN TOUCH DEFENSE

7 905 ₽/шт

17

01500-06167

БОЛТ

85 ₽/шт

18

09169-06057

Шайба

215 ₽/шт

19

61341-27C00

Guide,chain

20

61348-27C20

DEFENSE,CHAIN GUIDE

4 488 ₽/шт

21

61342-27C00

Plate,chain gui

22

01547-06607

Болт

1 640 ₽/шт

23

01547-06507

Болт крышки головки цилиндров №2

97 ₽/шт

24

01547-06307

Болт

102 ₽/шт

25

01547-06557

БОЛТ

97 ₽/шт

26

08319-31067

Гайка

153 ₽/шт

27

09200-06065

Pin

28

09385-06012

СТЕРЖЕНЬ

129 ₽/шт
