Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI RMX 250 SUZUKI RMX250 N (E03,E28,E33) SUZUKI (VIN: JS1PJ11A) 20 - FRAME - SEAT (MODEL K/L/M/N)

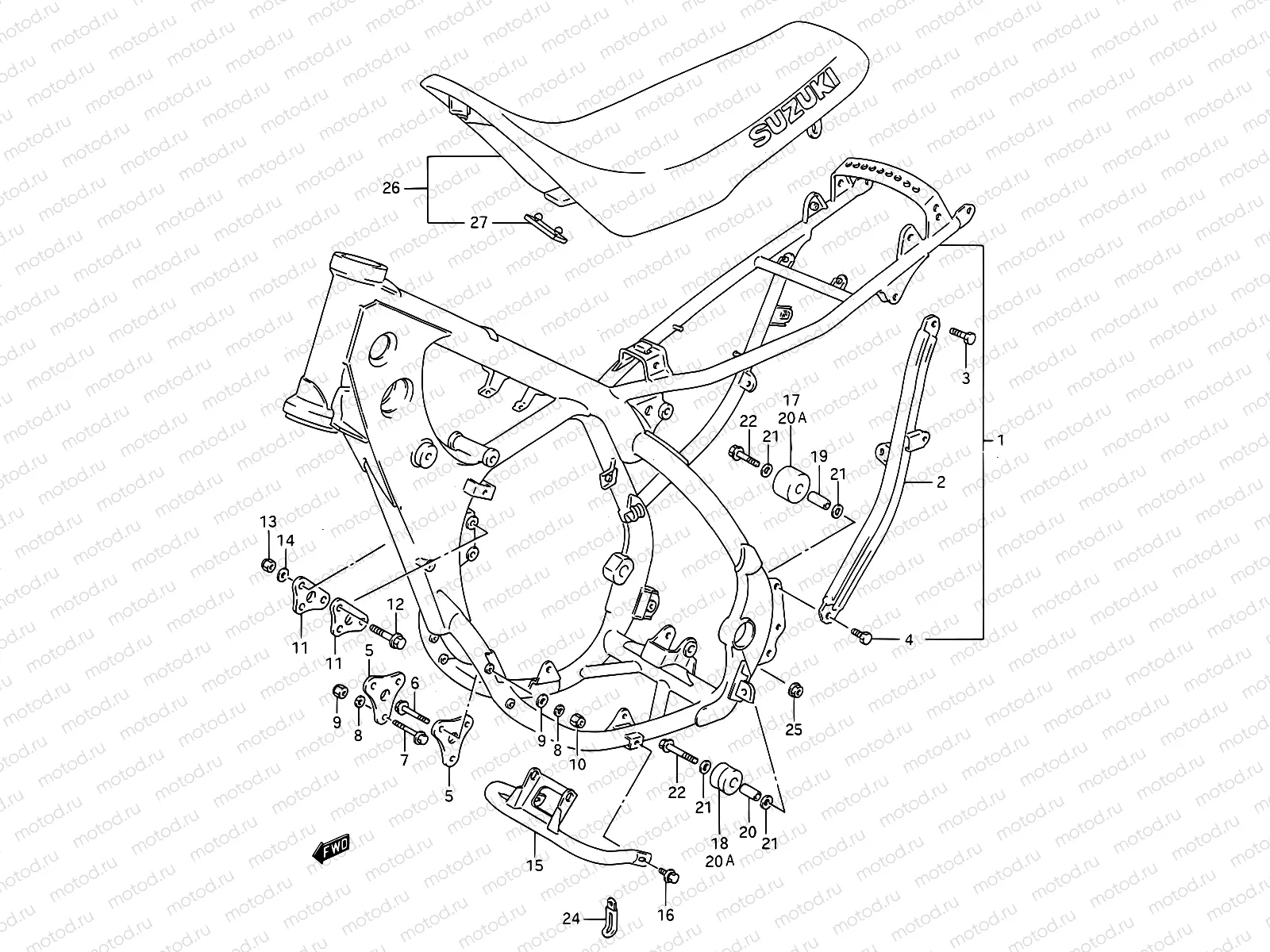

20 - FRAME - SEAT (MODEL K/L/M/N)

20 - FRAME - SEAT (MODEL K/L/M/N)

Например: 41100-05890-19F

1

41100-05890-19F

rame set (blue)

2

41670-43D00

Tube,frame lh

3

01500-08257

Болт

102 ₽/шт

4

01500-0816B

Болт

85 ₽/шт

5

41991-28C00

PLATE,ENG MTG FR

3 421 ₽/шт

6

09103-08339

BOLT(8X55)

194 ₽/шт

7

09103-08265

Bolt, front lower rh

10

09159-08034

Гайка

162 ₽/шт

11

41993-28C00

Plate,eng mnt u

12

09103-08043

БОЛТ

114 ₽/шт

13

09159-08034

Гайка

162 ₽/шт

15

42510-05D30-19F

Protector, engine (blue)

16

09103-08253

BOLT(8X14)

162 ₽/шт

20

43910-27C11

ROLLER,CHAIN

4 262 ₽/шт

21

08211-08121

Шайба

1 170 ₽/шт

22

09103-08083

BOLT(8X41)

179 ₽/шт

23

09103-08043

БОЛТ

114 ₽/шт

24

09404-08420

Струбцина L:137

221 ₽/шт

25

08319-31087

Гайка

178 ₽/шт

26

45100-27C10-6LK

Seat assy

27

09321-08009

CUSHION

1 840 ₽/шт
