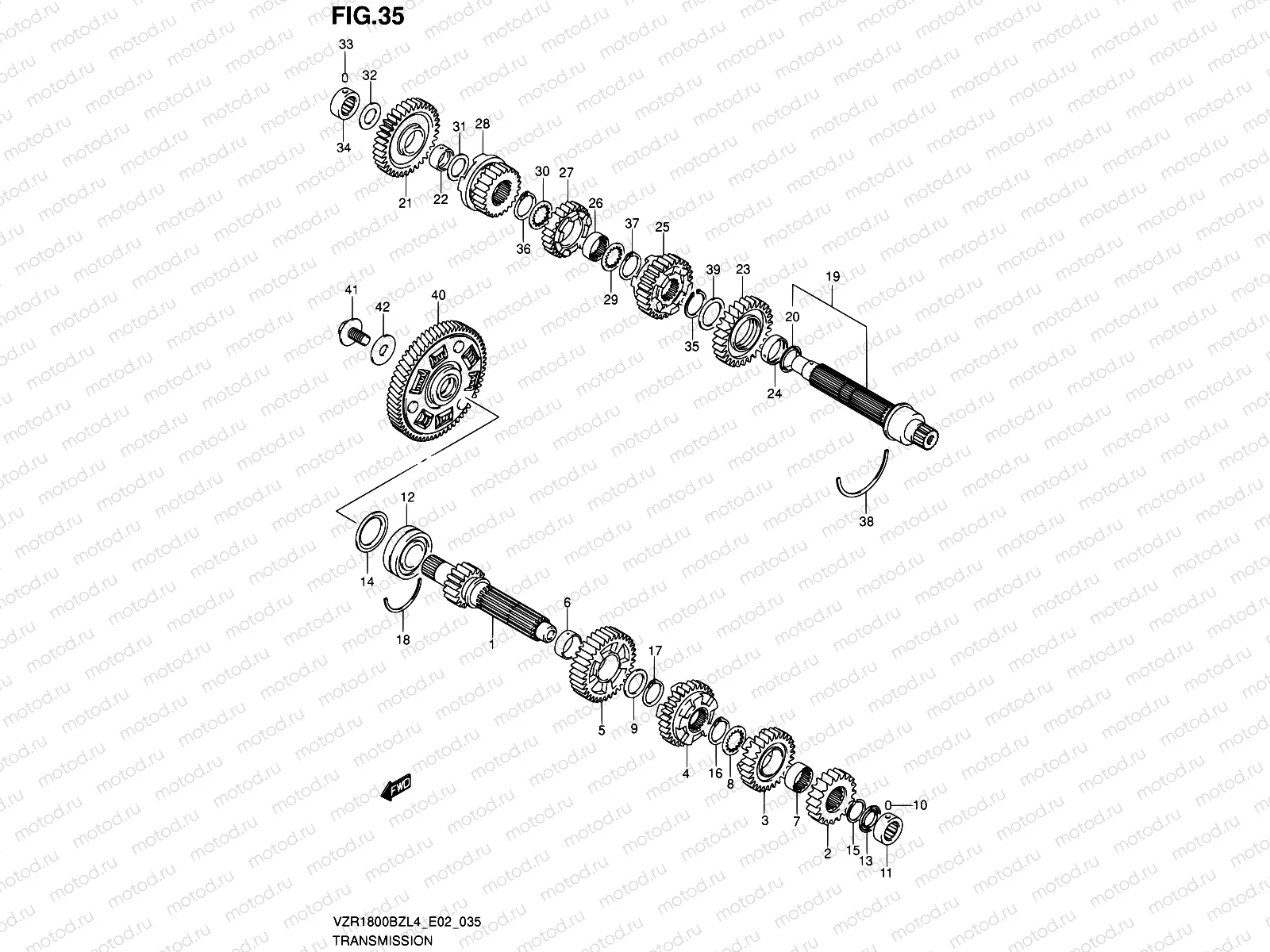

35 - TRANSMISSION (VZR1800BZUFL4 E19)

35 - TRANSMISSION (VZR1800BZUFL4 E19)

Например: 24121-48G10

1

24121-48G10

SHAFT,COUNTER

17 048 ₽/шт

2

24221-48G00

EAR,2ND DRIVE

6 826 ₽/шт

3

24231-48G10

EAR,3RD DRIVE

10 578 ₽/шт

4

24241-48G10

EAR,4TH DRIVE

14 939 ₽/шт

5

24251-48G00

EAR,5TH DRIVE

12 070 ₽/шт

6

24252-24F10

BUSH,5TH DRIVE GEAR

2 244 ₽/шт

7

24262-24F10

BUSH,6TH DRIVE GEAR

2 244 ₽/шт

8

09167-27003

ШАЙБА

255 ₽/шт

9

09181-27014

SHIM(27X36X2.5)

306 ₽/шт

10

09261-06003

ШТИФТ

119 ₽/шт

11

09263-20087

BEARING(20X34X13.5)

2 210 ₽/шт

12

09267-25012

BEARING(25X62X25.4)

6 800 ₽/шт

13

09285-20006

Сальник

598 ₽/шт

14

09285-34011

SEAL,OIL(34X55.5X4)

1 260 ₽/шт

15

09380-27004

КЛИПС

187 ₽/шт

16

09380-27006

КЛИПС

187 ₽/шт

17

09380-27006

КЛИПС

187 ₽/шт

18

09390-62012

C RING

4 460 ₽/шт

19

24130-48G01

Вал ведущий

20 740 ₽/шт

20

24136-48G01

RING,DRIVE SHAFT FRICTION

2 019 ₽/шт

21

24311-48G00

EAR,1ST DRIVEN

9 605 ₽/шт

22

24312-24F10

BUSH,1ST DRIVEN GEAR

2 244 ₽/шт

23

24321-48G10

EAR,2ND DRIVEN

10 540 ₽/шт

24

24322-48G00

ВТУЛКА ТРАНСМИССИИ

2 338 ₽/шт

25

24331-48G10

EAR,3RD DRIVEN

9 852 ₽/шт

26

24332-24F10

ВТУЛКА ТРАНСМИССИИ

2 244 ₽/шт

27

24341-48G00

EAR,4TH DRIVEN

9 945 ₽/шт

28

24351-48G00

ШЕСТЕРНЯ КПП

10 831 ₽/шт

29

09167-30008

ШАЙБА

281 ₽/шт

30

09167-30008

ШАЙБА

281 ₽/шт

31

09181-20251

Шайба (T:1.0)

172 ₽/шт

32

09181-24005

ШАЙБА

204 ₽/шт

33

09261-06003

ШТИФТ

119 ₽/шт

34

09263-20087

BEARING(20X34X13.5)

2 210 ₽/шт

35

09380-30009

КЛИПС

204 ₽/шт

36

09380-30009

КЛИПС

204 ₽/шт

37

09380-30009

КЛИПС

204 ₽/шт

38

09390-80004

C RING

5 630 ₽/шт

39

08211-30403

ШАЙБА ФОРСУНКИ

2 030 ₽/шт

40

21200-22840

GEAR ASSY,PRI DRIVEN

38 709 ₽/шт

41

09103-12084

BOLT(12X24)

4 380 ₽/шт

42

09160-12045

WASHER(12X35X2)

2 420 ₽/шт
