Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VZR 1800 Intruder M1800R / Boulevard M109R SUZUKI VZR1800BZUF L4 Intruder M1800R / Boulevard M109R (E19) SUZUKI 12 - CAM CHAIN

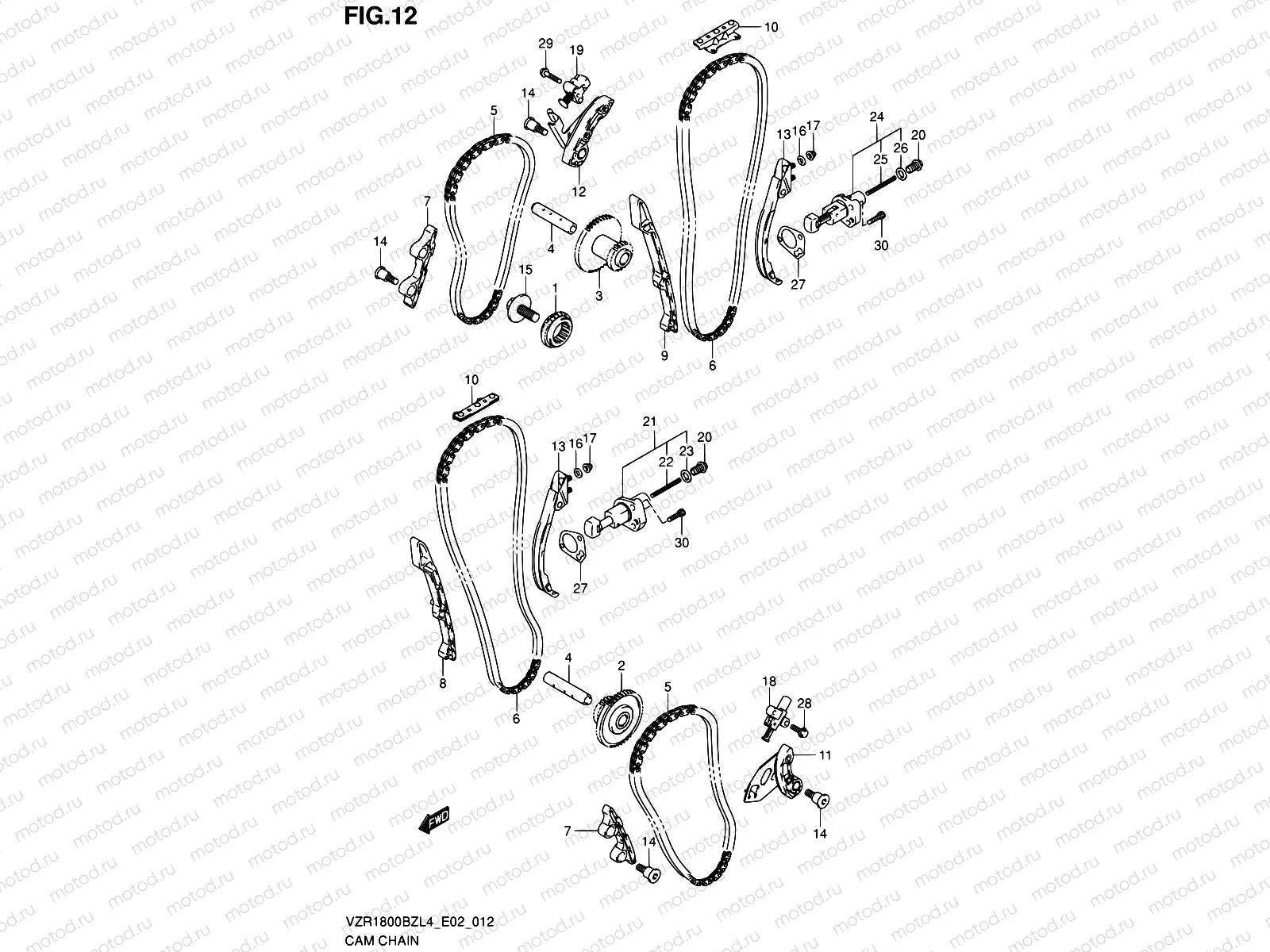

12 - CAM CHAIN

12 - CAM CHAIN

Например: 12731-48G00

1

12731-48G00

SPROCKET,CAM CHAIN DRIVE,R

3 734 ₽/шт

2

12751-48G00

SPROCKET,CAM CHAIN IDLER FR

12 004 ₽/шт

3

12752-48G00

SPROCKET,CAM CHAIN IDLER RR

12 004 ₽/шт

4

12755-48G00

SHAFT,IDLER

2 639 ₽/шт

5

12761-48G00

CHAIN,CAMSHAFT DRIVE NO.1

3 570 ₽/шт

6

12762-48G00

CHAIN,CAMSHAFT DRIVE NO.2

4 590 ₽/шт

7

12771-48G00

UIDE,CAM CHAIN NO.1

1 088 ₽/шт

8

12772-48G00

UIDE,CAM CHAIN NO.2 FR

2 125 ₽/шт

9

12774-48G00

UIDE,CAM CHAIN NO.2 RR

2 125 ₽/шт

10

12773-48G00

UIDE,CAM CHAIN NO.3

1 947 ₽/шт

11

12811-48G00

TENSIONER ASSY,CAM CH NO.1,FR

6 056 ₽/шт

12

12813-48G00

TENSIONER ASSY,CAM CH NO.1,RR

6 056 ₽/шт

13

12814-48G00

Tensioner comp,

14

12812-31G00-A05

Vis

15

09103-12013

BOLT(12X28)

4 260 ₽/шт

16

09168-06023

ПРОКЛАДКА

162 ₽/шт

17

08313-2006A

Гайка

337 ₽/шт

18

12831-48G00

ADJUSTER ASSY,TNSN NO.1 FR

8 055 ₽/шт

19

12832-48G00

ADJUSTER ASSY,TNSN NO.1 RR

8 837 ₽/шт

20

12833-17G00

PLUG,TENSIONER ADJUSTER

374 ₽/шт

21

12834-48G00

Регулятор натяжения

13 005 ₽/шт

22

12831-35F00

Пружина

238 ₽/шт

23

12837-24F10

Прокладка

289 ₽/шт

24

12835-48G00

ADJUSTER ASSY,TNSN NO.2 REAR

13 005 ₽/шт

25

12831-35F00

Пружина

238 ₽/шт

26

12837-24F10

Прокладка

289 ₽/шт

27

12837-27G00-000

Прокладка

307 ₽/шт

28

01550-0620A

Болт

81 ₽/шт

29

01550-0630A

БОЛТ

102 ₽/шт

30

07130-0625A

Болт

97 ₽/шт
