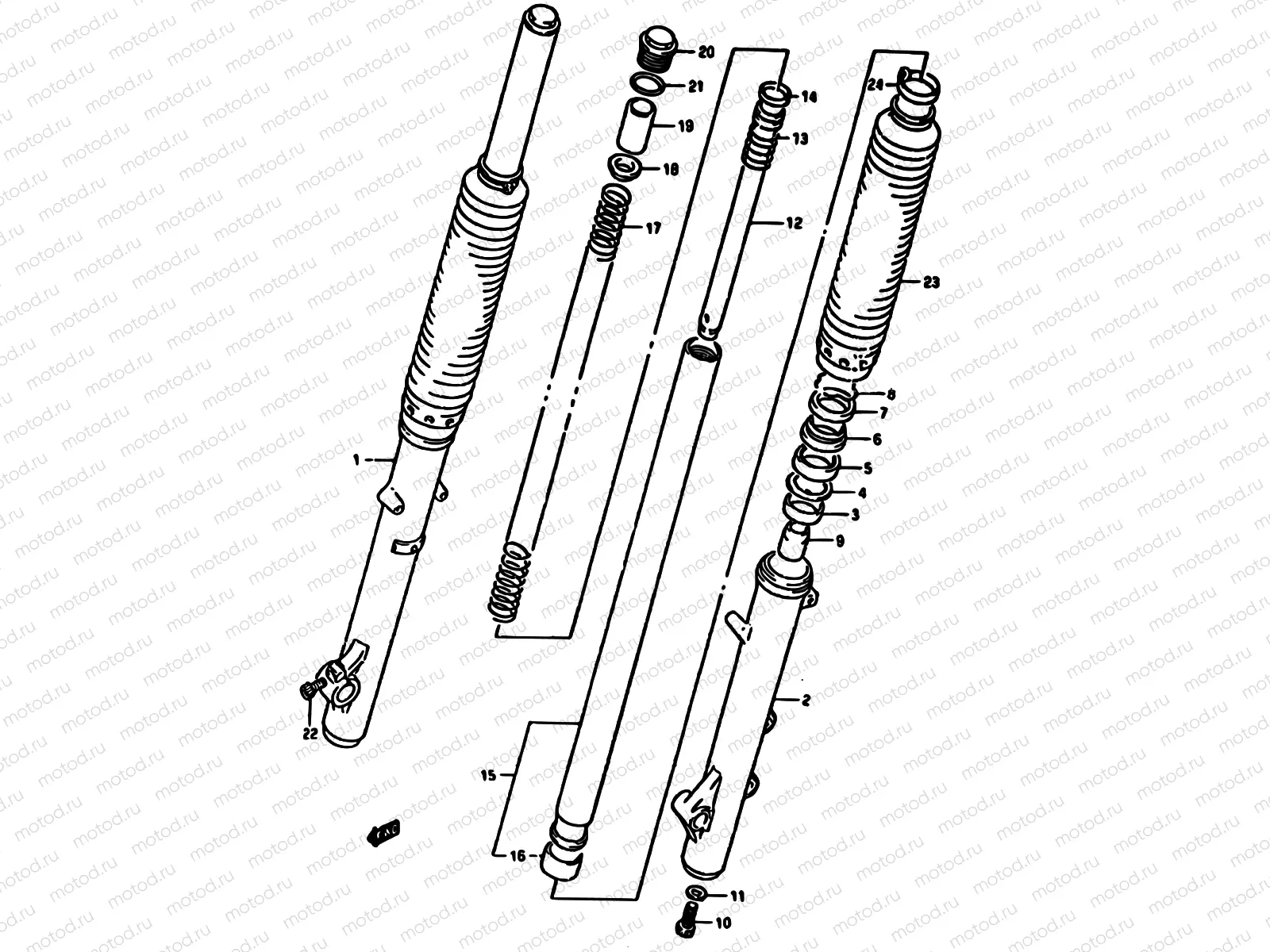

35 - FRONT FORK

35 - FRONT FORK
Например: 51130-12D10
1
51130-12D10
Tube,outer rh
2
51140-12D10
Tube,fork lh ou
3
51167-26E10
Металическая вставка
765 ₽/шт
4
51158-05A00
Шайба
299 ₽/шт
5
51153-44B00
Сальник
2 975 ₽/шт
6
51173-44B00
SEAL,DUST
2 380 ₽/шт
7
51158-44B00
Шайба
399 ₽/шт
8
51156-49440
RING,OIL SEAL STOPPER
204 ₽/шт
9
51195-12D10
.piece,oil lock
10
51104-12E00
Damper assy,lh
10
51103-12E00
Damper assy,rh
10
51147-14200
Vis
11
51148-14200
GASKET
176 ₽/шт
12
51146-12E00
.cylinder
13
51177-12D00
.spring
14
51196-24A00
RING,FR FORK PISTON
821 ₽/шт
15
51110-12D10
Tube,inner
16
51121-26E10
PISTON
1 846 ₽/шт
17
51171-12E00
.spring,main
18
51172-12D00
.guide,spring
19
51176-12D00
.spacer
20
51351-10D00
CAP,FORK
3 675 ₽/шт
21
09280-32001
O RING(D:3.5,ID:31.7)
275 ₽/шт
22
51138-44B00
OLT,SOCKET HEAD(8X22)
235 ₽/шт
23
51571-12D00-38K
Ботинок
5 904 ₽/шт
23
51571-12D00-28V
Boot,fr fork co
24
51575-12D00
BAND
