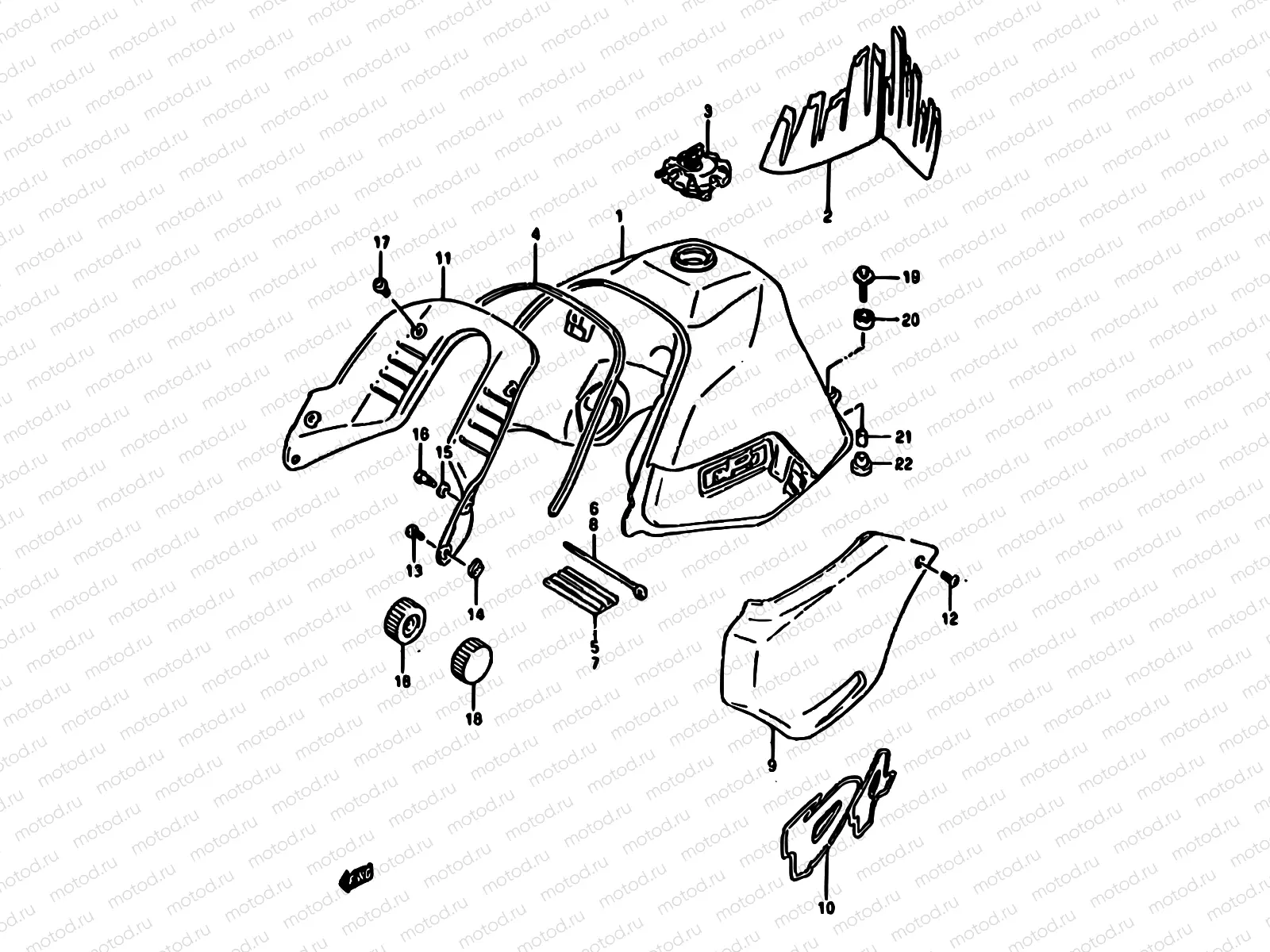

31 - FUEL TANK (MODEL N)

31 - FUEL TANK (MODEL N)
Например: 44100-12E11-29X
1
44100-12E11-29X
Tank assy,fuel (white)
1
44100-12E11-28X
Tank assy,fuel (white)
2
68110-12E01-A0S
.tape set,fuel tank
2
68110-12E01-A0T
.tape set,fuel tank
3
44200-12852
Cap Set,fuel Tank
12 082 ₽/шт
4
94631-44110
MOLD,COWLING
4 845 ₽/шт
5
44541-14500
Валик топливного бака
824 ₽/шт
6
09407-25402
CLAMP(L:250)
238 ₽/шт
7
44542-12E00
CUSHION,TANK UPPER,REAR
8
09407-30402
ХОМУТ РУЛ. НАК.
2 420 ₽/шт
9
44171-12E00-0NH
Cover,fuel tank
9
44171-12E00-0NF
Cover,fuel tank
9
44181-12E00-0NF
Cover,fuel tank lh (blue)
9
44181-12E00-0NH
Cover,fuel tank
10
68121-12E00-A0U
Tape,tank cover rh
10
68122-12E00-A0U
MBLEM,TANK COVER,L
11
44271-12E00
Cover,front
12
02142-06107
Болт
85 ₽/шт
12
02142-0610B
Винт держатель
85 ₽/шт
13
03241-1516A
ШАЙБА
82 ₽/шт
14
09148-05013
Гайка
97 ₽/шт
15
09160-06109
Шайба
85 ₽/шт
16
09139-05037
Болт
136 ₽/шт
17
02142-15103
Болт
1 090 ₽/шт
18
44511-12D00
CUSHION,FUEL TANK FR
510 ₽/шт
19
09116-06172
Болт
153 ₽/шт
20
09320-14022
CUSHION
146 ₽/шт
21
09180-06271
Кольцо/шайба
172 ₽/шт
22
09320-10038
CUSHION
115 ₽/шт
