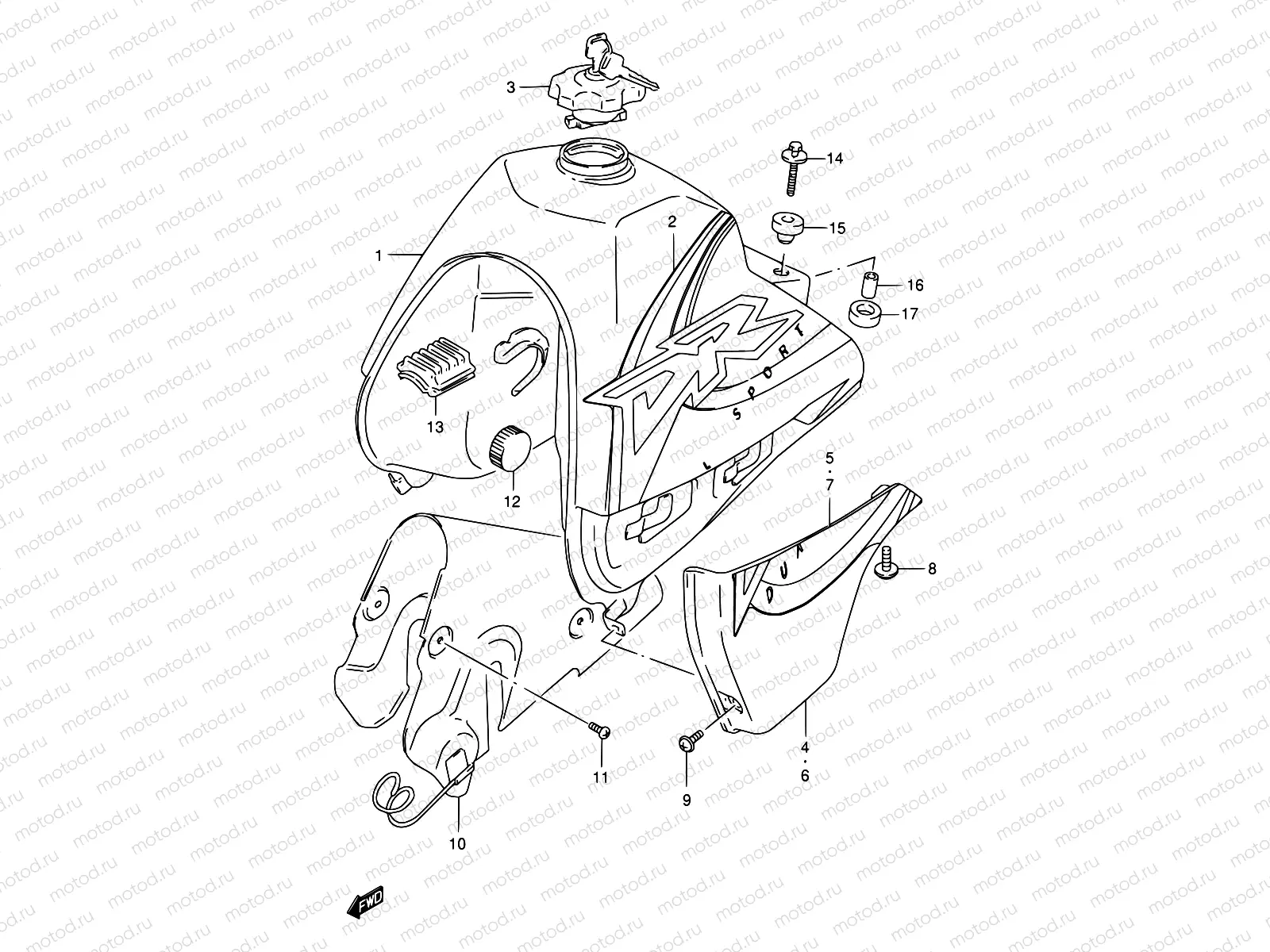

34B - FUEL TANK (MODEL X)

34B - FUEL TANK (MODEL X)
Например: 49100-14EA0-30H
1
49100-14EA0-30H
TANK ASSY,FUEL(WHITE)
78 540 ₽/шт
1
49100-14EA0-019
Tank assy, fuel (black)
1
49100-14EC0-30H
Tank assy, fuel (white)
1
49100-14EC0-019
Tank assy, fuel (black)
2
68110-14E80-Y8P
.tape set, fuel tank
2
68110-14E80-Y8R
TAPE SET.FUEL TANK
3
44200-03811
Fuel cap
4
44171-15D00-30H
COVER,FUEL TANK,R
2 229 ₽/шт
4
44171-15D00-019
COVER,FUEL TANK,R
2 014 ₽/шт
5
68115-14E00-Y9S
TAPE.FUEL TANK COVER.R
5
68115-14E00-Y9T
ape, cover rh
6
44181-15D00-30H
Cover,tank,l
6
44181-15D00-019
COVER,FUEL TANK L
7
68125-14E00-Y9S
Tape, cover lh
7
68125-14E00-Y9T
APE.FUEL TANK COVER.L
8
09136-06002
SCREW(6X12)
1 410 ₽/шт
9
02142-06107
Болт
85 ₽/шт
10
49131-14D20
Heat shield, fuel tank
11
01560-05103
Болт
1 330 ₽/шт
12
09329-10016
САЙЛЕНТБЛОК
221 ₽/шт
13
44541-15D01
amper (Upper)
14
09116-06172
Болт
153 ₽/шт
15
09320-10038
CUSHION
115 ₽/шт
16
09180-06271
Кольцо/шайба
172 ₽/шт
17
09320-14013
Валик топливного бака
221 ₽/шт
