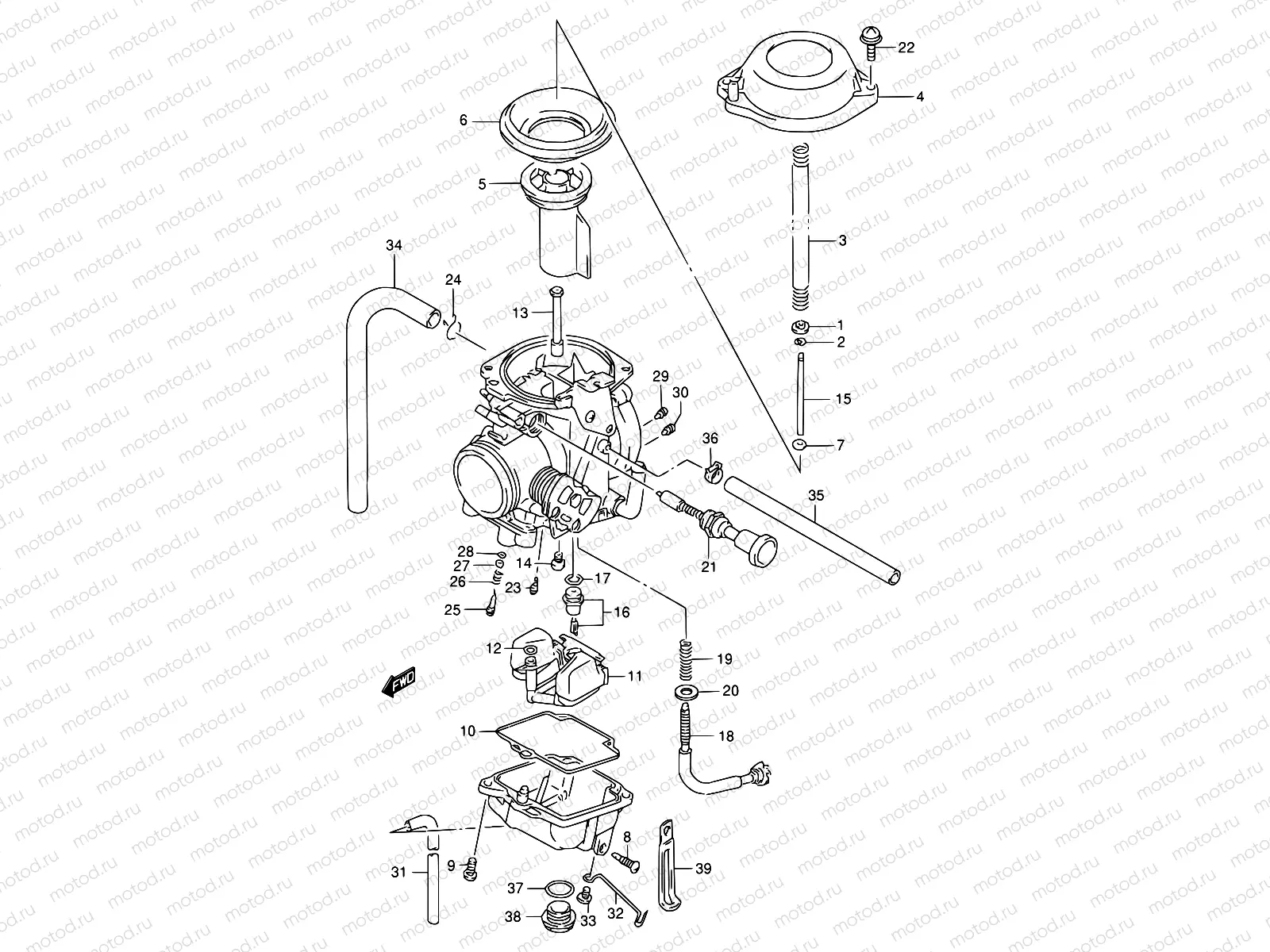

10A - CARBURETOR (MODEL T/V/W/X)

10A - CARBURETOR (MODEL T/V/W/X)
Например: 13200-14D91
0
13200-14D91
CARBURATOR
0
13200-14EL0
Carburettor
0
13200-14DA0
Carburettor
0
13200-14EM1
0
13200-14EK0
Carburettor
1
13382-42A00
RING
187 ₽/шт
2
13394-40D20
E RING
282 ₽/шт
3
13417-44B00
Пружина
856 ₽/шт
4
13502-01D00
COVER,DIAPHRAGM
5 270 ₽/шт
4
13502-45B10
Cover,diaphragm
5
13551-44B10
VALVE PISTON
7 140 ₽/шт
6
13507-44B01
Diaphragm
2 522 ₽/шт
7
13387-47010
RING
323 ₽/шт
8
13247-02340
Заглушка дренажная
258 ₽/шт
9
02112-05127
Болт
81 ₽/шт
10
13258-44B00
Прокладка крышки поплавковой камеры
767 ₽/шт
11
13240-17E10
Поплавок
3 910 ₽/шт
12
13374-46710
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
13
09494-00673
JET,NEEDLE(O-5)
2 550 ₽/шт
13
09494-00723
.jet, needle (o-7)
13
09494-00871
JET,NEEDLE(O-3M)
5 017 ₽/шт
14
09491-25011
JET,MAIN(127.5)
657 ₽/шт
14
09491-26012
JET,MAIN(132.5)
790 ₽/шт
14
09491-27009
Жиклер главный
805 ₽/шт
15
13383-14D80
NEEDLE,JET
15
13383-14D10
Needle,jet (5CD56-4)
16
13370-02D01
Valve Assy,needle
4 262 ₽/шт
17
13374-35C00
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
18
13267-15E00
Регулятор
3 597 ₽/шт
19
13268-31210
Прушина стопорная
293 ₽/шт
20
13615-43010
Шайба
170 ₽/шт
21
13411-14E10
PLUNGER ASSY
6 780 ₽/шт
22
02112-7516A
Болт
102 ₽/шт
23
09492-35010
Жиклерпроводник
986 ₽/шт
23
09492-42010
Жиклер пропускной (42.5)
711 ₽/шт
24
09401-10401
CLIP
900 ₽/шт
25
13279-47070
Винт топливный
884 ₽/шт
26
13268-47070
Пружина
272 ₽/шт
27
13291-29900
Шайба
162 ₽/шт
28
13295-29901
O-Ring, Pilot Air Screw
210 ₽/шт
29
09493-24007
Жиклер воздушный (1.2)
1 227 ₽/шт
29
09493-26004
Жиклер воздушный
1 126 ₽/шт
30
09493-60004
JET,AIR(0.6)
931 ₽/шт
31
09352-30504-600
Hose(3X5X600)
527 ₽/шт
32
13671-15D60
CLIP
1 021 ₽/шт
33
02112-0508A
Винт №1
85 ₽/шт
34
09354-65113-600
Cső (6.5x11.5x600)
34
09352-70113-600
.hose (l:600!200)
35
09352-50005-600
ШЛАНГ
436 ₽/шт
36
13671-14E00
CLIP
321 ₽/шт
37
13247-32210
Дренаж
1 048 ₽/шт
38
13249-41310
O RING,DRAIN PLUG
289 ₽/шт
39
09404-06039
Clamp(L:65)
194 ₽/шт
