Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 400 Burgman SUZUKI AN400 K4 Burgman 400 (E03,E28,E33) SUZUKI 34 - FUEL TANK

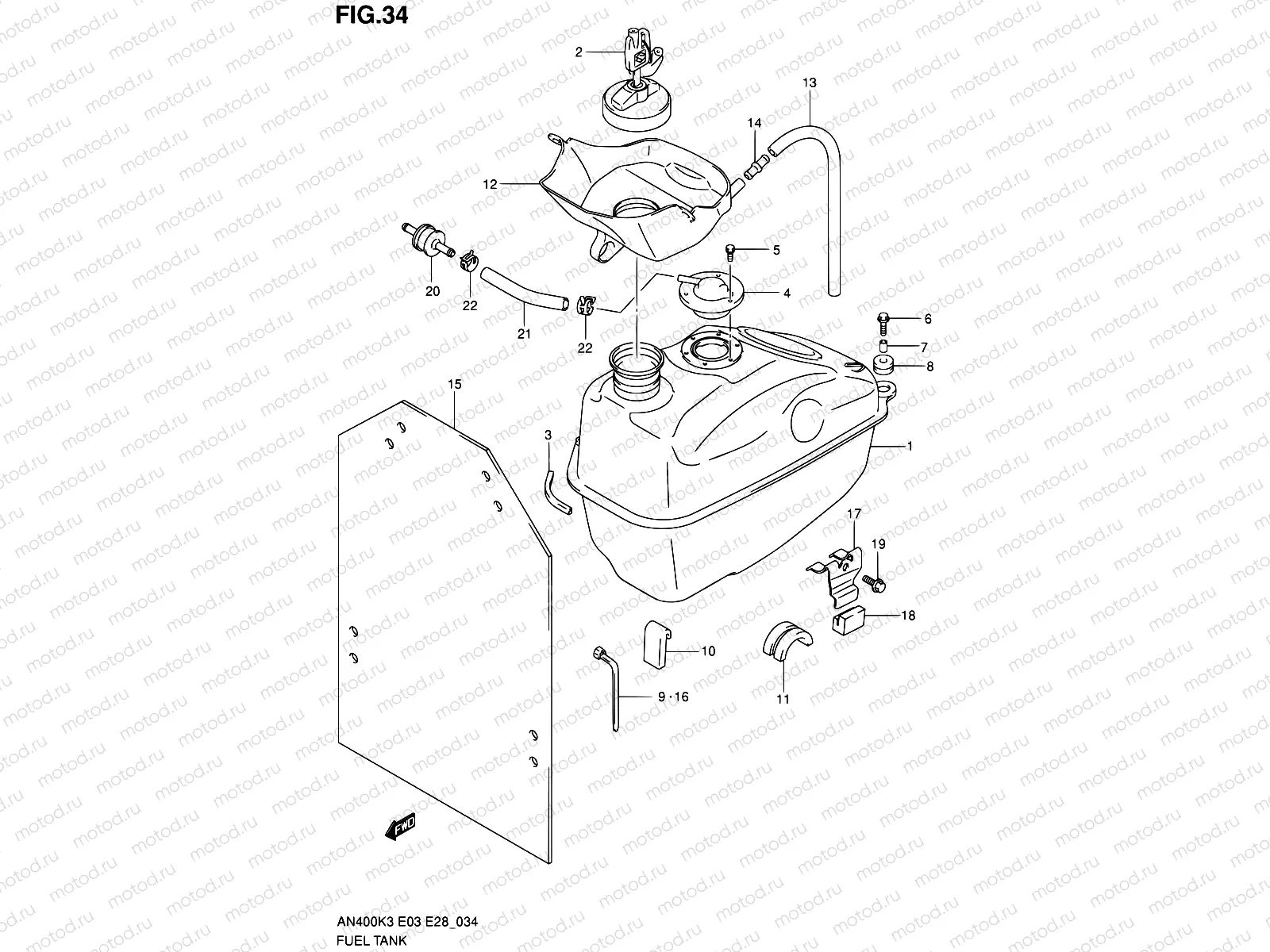

34 - FUEL TANK

34 - FUEL TANK

Например: 44110-14G00

1

44110-14G00

Tank, fuel

55 209 ₽/шт

2

44200-14840

CAP SET,FUEL TANK

9 032 ₽/шт

3

68241-04X50-00B

MOLDING

1 696 ₽/шт

4

89485-65D00

VALVE,FUEL CUT

6 061 ₽/шт

5

01570-0510B

Болт

1 520 ₽/шт

6

09116-06147

Болт копрусный

162 ₽/шт

7

09180-06267

Кольцо/шайба

2 030 ₽/шт

8

44512-04F01

Cushion,fuel Tank Side

285 ₽/шт

9

09407-25402

CLAMP(L:250)

238 ₽/шт

10

44541-14F00

CUSHION,FUEL TANK LWR,R

438 ₽/шт

11

44541-14F10

CUSHION,FUEL TANK LWR

438 ₽/шт

12

44261-14G00

TRAY,FUEL TANK INLET

3 793 ₽/шт

13

09352-70104-600

Hose(7X10.2X600)

561 ₽/шт

14

09367-08001

JOINT

211 ₽/шт

15

44191-14G00

SHEET,HEAT SHIELD RUBBER

3 382 ₽/шт

16

09407-18402

Струбцина (L:165)

211 ₽/шт

17

44531-14G00

BRACKET,FUEL TANK FR

762 ₽/шт

18

44541-24F01

Cushion,fuel Tank Side

536 ₽/шт

19

01550-0610B

Болт

85 ₽/шт

20

85451-75100

Клапан

3 230 ₽/шт

21

09355-54116-600

ТРУБКА

938 ₽/шт

22

09401-10409

ХОМУТ МАЛЫЙ

119 ₽/шт
