Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 400 Burgman SUZUKI AN400 K4 Burgman 400 (E03,E28,E33) SUZUKI 21 - TRANSMISSION (1)

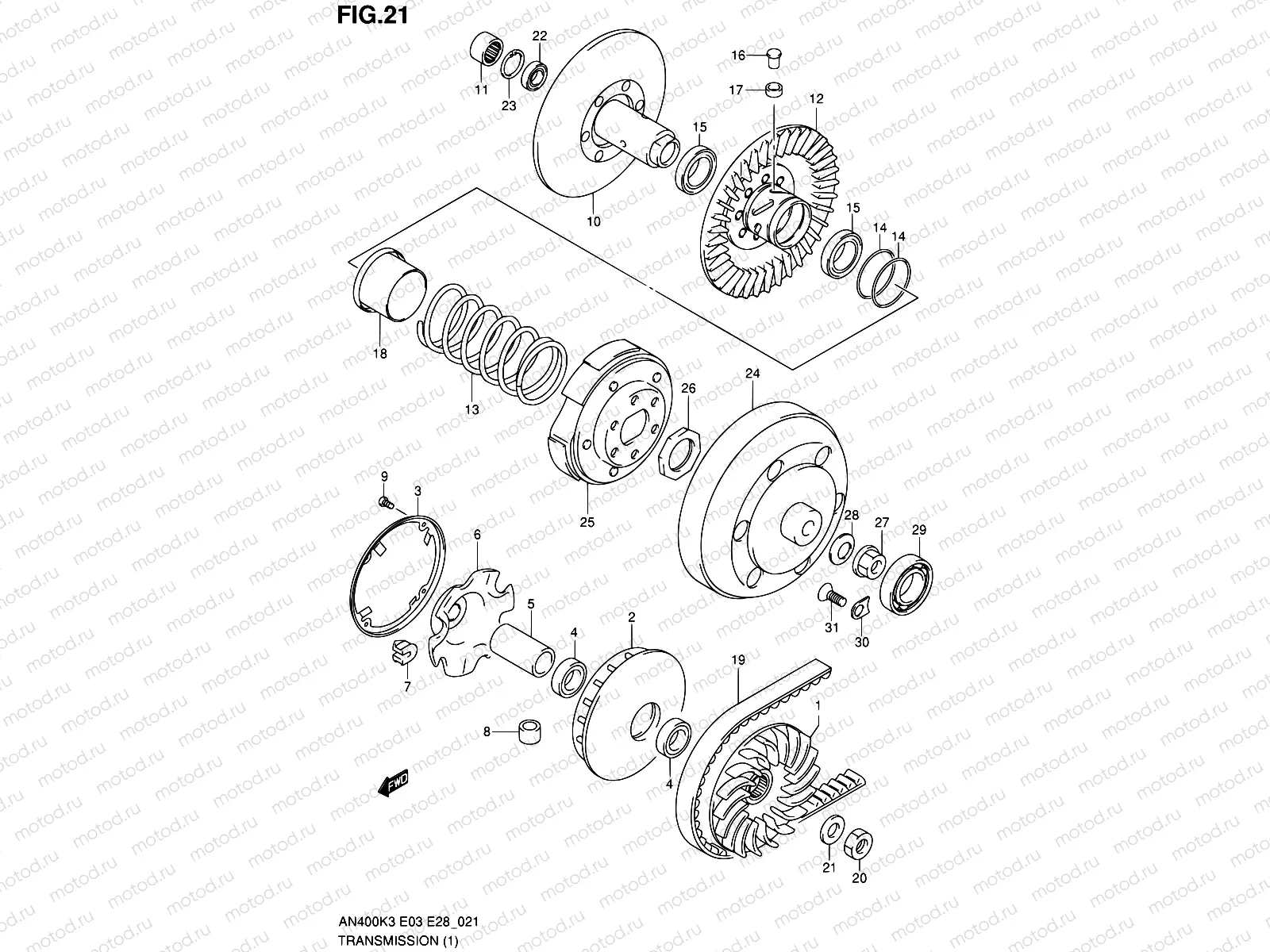

21 - TRANSMISSION (1)

21 - TRANSMISSION (1)

Например: 21110-15F10

1

21110-15F10

ACE,FIXED DRIVE

9 771 ₽/шт

2

21120-15F10

ACE,MOVABLE DRIVE

13 485 ₽/шт

3

21122-15F10

COVER,MOVABLE DRIVE

733 ₽/шт

4

21124-15F00

SEAL,MOVABLE DRIVE FACE OIL

598 ₽/шт

5

21125-15F10

SPACER,MOVABLE DRIVE

3 011 ₽/шт

6

21431-15F00

PLATE,MOVABLE DRIVE

4 080 ₽/шт

7

21481-14F00

Слайдер

339 ₽/шт

8

21650-15F40

ROLLER,MOVABLE DRIVEN

935 ₽/шт

9

02142-0410A

Винт

81 ₽/шт

10

21210-15F10

ACE,FIXED DRIVEN

18 690 ₽/шт

11

21214-15F00

BEARING,FIXED DRIVEN,R

4 508 ₽/шт

12

21240-15F10

ACE,MOVABLE DRIVEN

16 657 ₽/шт

13

21243-15F20

SPRING,MOVABLE DRIVEN

2 776 ₽/шт

14

21245-15F00

O RING,MOVABLE DRIVEN

275 ₽/шт

15

21247-15F00

SEAL,MOVABLE DRIVEN OIL

1 870 ₽/шт

16

21248-15F01

PIN,MOVABLE DRIVEN

224 ₽/шт

17

21249-15F00

SPACER,MOVABLE DRIVEN PIN

262 ₽/шт

18

21471-15F00

SHEET,MOVABLE DRIVEN

1 662 ₽/шт

19

27601-15F10

V BELT,DRIVE

32 640 ₽/шт

20

09140-18501

Гайка

211 ₽/шт

21

09164-18001

Вкладыш

194 ₽/шт

22

08123-6904B

earing

986 ₽/шт

23

08331-41379

CIRCLIP

187 ₽/шт

24

21220-15F11

HOUSING,CLUTCH

22 483 ₽/шт

25

21501-15F02

CLUTCH ASSY,SHOE

34 170 ₽/шт

26

21518-15F00

NUT,SHOE CLUTCH

561 ₽/шт

27

09140-16002

Гайка 16MM

1 840 ₽/шт

28

09164-16002

Шайба

1 880 ₽/шт

29

09262-35064

BEARING(35X62X14)

3 150 ₽/шт

30

24742-44B00

RETAINER

254 ₽/шт

31

02122-0616B

Болт

85 ₽/шт
