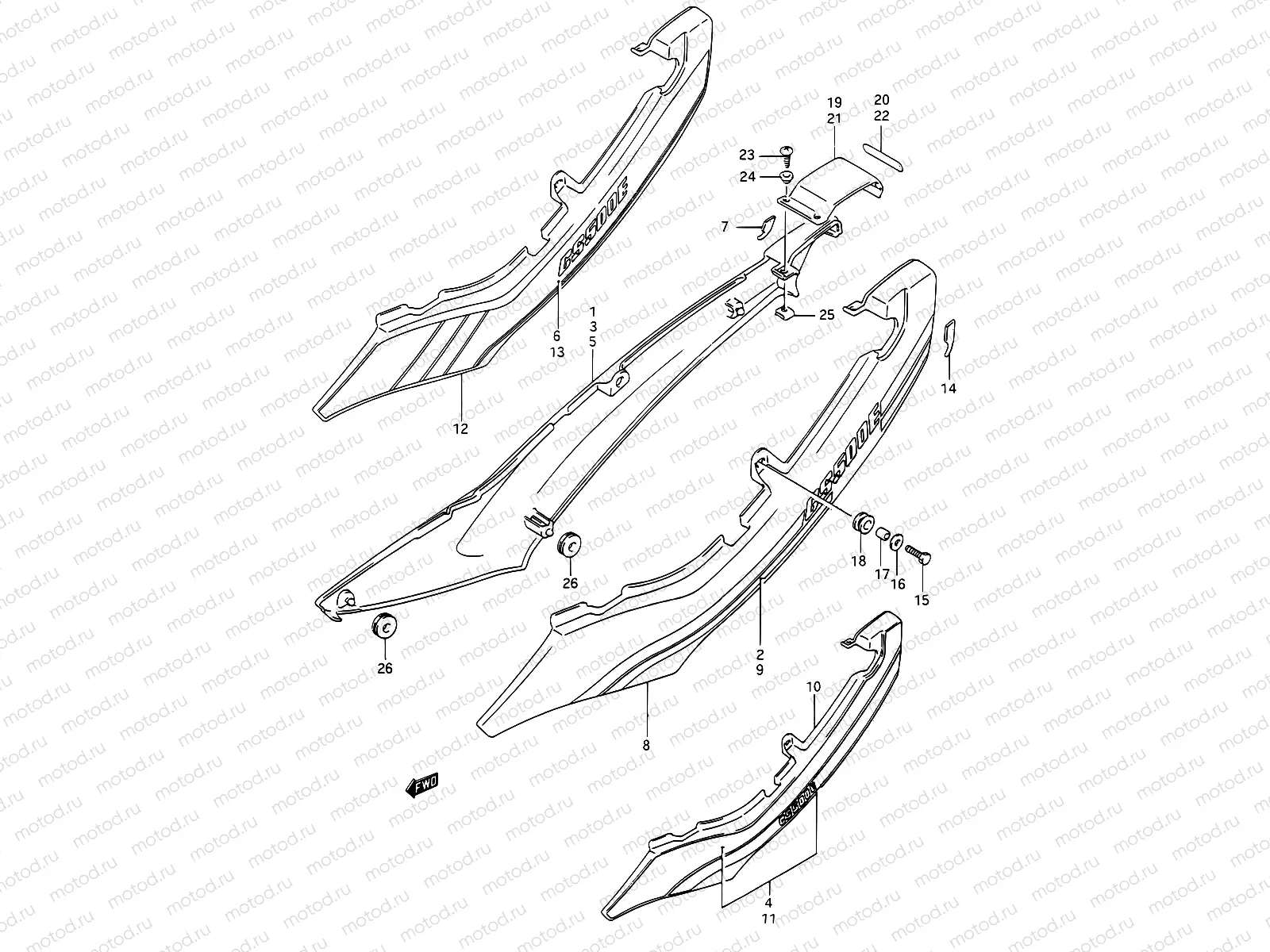

34 - FRAME COVER (MODEL K/L/M)

34 - FRAME COVER (MODEL K/L/M)
Например: 47110-01D30-28V
3
47110-01D30-28V
Cover, frame rh (red)
3
47110-01D30-33J
Cover, frame rh (black)
4
68130-01D30-3YR
.tape set, rh
4
68130-01D30-3WG
.tape set, rh
7
47119-01D00
Protector,frame
10
47210-01D30-28V
Cover, frame lh (red)
10
47210-01D30-33J
Cover, frame lh (black)
11
68140-01D30-3YR
.tape set, lh
11
68140-01D30-3WG
.tape set, lh
14
47219-01D00
PROTECTOR,FRAME COVER,L
571 ₽/шт
15
02112-06207
ШАЙБА
85 ₽/шт
16
09160-06109
Шайба
85 ₽/шт
17
09180-06283
Кольцо/шайба
162 ₽/шт
18
09320-09016
РЕЗИНКА
162 ₽/шт
19
47215-01D00
COVER,FRAME CTR(NON PAINT)
3 597 ₽/шт
19
47310-01D00-36X
COVER,FRAME CTR
4 770 ₽/шт
20
68166-01D00-33N
.emblem (blue)
20
68166-01D00-0JW
Эмблема
454 ₽/шт
23
03241-M0512-A
Vis
24
09161-05017-LCP
Rondelle
25
09148-05013
Гайка
97 ₽/шт
26
09320-08527
Cushion
1 640 ₽/шт
