Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GS 500 SUZUKI GS500E L (E28) SUZUKI (VIN: GM51B) 2 - CYLINDER HEAD

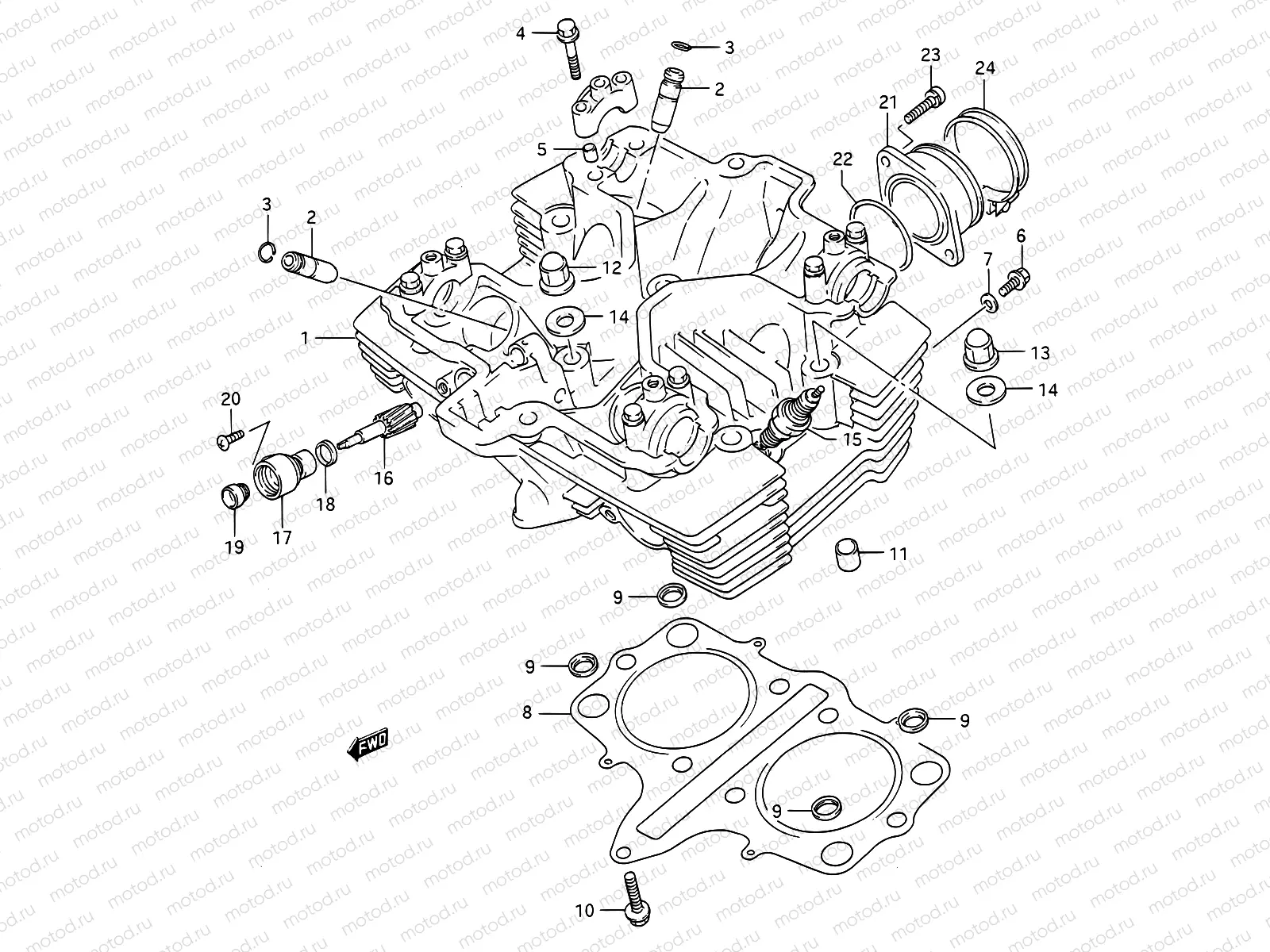

2 - CYLINDER HEAD

2 - CYLINDER HEAD
Например: 11100-01D01
1
11100-01D01
Head assy, cylinder
2
11115-45740
Направляющая впускного клапана
3 400 ₽/шт
3
09381-10003
RING,SNAP
114 ₽/шт
4
09103-06071
BOLT(6X39)
1 330 ₽/шт
5
09206-08001
Стопор
170 ₽/шт
6
01550-0612B
БОЛТ
81 ₽/шт
7
09168-06023
ПРОКЛАДКА
162 ₽/шт
8
11141-01D11
Прокладка головки цилиндра
3 230 ₽/шт
9
11143-06B00
Кольцо головки цилиндров
404 ₽/шт
10
01550-0630A
БОЛТ
102 ₽/шт
11
04211-11189
ШТИФТ
119 ₽/шт
12
09159-10026
Гайка
3 750 ₽/шт
13
09159-10026
Гайка
3 750 ₽/шт
14
09168-10017
GASKET(10.5X22X2)
187 ₽/шт
15
09482-00334
SPARK PLUG DPR8EA-9
727 ₽/шт
16
26431-45002
GEAR,TACHOMETER DRIVEN
3 343 ₽/шт
17
26441-49000
SLEEVE,TACHOMETER DRIVE GEAR
2 805 ₽/шт
18
26451-45000
BAND,DRIVEN GEAR SEAL
289 ₽/шт
19
09289-05002
Сальник
825 ₽/шт
20
09128-05101
SCREW(5X12)
102 ₽/шт
21
13101-01D00
PIPE ASSY,INTAKE
5 355 ₽/шт
22
09280-40020
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
533 ₽/шт
23
02112-3620A
Болт
85 ₽/шт
24
09402-54208
CLAMP
3 280 ₽/шт
