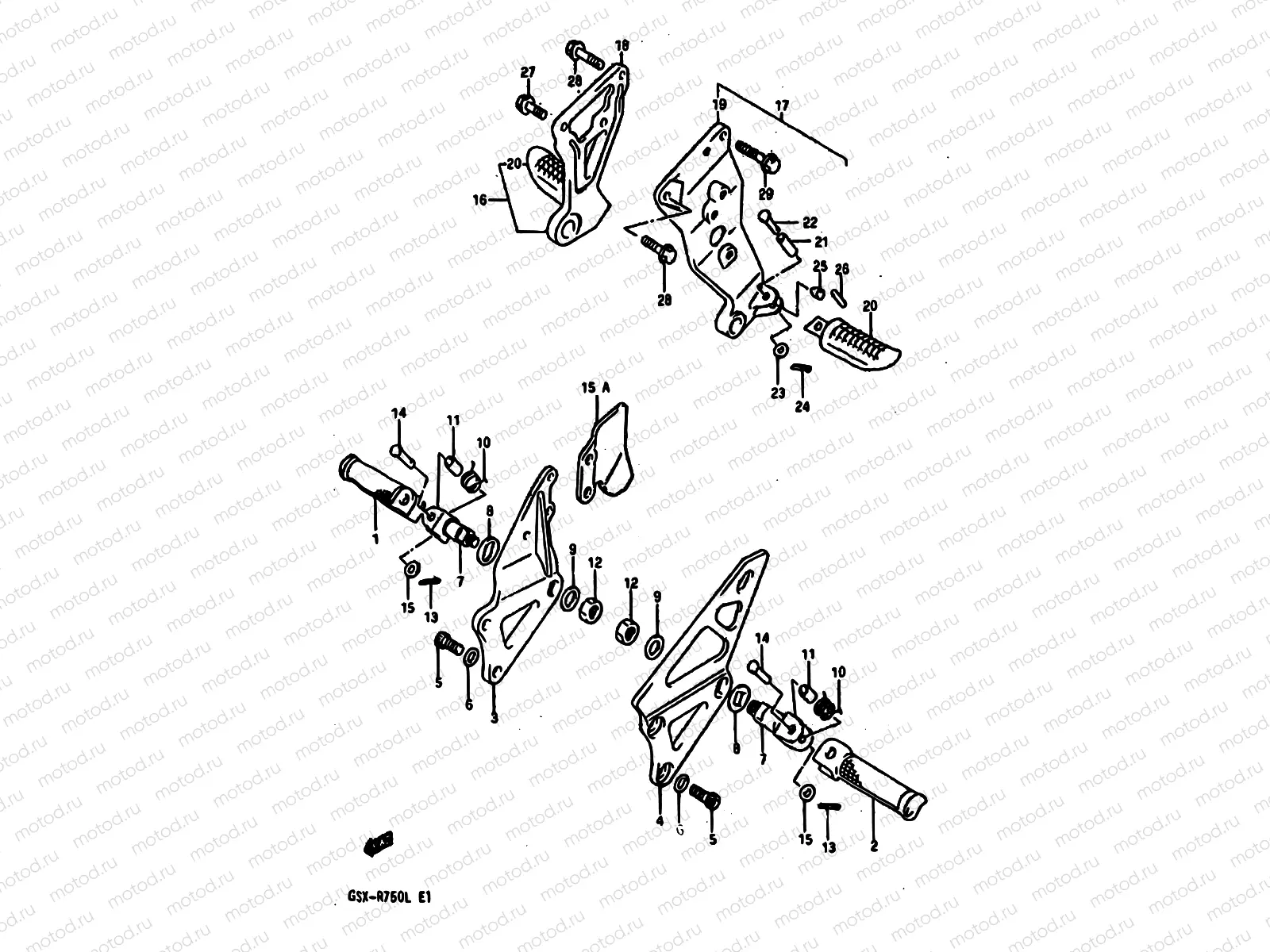

34 - FOOTREST (MODEL J/K)

34 - FOOTREST (MODEL J/K)
Например: 43511-17C02
1
43511-17C02
Repose pieds (Front, RH)
2
43521-17C02
BAR,FOOTREST,L
8 084 ₽/шт
3
09106-10050
BOLT(10X20)
3 280 ₽/шт
3
43510-17C04
4
09106-10050
BOLT(10X20)
3 280 ₽/шт
4
43522-17D01
BRACKET,FOOTREST,L
11 613 ₽/шт
5
07130-1020B
Болт
2 310 ₽/шт
5
09139-10004
BOLT(10X27)
2 890 ₽/шт
5
09106-10050
BOLT(10X20)
3 280 ₽/шт
6
09164-10010
Шайба
3 250 ₽/шт
7
43530-17C01
BOSS,FOOTREST
3 421 ₽/шт
8
43213-17C01
PLATE,FOOTREST INNER
383 ₽/шт
9
43214-17C01
WASHER,FR FOOTREST
4 536 ₽/шт
10
09448-18022
Пружина
211 ₽/шт
11
09180-08149
Прокладка
258 ₽/шт
12
09140-12039
Гайка
187 ₽/шт
13
04111-2515A
Стопор
82 ₽/шт
14
09200-08057
PIN
1 720 ₽/шт
15
08322-01087
Шайба
81 ₽/шт
16
43600-17C11
Repose pieds (PILLION RH)
17
43700-17C11
Repose pieds (PILLION LH)
18
43600-17C11
Repose pieds (PILLION RH)
19
43700-17C11
Repose pieds (PILLION LH)
20
43611-32C00
BAR,PILLION FOOTREST R
3 636 ₽/шт
20
43621-32C00
BAR,PILLION FOOTREST L
3 636 ₽/шт
21
09180-08149
Прокладка
258 ₽/шт
22
09200-08064
PIN
3 600 ₽/шт
23
08322-01087
Шайба
81 ₽/шт
24
04111-2020A
Штифт
81 ₽/шт
25
43691-17C01
Damper
26
09261-04010
PIN(4X20.8)
1 020 ₽/шт
27
07130-0845B
БОЛТ
2 310 ₽/шт
28
01550-0825A
Болт
119 ₽/шт
29
01550-0830B
Болт
113 ₽/шт
