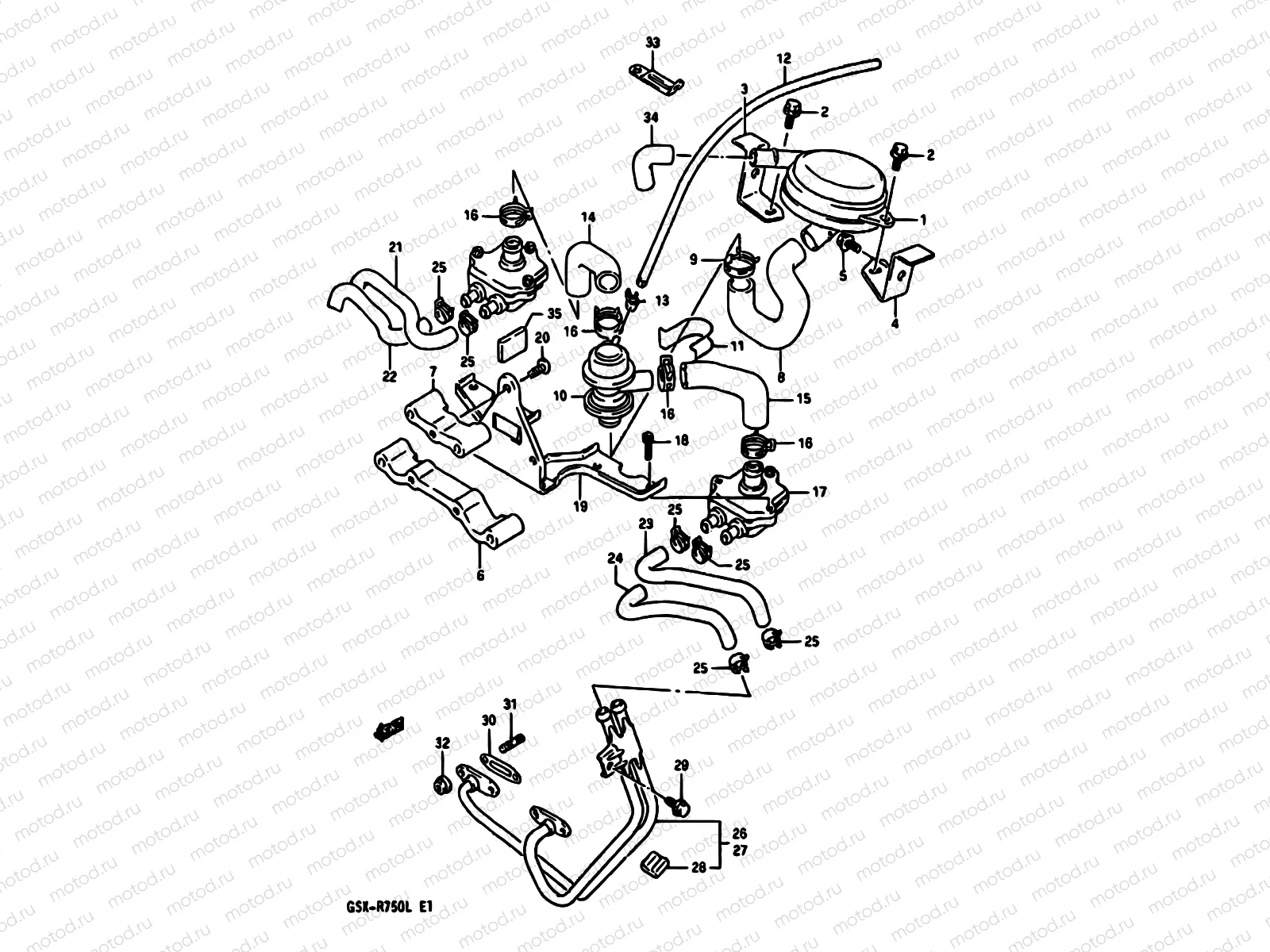

17A - SECOND AIR (MODEL L E18)

17A - SECOND AIR (MODEL L E18)
1
18700-17C02
leaner assy, 2nd air
2
01550-0616B
БОЛТ
81 ₽/шт
3
18750-17D00
Bracket, air cleaner, rh
4
18760-17D00
Bracket, air cleaner, lh
5
01550-0616B
БОЛТ
81 ₽/шт
6
18523-40C01
Spacer, bracket, lower
7
18524-40C01
Spacer, bracket, upper
8
18550-40C01
Hose, 2nd air, no.3
9
09401-25406
ХОМУТ МАЛЫЙ
2 580 ₽/шт
10
18510-20C00
VALVE ASSY,AIR SWITCHING
11
18522-17C00
lamp, switcing valve
12
09359-45855-600
Hose(4.5X8.5X300)
1 024 ₽/шт
13
09401-08409
CLIP
1 250 ₽/шт
14
18481-40C00
Hose, 2nd air no.2,rh
15
18482-40C00
Hose, 2nd air no.2,lh
16
09401-20405
ХОМУТ МАЛЫЙ
2 070 ₽/шт
17
18450-48B00
Valve assy, 2nd air reed
18
07130-05167
Болт
1 520 ₽/шт
19
18520-17D00
Bracket, air valve
20
02142-0612B
Винт
81 ₽/шт
21
18445-17D00
Hose, 2nd air no.1, rh in
22
18447-17D00
Hose, 2nd air no.1, rh out
23
18446-17D00
Hose, 2nd air no.1, lh in
24
18448-17D00
Hose, 2nd air no.1, lh out
25
09401-13417
ХОМУТ МАЛЫЙ
170 ₽/шт
26
18401-17D01
Pipe, 2nd air, rh
27
18402-17D01
Pipe, 2nd air, lh
28
18428-48B00
.cushion
29
01550-0612B
БОЛТ
81 ₽/шт
30
18441-17C11
GASKET,2ND AIR PIPE
1 020 ₽/шт
31
01421-0612A
Болт
1 170 ₽/шт
32
08319-31067
Гайка
153 ₽/шт
33
09404-06039
Clamp(L:65)
194 ₽/шт
34
18731-17C00
Hose, cleaner inlet
35
18519-17C00
ushion, switcing valve

Узлы для GSX-R750 J SUZUKI
