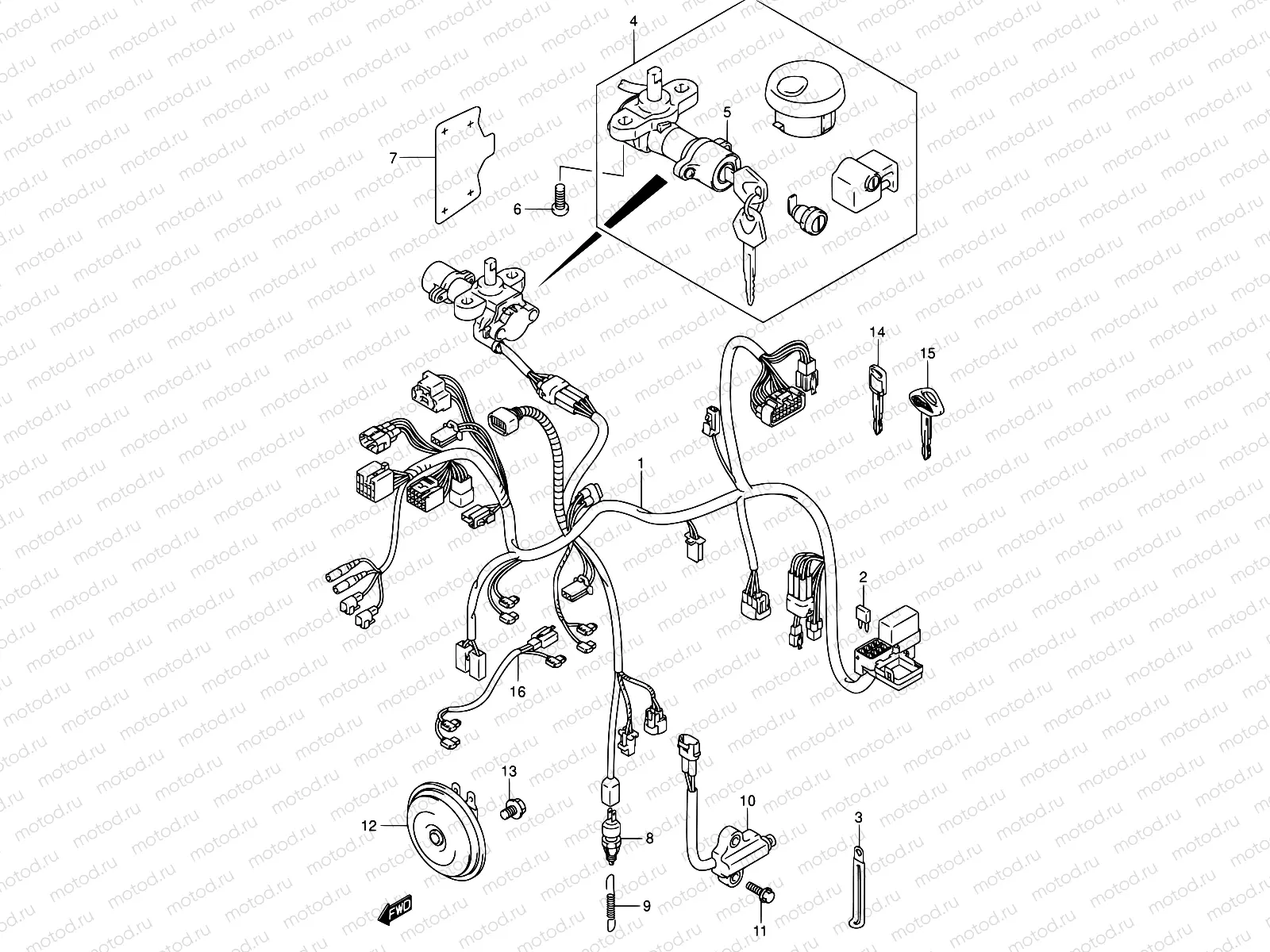

33A - WIRING HARNESS (VL800K3/ZK3)

33A - WIRING HARNESS (VL800K3/ZK3)
Например: 36610-41F60
1
36610-41F60
Harness,wiring
1
36610-41F80
Harness, wiring
2
09481-10504
Ограничитель,10A
1 250 ₽/шт
2
09481-15501-LCP
Fusible (10A)
3
09404-06036
Clamp(L:80)
194 ₽/шт
4
37000-41820
Lock set
4
37000-41880
Lock set
4
37000-41810
Lock set
4
37000-41870
Lock set
5
37100-41F10
LOCK ASSY,STEERING
17 712 ₽/шт
5
37100-41F30
LOCK ASSY,STEERING
17 712 ₽/шт
5
37100-41F00
LOCK ASSY,STEERING
14 858 ₽/шт
5
37100-41F20
.lock assy, steering
6
09139-08016
БОЛТ ПЕТЛИ ДВЕРИ (8X20)
170 ₽/шт
7
37187-41F10
PROTECTOR,IGNITION SWITCH
962 ₽/шт
8
37740-45D00
SWITCH ASSY,STOP LAMP
1 224 ₽/шт
9
09443-06073
ПРУЖНА
226 ₽/шт
10
37840-41F01
Switch Assy,Side Stand
5 904 ₽/шт
11
01550-0620B
БОЛТ
81 ₽/шт
12
38500-41F00
Звуковой сигнал
7 480 ₽/шт
13
01550-0812B
Болт
97 ₽/шт
14
37146-33E00
KEY,BLANK
2 899 ₽/шт
16
36853-41F00
Wire carb heate
