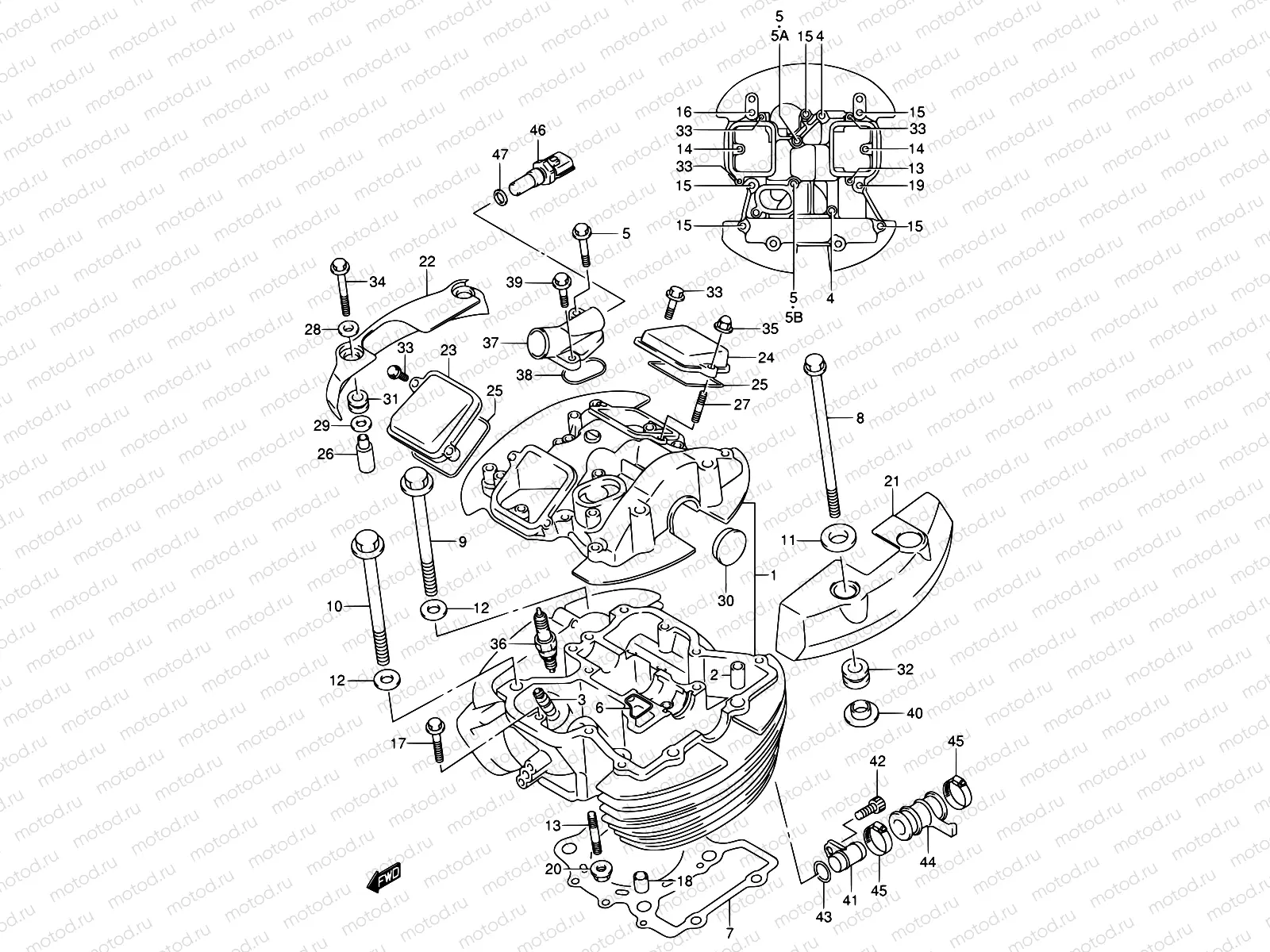

2 - FRONT CYLINDER HEAD

2 - FRONT CYLINDER HEAD
Например: 11101-41F00
1
11101-41F00
Cylinder head
2
09206-11004
PIN(8.4X11X14)
549 ₽/шт
3
11115-41F70
GUIDE,VALVE(OS:0.3)
1 785 ₽/шт
4
09103-06101
BOLT(6X50)
162 ₽/шт
5
09103-06102
BOLT(6X55)
170 ₽/шт
6
11123-38A00
Прокладка крышки
204 ₽/шт
7
11141-41F00
GASKET,CYLINDER HEAD FR
3 634 ₽/шт
8
09103-08370
BOLT(8X250)
840 ₽/шт
9
09103-10133
BOLT(10X155)
678 ₽/шт
10
09103-10134
BOLT(10X165)
792 ₽/шт
11
09160-08130
Шайба
102 ₽/шт
12
09160-10039
Шайба
119 ₽/шт
13
01421-0840A
Болт
1 520 ₽/шт
14
01550-0625A
Болт
102 ₽/шт
15
01550-0630A
БОЛТ
102 ₽/шт
16
01550-0640A
Болт
1 410 ₽/шт
17
01550-0640A
Болт
1 410 ₽/шт
18
04211-13189
ШТИФТ
129 ₽/шт
19
07120-0630B
Болт
97 ₽/шт
20
08316-1008B
Гайка
81 ₽/шт
21
11171-41F00
CAP,CYLINDER HEAD COVER FL
11 808 ₽/шт
22
11172-41F00
CAP,CYLINDER HEAD COVER FR
8 915 ₽/шт
23
11175-38A11
CAP,INSPECTION INTAKE
1 150 ₽/шт
24
11176-38A11
CAP,INSPECTION EXHAUST
1 150 ₽/шт
25
11177-38A00
ПРОКЛАДКА
289 ₽/шт
26
11179-10F10
SPACER,CYL HEAD COVER CAP NO.2
544 ₽/шт
27
09108-06102
Шпилька
211 ₽/шт
28
09160-06084
Шайба 6.5X18X1
81 ₽/шт
29
09160-09016
Шайба
97 ₽/шт
30
09241-30004
ШЛАНГ
485 ₽/шт
31
09320-09016
РЕЗИНКА
162 ₽/шт
32
09320-13015
CUSHION
204 ₽/шт
33
01547-0620B
БОЛТ
81 ₽/шт
34
01547-06507
Болт крышки головки цилиндров №2
97 ₽/шт
35
08313-2006A
Гайка
337 ₽/шт
36
09482-00334
SPARK PLUG DPR8EA-9
727 ₽/шт
37
11181-45C10
Union,wat.outl.
38
11182-38A00
GASKET,WATER OUTLET UNION
170 ₽/шт
39
01550-0620B
БОЛТ
81 ₽/шт
40
09301-08007
Втулка
194 ₽/шт
41
17891-41F10
UNION,CYL HEAD JOINT
938 ₽/шт
42
09106-06075
БОЛТ
1 450 ₽/шт
43
09280-16005
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
258 ₽/шт
44
17854-41F01
HOSE,CYLINDER HEAD JOINT
986 ₽/шт
45
09402-28511
CLAMP
307 ₽/шт
