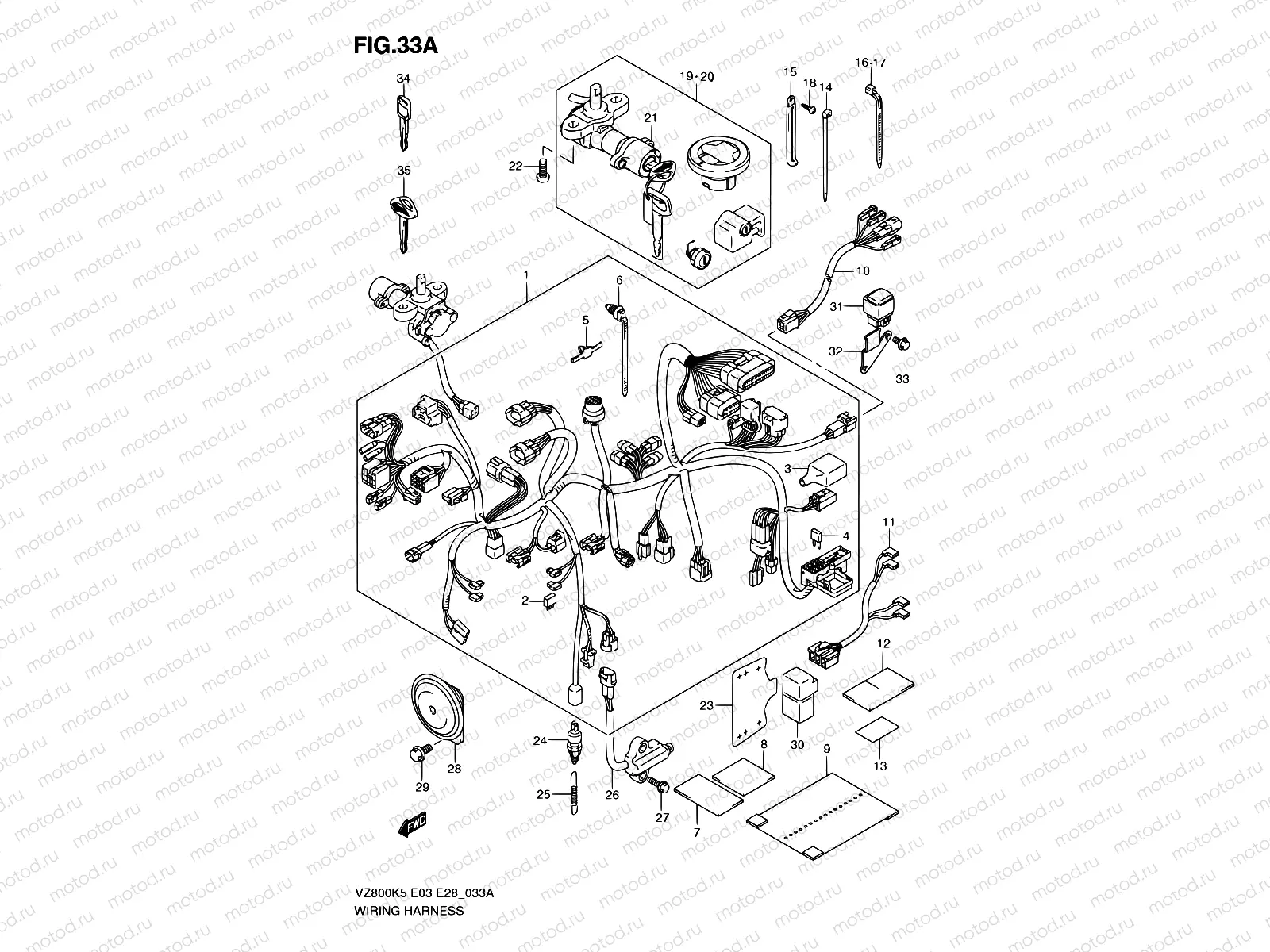

33A - WIRING HARNESS (MODEL K9)

33A - WIRING HARNESS (MODEL K9)

Например: 36610-39GB0

1

36610-39GB0

Harness, wiring

1

36610-39GC0

Harness, wiring

2

36611-38A10

DIODE

1 024 ₽/шт

3

36717-41F00

Ботинок

665 ₽/шт

4

09481-10504

Ограничитель,10A

1 250 ₽/шт

4

09481-15501-LCP

Fusible (10A)

5

09407-05410

CLAMP

2 970 ₽/шт

6

09407-17403

CLAMP ,L:154

306 ₽/шт

7

36611-16G00

TAPE,WIRING HARNESS(28X50X0.13

152 ₽/шт

8

36611-41F00

PROTECTOR,WIRING HARNESS

581 ₽/шт

9

36618-15D21

Cover,wiring Harness

969 ₽/шт

10

36858-39G01

WIRE,RR COMB

6 061 ₽/шт

11

36854-39G00

WIRE,IGNITION COIL LEAD

3 226 ₽/шт

12

36920-33C00

PROTECTOR,HARNESS(30X50X3)

152 ₽/шт

13

94474-17H00

PROTECTOR,COWLING UNDER

170 ₽/шт

14

09407-14407

ЗАЖИМ

221 ₽/шт

15

09404-06036

Clamp(L:80)

194 ₽/шт

15

09404-06435

CLAMP(L:135)

226 ₽/шт

16

09407-18402

Струбцина (L:165)

211 ₽/шт

17

09407-22403

CLAMP(L:220)

1 370 ₽/шт

18

03541-0410B

Болт

1 060 ₽/шт

19

37101-41890

Lock set

20

37102-41810

Lock set

21

37100-41F70

ЗАМОК ЗАЖИГАНИЯ

15 757 ₽/шт

22

09139-08016

БОЛТ ПЕТЛИ ДВЕРИ (8X20)

170 ₽/шт

23

37187-41F10

PROTECTOR,IGNITION SWITCH

962 ₽/шт

24

37740-45D00

SWITCH ASSY,STOP LAMP

1 224 ₽/шт

25

09443-06073

ПРУЖНА

226 ₽/шт

26

37840-41F01

Switch Assy,Side Stand

5 904 ₽/шт

27

09103-06279

BOLT(6X20)

1 490 ₽/шт

28

38500-41F30

Звуковой сигнал

4 457 ₽/шт

29

01550-0816B

Болт крепёжный

97 ₽/шт

30

38740-24X50

RELAY ASSY, HEAD LAMP

2 665 ₽/шт

31

38740-24A00

RELAY ASSY

3 167 ₽/шт

32

38741-39G00

BRACKET,HEADLAMP RELAY

387 ₽/шт

33

01550-0612B

БОЛТ

81 ₽/шт

34

37146-41F10

KEY,BLANK

1 779 ₽/шт

35

37146-41FA0

KEY,BLANK(BOULEVARD)

4 927 ₽/шт
