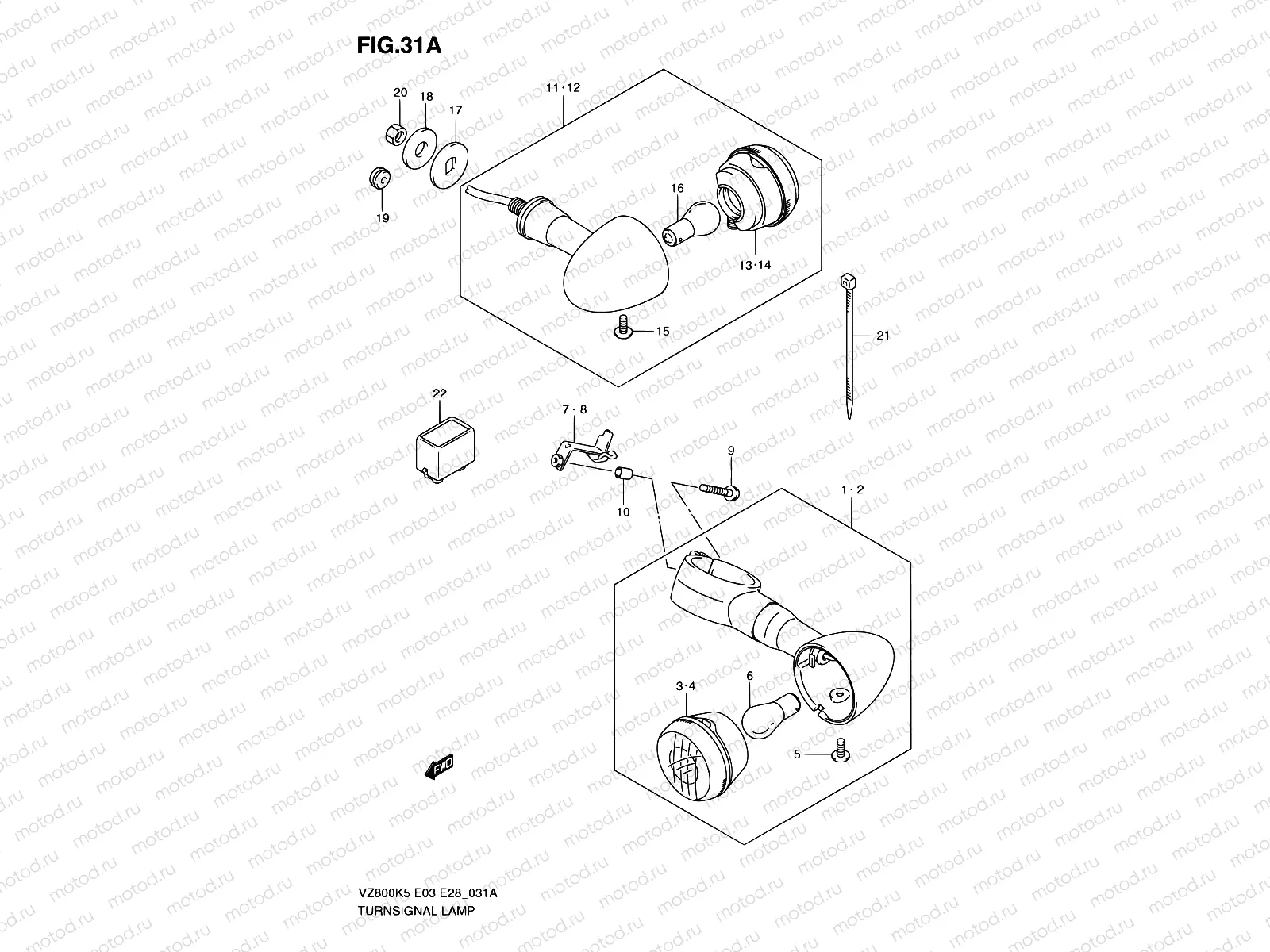

31A - TURNSIGNAL FRONT & REAR LAMP (VZ800K9)

31A - TURNSIGNAL FRONT & REAR LAMP (VZ800K9)

Например: 35601-48E70

1

35601-48E70

Поворотник передний, правый

8 837 ₽/шт

2

35602-48E70

Поворотник передний, левый

8 837 ₽/шт

3

35610-38AA0

Линза

1 785 ₽/шт

4

35630-38AA0

Линза

1 696 ₽/шт

5

35623-38AA0

SCREW(4X10)

321 ₽/шт

6

40503-00838-069

P21/5w,5w, bay1 (12V 21/5W BAY15d)

7

35671-39G00

BRACKET,FR TURNSIGNAL,R

559 ₽/шт

8

35681-39G00

BRACKET,FR TURNSIGNAL,L

559 ₽/шт

9

09136-06083

Винт 6X30

1 720 ₽/шт

10

09180-06121

SPACER(6.4X9.2X12)

1 330 ₽/шт

11

35603-38AE1

Lamp assy,rr tu

12

35604-38AE1

Lamp Assy,rr Turnsignal Lh

7 671 ₽/шт

13

35630-38AE1

Линза

4 578 ₽/шт

14

35610-38AE1

Линза

1 696 ₽/шт

15

35623-38AA0

SCREW(4X10)

321 ₽/шт

16

40503-00838-120

Bulb (12V 21W BA15s)

17

35695-17C00

ШАЙБА

204 ₽/шт

18

09160-10501

WASHER,10.5X30X2.3

136 ₽/шт

19

09308-05015

GROMMET

2 030 ₽/шт

20

08310-0010B

Гайка

85 ₽/шт

21

09407-14407

ЗАЖИМ

221 ₽/шт

22

38610-03F01

Relay Assy,turnsignal Lamp

6 120 ₽/шт
