Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI DR 250 SUZUKI DR250S P SUZUKI 32 - SEAT

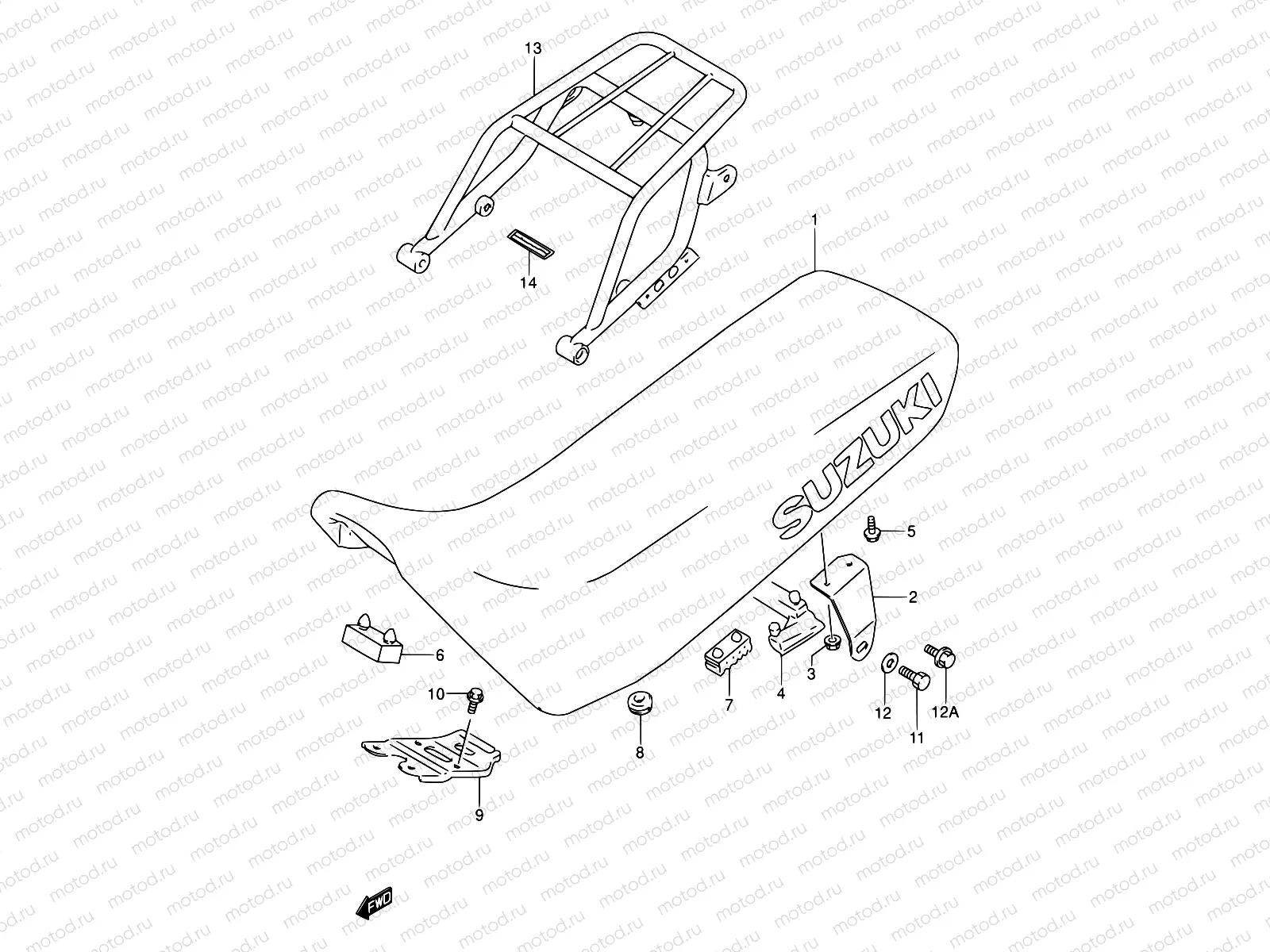

32 - SEAT

32 - SEAT

Например: 45100-15D10-9DD

1

45100-15D10-9DD

SEAT SET

2

45116-14D00

BRACKET,SEAT,R

371 ₽/шт

2

45117-14D00

STEUN,ZADEL,L.

3

08319-31067

Гайка

153 ₽/шт

4

45255-14D00

.cushion, bracket

5

01517-06107

.bolt, plug

6

09321-08006

САЙЛЕНТБЛОК

194 ₽/шт

7

45149-31300

CUSHION,SEAT(40X20X15)

510 ₽/шт

8

09320-08509

Cushion(8X22X7)

210 ₽/шт

9

45120-14D00

Plate, seat support front

9

45120-15D01

Plate,seat,fr h

10

01550-0812B

Болт

97 ₽/шт

11

01500-0812A

Болт

82 ₽/шт

12

08322-0108A

Шайба

85 ₽/шт

13

46310-15D30-0NF

Carrier comp,sp

14

68391-14D00

Label
