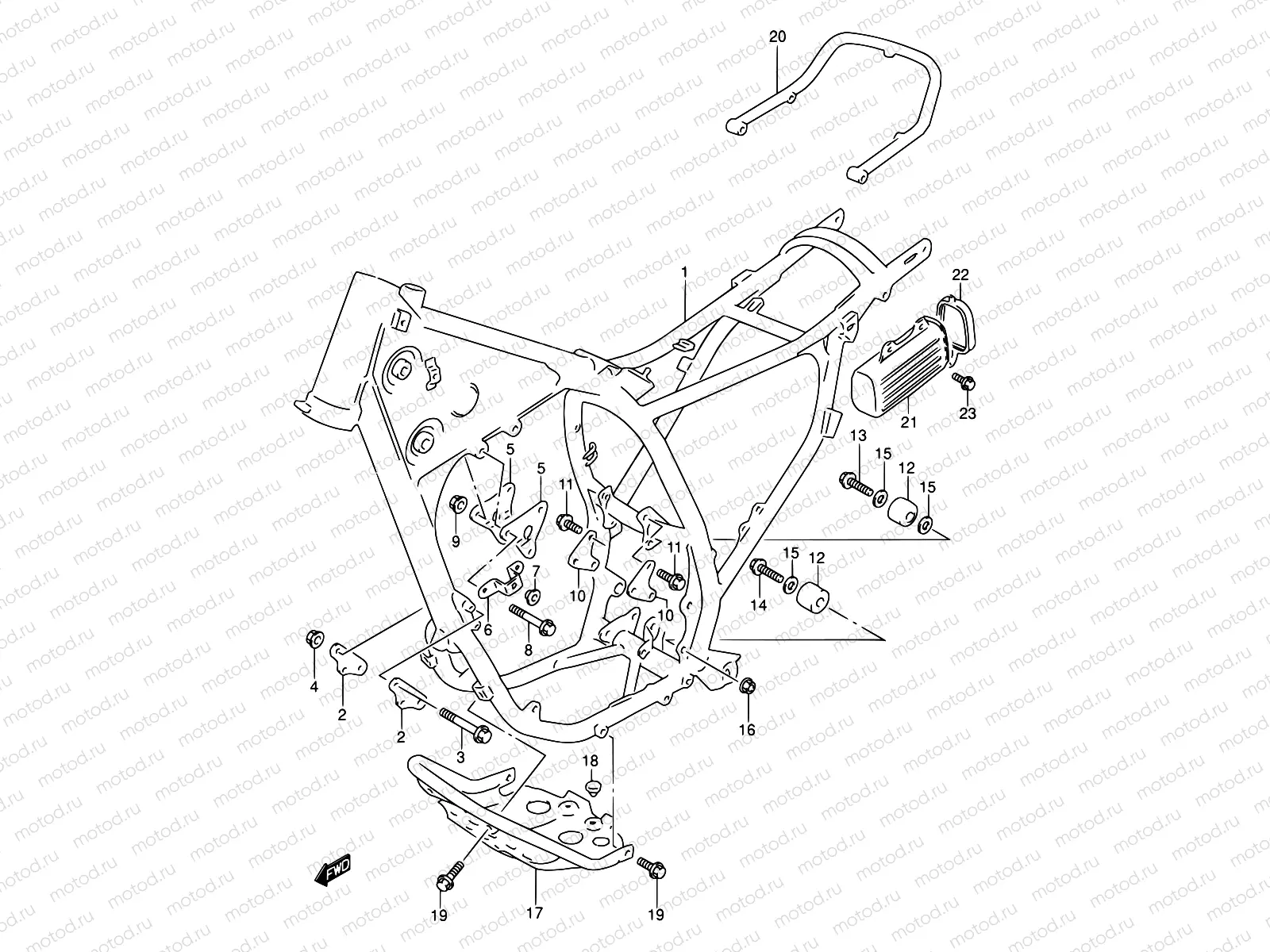

27A - FRAME (MODEL M/N/P/R)

27A - FRAME (MODEL M/N/P/R)

Например: 41100-14D50-0NF

1

41100-14D50-0NF

rame (blue)

1

41100-14D51-0NF

rame (blue)

1

41100-14D53-0NF

rame (blue)

1

41100-14D50-1AZ

Frame (yellow)

1

41100-14D51-1AZ

Frame (yellow)

1

41100-14D72-0NF

rame (blue)

1

41100-14D72-019

2

41911-14D01

BEVEST.PLAAT

3

09103-08294

Vis

4

09159-08034

Гайка

162 ₽/шт

5

41991-14D01

Plate, upper

6

44164-14D00

Plate, fuel tank stopper lh

7

09321-10018

САЙЛЕНТБЛОК

238 ₽/шт

8

09103-08569

Vis

9

09159-08034

Гайка

162 ₽/шт

10

41971-14D01

Plate, lower

11

09103-08570

Bolt,front Grip

1 840 ₽/шт

12

43910-27C11

ROLLER,CHAIN

4 262 ₽/шт

13

09103-08178

Болт

2 740 ₽/шт

14

09103-08043

БОЛТ

114 ₽/шт

15

08211-08121

Шайба

1 170 ₽/шт

16

08313-20087

Гайка

1 330 ₽/шт

17

42510-14D10-13L

Protector comp,

18

09321-10026

RUBBER

19

01550-08127

БОЛТ

1 640 ₽/шт

20

43980-14D42-0NF

Grip, rear (blue)

20

43980-14D42-1AZ

Grip, rear (yellow)

20

43980-14D80-1TS

RR GRIP COMP

20

43980-14D80-0NF

20

43980-14D12-1TS

Grip, rear (white)

21

47431-14D00

HOLDER,TOOL

2 620 ₽/шт

22

47432-14D01

Cap,tool Holder

2 975 ₽/шт

23

09116-06165

BOLT(6X16)

1 520 ₽/шт
