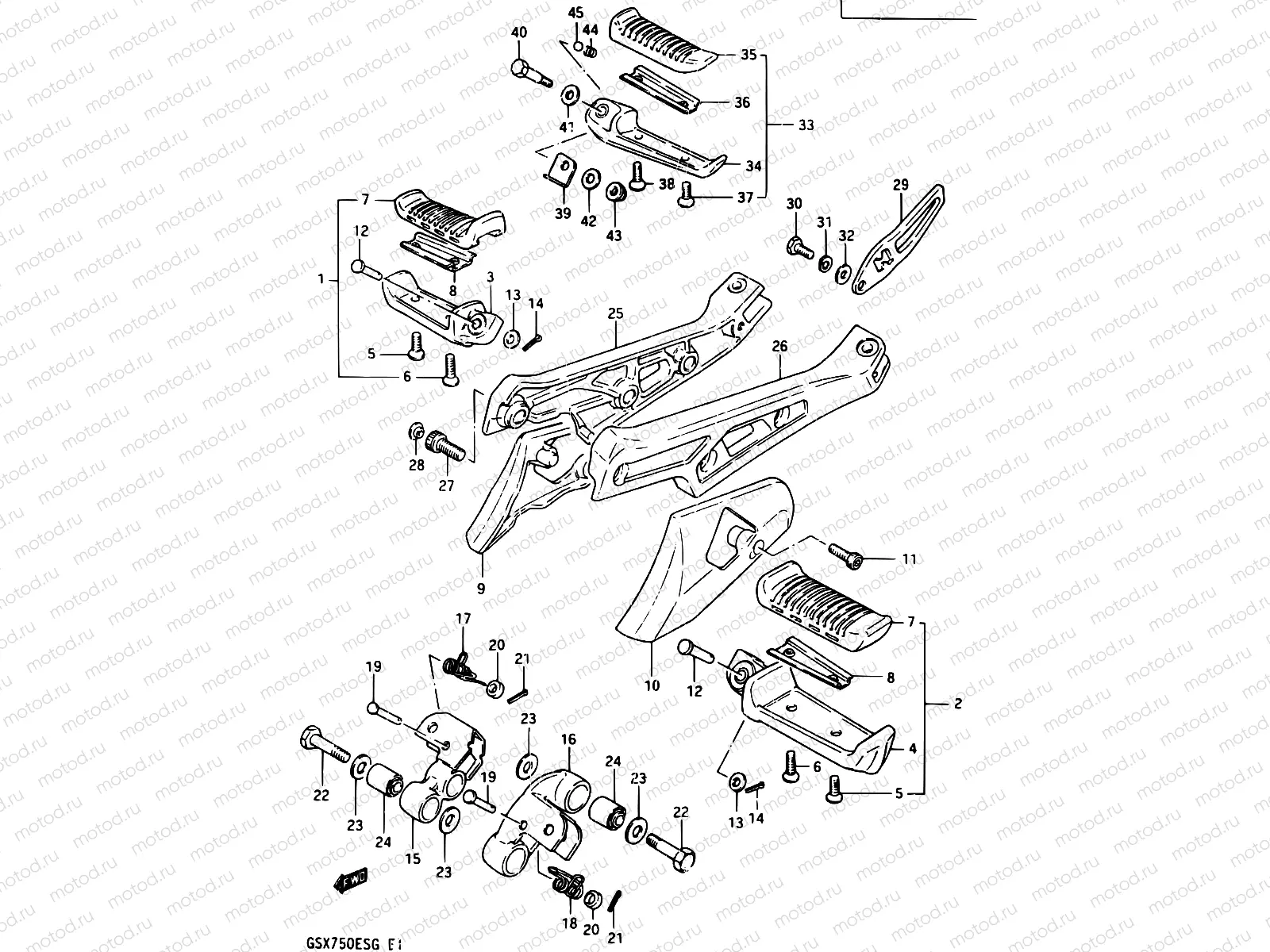

32 - FOOTREST

32 - FOOTREST

Например: 43501-31300

1

43501-31300

Footrest assy, front rh

2

43502-31300

Footrest assy, front lh

3

43510-31300

.bar, front footrest rh

4

43520-31300

BAR,FR FOOTREST,L

3 910 ₽/шт

5

02112-05127

Болт

81 ₽/шт

6

02112-05167

Болт

81 ₽/шт

7

43550-31300

RUBBER,FOOTREST

1 736 ₽/шт

8

43580-33301

Plate,fr footre

9

43585-31300

Cover, front footrest rh

10

43595-31300

Cover, front footrest lh

11

07130-0620B

БОЛТ

97 ₽/шт

12

09200-08002

ШТИФТ

194 ₽/шт

13

08322-0108A

Шайба

85 ₽/шт

14

04111-2020A

Штифт

81 ₽/шт

15

43530-31300

Holder, footrest rh

16

43540-31300

Holder, footrest lh

17

09448-12013

Spring, rh

18

09448-12014

Spring

19

09200-06010

PIN

1 250 ₽/шт

20

09180-06299

Кольцо/шайба

1 720 ₽/шт

21

04111-2020A

Штифт

81 ₽/шт

22

09100-10191

Vis

23

09160-10005

WASHER(10.5X20X3.2)

980 ₽/шт

24

09319-10047

BUSH

6 060 ₽/шт

25

43811-31300

Bracket, muffler rh

26

43821-31300

Bracket, muffler lh

27

07130-1025B

Болт

162 ₽/шт

28

43575-34500

CAP

170 ₽/шт

29

43671-31300

Foot guard, rear

30

01500-0816B

Болт

85 ₽/шт

31

08321-01087

Пластина замка

81 ₽/шт

32

08322-01087

Шайба

81 ₽/шт

33

43600-31300

FOOTREST ASSY,PILLION,R

3 324 ₽/шт

33

43700-31300

Footrest assy, pillion lh

34

43610-45501

.bar, pillion footrest rh

34

43710-45501

.bar, pillion footrest lh

35

43612-31300

Резина

864 ₽/шт

36

43632-45501

PLATE,RUBBER STOPPER

203 ₽/шт

37

02122-05127

Болт

1 090 ₽/шт

38

02122-05167

Болт

82 ₽/шт

39

43635-09300

Plate,spring st

39

43735-09300

Plate, spring stop lh

40

09111-06035

Vis

41

09181-08004

Shim 8.2x22x0.2

42

08322-01087

Шайба

81 ₽/шт

43

08319-31067

Гайка

153 ₽/шт

44

09440-05003

ПРУЖИНА

113 ₽/шт

45

06111-07004

Шарик-защёлка №1

81 ₽/шт
