Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX 750 SUZUKI GSX750E F SUZUKI 29 - WIRING WARNESS

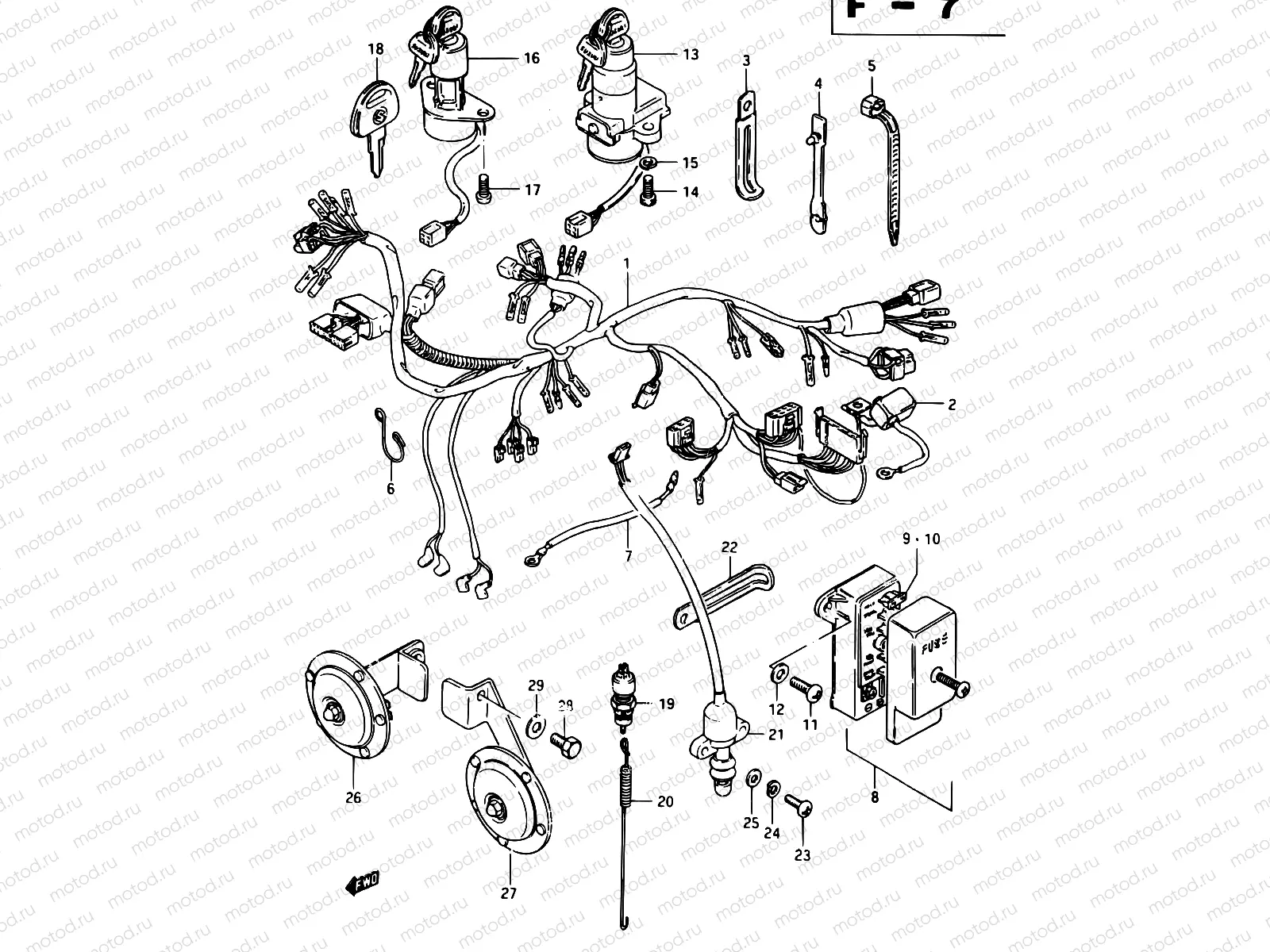

29 - WIRING WARNESS

29 - WIRING WARNESS

Например: 36610-31310

1

36610-31310

Wiring harness

1

36610-31360

Wiring harness

2

33624-38310

CAP,BATTERY PLUS TERMINAL

364 ₽/шт

3

09404-06036

Clamp(L:80)

194 ₽/шт

3

09404-06435

CLAMP(L:135)

226 ₽/шт

4

09407-05403

CLAMP,L:88

97 ₽/шт

5

09407-14403

КЛЕММА

221 ₽/шт

5

09407-18402

Струбцина (L:165)

211 ₽/шт

5

09407-25401

Хомут

221 ₽/шт

6

36619-44002

Clip

7

36851-31300

Lead wire, oil temp gauge

8

36740-45D00

Box assy, fuse

9

09481-10010-025

Fusible (10A)

10

09481-10015-025

Fusible (15A)

11

02112-3612A

Болт

1 250 ₽/шт

12

08322-0106A

Шайба

81 ₽/шт

13

37100-30B20

Ign.switch

13

37100-31352

Ign switch/stee

14

07130-06167

Болт

1 840 ₽/шт

15

08321-01067

Шайба, стопорная

81 ₽/шт

16

37110-05303

Switch Assy,ignition

10 244 ₽/шт

17

02142-06127

Винт 6X12

81 ₽/шт

18

37146-47010

KEY,BLANK

1 541 ₽/шт

19

37740-45D00

SWITCH ASSY,STOP LAMP

1 224 ₽/шт

20

09443-06005

SPRING

2 310 ₽/шт

21

37840-31302

Switch, side stand warning

22

09404-06036

Clamp(L:80)

194 ₽/шт

23

02112-0520B

Болт

82 ₽/шт

24

08321-0105A

Пластина замка

81 ₽/шт

25

08322-0105B

Шайба

81 ₽/шт

26

38501-31310

Horn, high pitched

27

38502-31310

Horn, low pitched

28

01500-0816B

Болт

85 ₽/шт

29

08322-0108A

Шайба

85 ₽/шт
