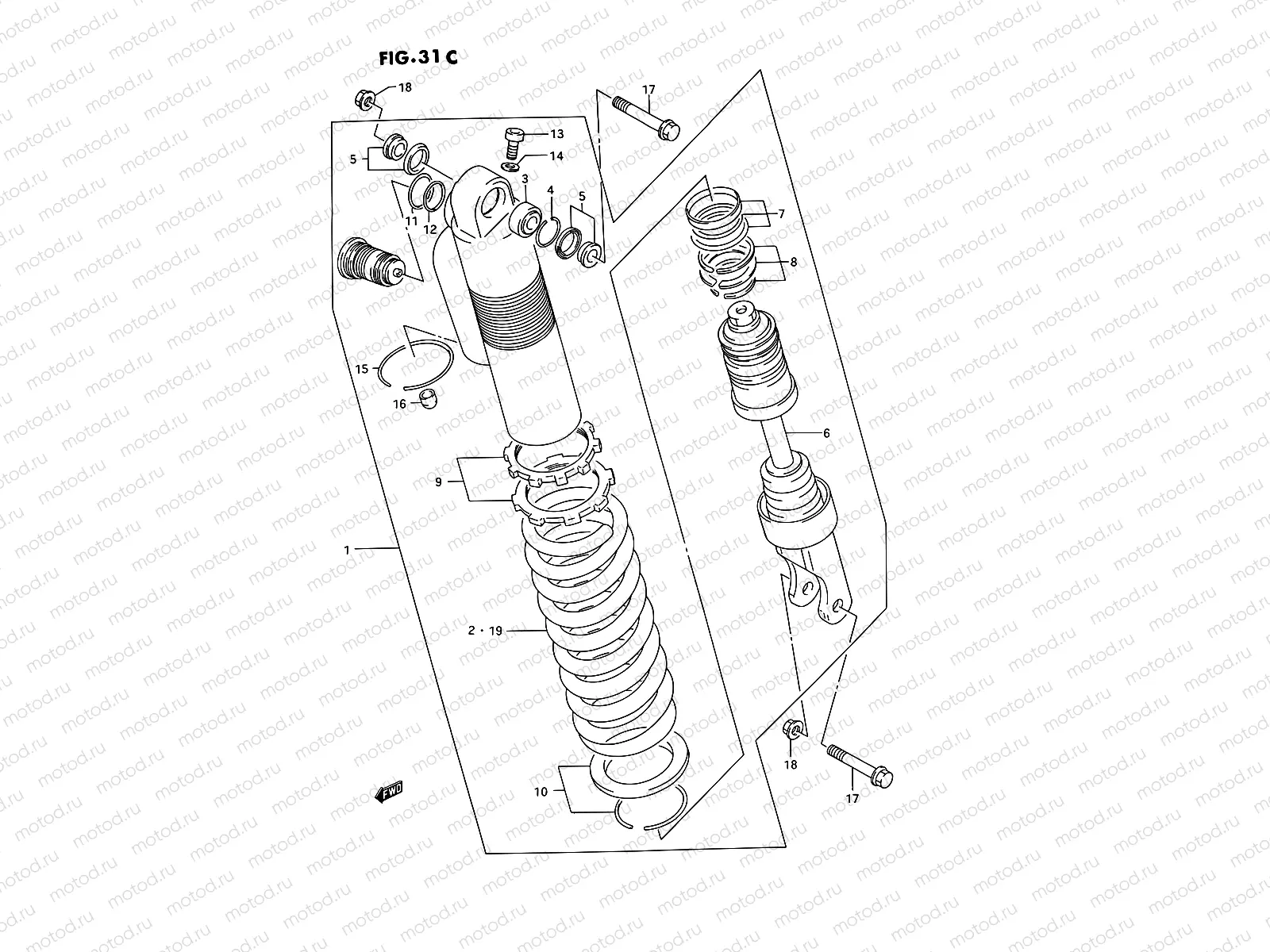

31C - SHOCK ABSORBER (MODEL S)

31C - SHOCK ABSORBER (MODEL S)
Например: 62100-43D70-163
1
62100-43D70-163
Absorber assy, rear shock (yellow)
2
62211-37E00
Spring
3
62175-28E00
Brg,rr cushion
4
62277-27C40
Кольцо стопорное
187 ₽/шт
5
62680-28E00
COLLAR SET,RR SHOCK ABSORBER
3 519 ₽/шт
6
62120-43D70
.rod, piston
7
62150-28E00
O ring set,rsa
8
62290-28E00
Ring stopperset
9
62190-28E00
Adjuster set
10
62220-28E00
Spring seat set
11
62131-28E00
O RING
289 ₽/шт
12
51174-43D00
O RING,CTR BOLT UPR
340 ₽/шт
13
62281-28E40
.bolt
14
51183-31030
Прокладка
210 ₽/шт
15
62278-27C40
.ring, stopper
16
51294-20400
CAP
368 ₽/шт
17
62311-28E00
BOLT,RR SHOCK ABSORBER
414 ₽/шт
18
09159-10115
Гайка
289 ₽/шт
19
62211-27C90
Spring (hard)
19
62211-36E00
Spring (soft)
