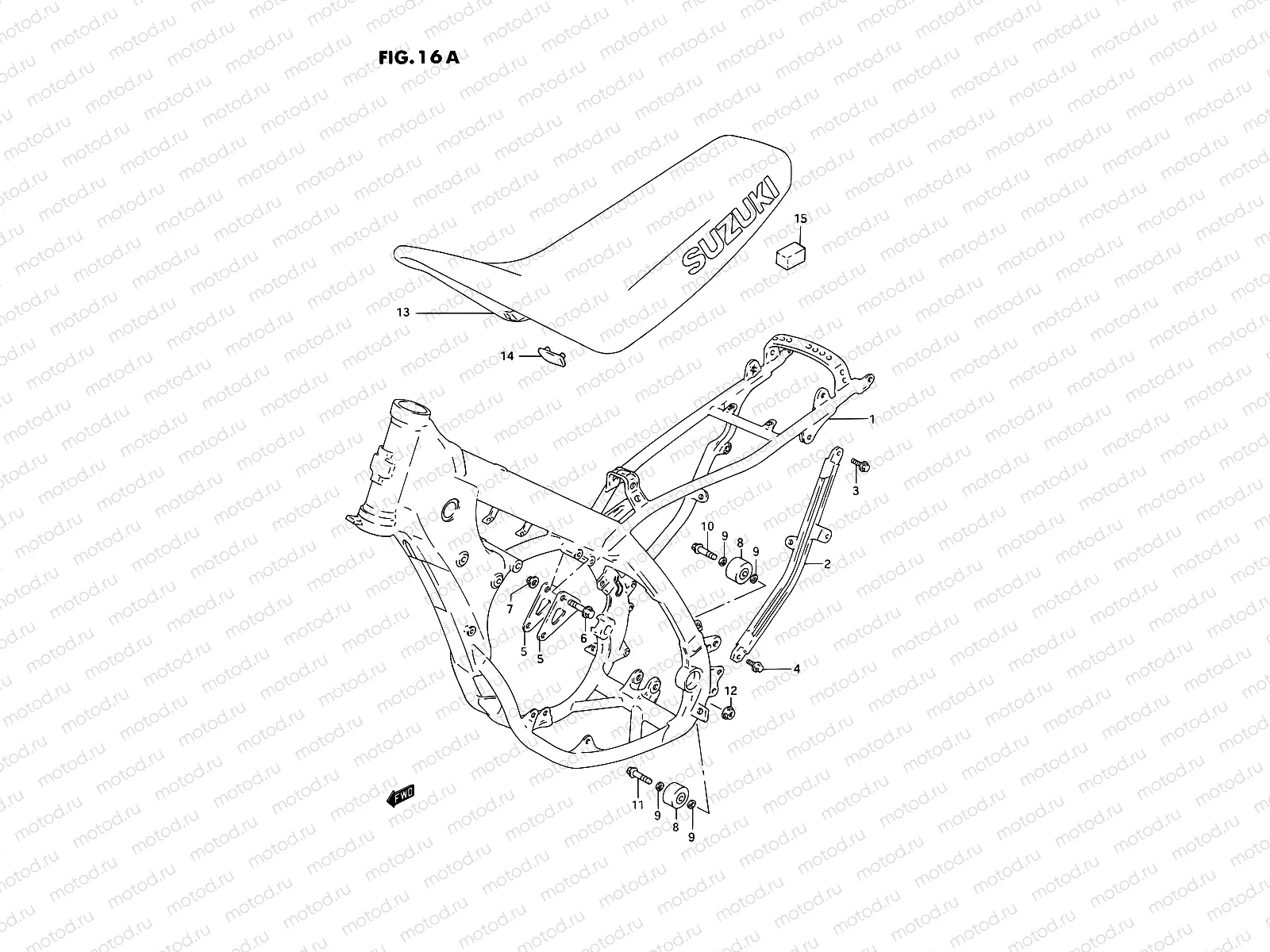

16A - FRAME - SEAT (MODEL R/S)

16A - FRAME - SEAT (MODEL R/S)

Например: 41100-43D30-24K

1

41100-43D30-24K

Frame set (charcoal)

2

41670-28E01

Tube,frame side

3

01560-0820A

Болт

1 520 ₽/шт

4

01560-0816B

OLT

1 840 ₽/шт

5

41993-43D02

Plate,mnt.upper

6

09103-08083

BOLT(8X41)

179 ₽/шт

7

09159-08067

Гайка

344 ₽/шт

8

43910-27C11

ROLLER,CHAIN

4 262 ₽/шт

9

08211-08121

Шайба

1 170 ₽/шт

10

09103-08083

BOLT(8X41)

179 ₽/шт

11

09103-08043

БОЛТ

114 ₽/шт

12

08319-31087

Гайка

178 ₽/шт

13

45100-28E12-D6Z

Saddle assy

14

09329-10001

CUSHION

194 ₽/шт

15

45299-28E00

CUSHION,SEAT

274 ₽/шт
