Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI GN 125 SUZUKI GN125 D SUZUKI 31A - REAR COMBINATION LAMP (E22)

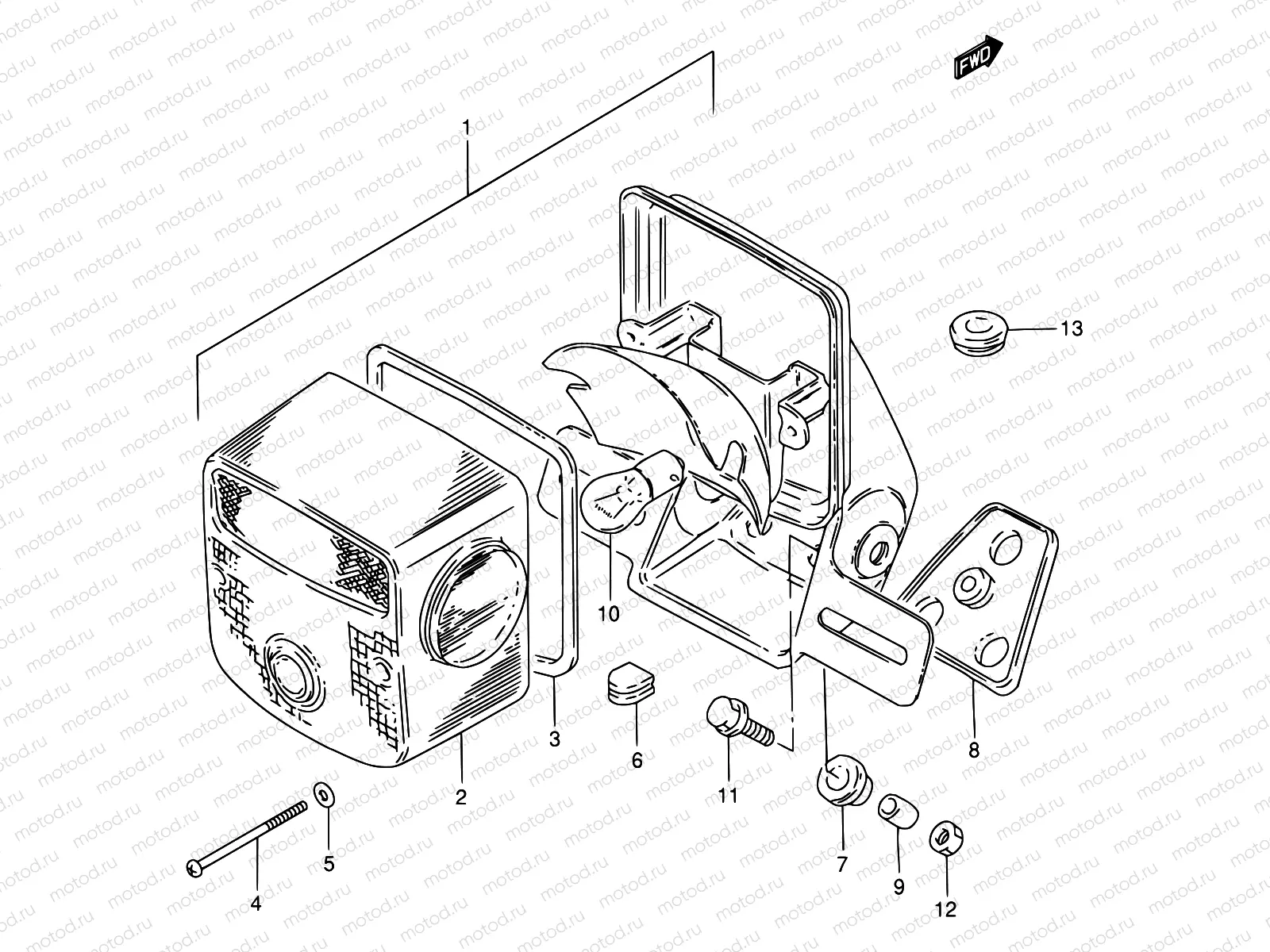

31A - REAR COMBINATION LAMP (E22)

31A - REAR COMBINATION LAMP (E22)

Например: 35710-38300

1

35710-38300

LAMP ASSY,RR COMBINATION

18 064 ₽/шт

2

35712-38350

Линза

10 965 ₽/шт

3

35713-30510

Gasket

4

02112-04558

Болт

82 ₽/шт

5

35627-43010

GASKET

179 ₽/шт

6

35728-30640

.grommet

7

35764-26470

CUSHION

172 ₽/шт

8

35765-26470

CUSHION

555 ₽/шт

9

35766-26470

Кольцо/шайба

141 ₽/шт

10

40503-00838-069

P21/5w,5w, bay1 (12V 21/5W BAY15d)

11

09116-06167

БОЛТ

145 ₽/шт

12

08310-0006B

Гайка

81 ₽/шт

13

09308-09004

GROMMET

1 250 ₽/шт
