Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI GN 125 SUZUKI GN125 D SUZUKI 20 - SPEEDOMETER - TACHOMETER

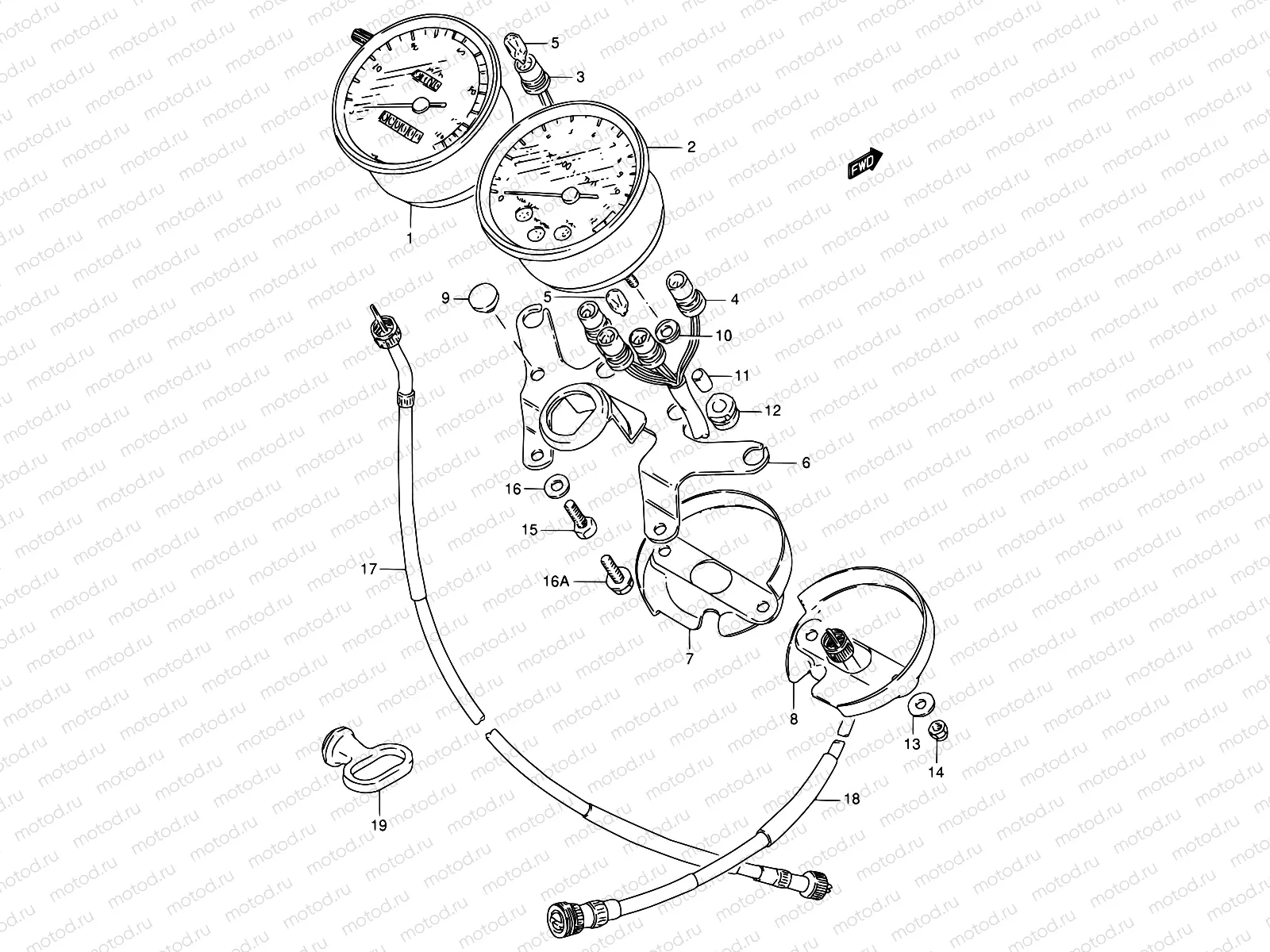

20 - SPEEDOMETER - TACHOMETER

20 - SPEEDOMETER - TACHOMETER

Например: 34110-05310

1

34110-05310

Meter,speed (km

1

34110-05300

СП

20 137 ₽/шт

2

34210-03910

Tachometer

3

34173-05300

Socket, speedometer

4

34273-05320

Socket, tachometer

5

09471-12028

Лампочка

210 ₽/шт

6

34950-05300

BRACKET,METER

7

34193-05300

COVER,METER UNDER

8

34293-05300

COVER,TACHOMETER UND

9

34956-28011

CUSHION,METER

250 ₽/шт

10

09160-05013

Шайба

81 ₽/шт

11

34187-28310

Spacer

12

34189-28310

CUSHION,METER

301 ₽/шт

13

09160-05024

Шайба

900 ₽/шт

14

08313-1005A

Гайка

1 090 ₽/шт

15

01550-0616B

БОЛТ

81 ₽/шт

16

08322-0106A

Шайба

81 ₽/шт

17

34910-05311

Cable,speedometer

5 005 ₽/шт

18

34940-05301

Cable assy,tach

19

58621-21204

Направляющая кабеля

824 ₽/шт
