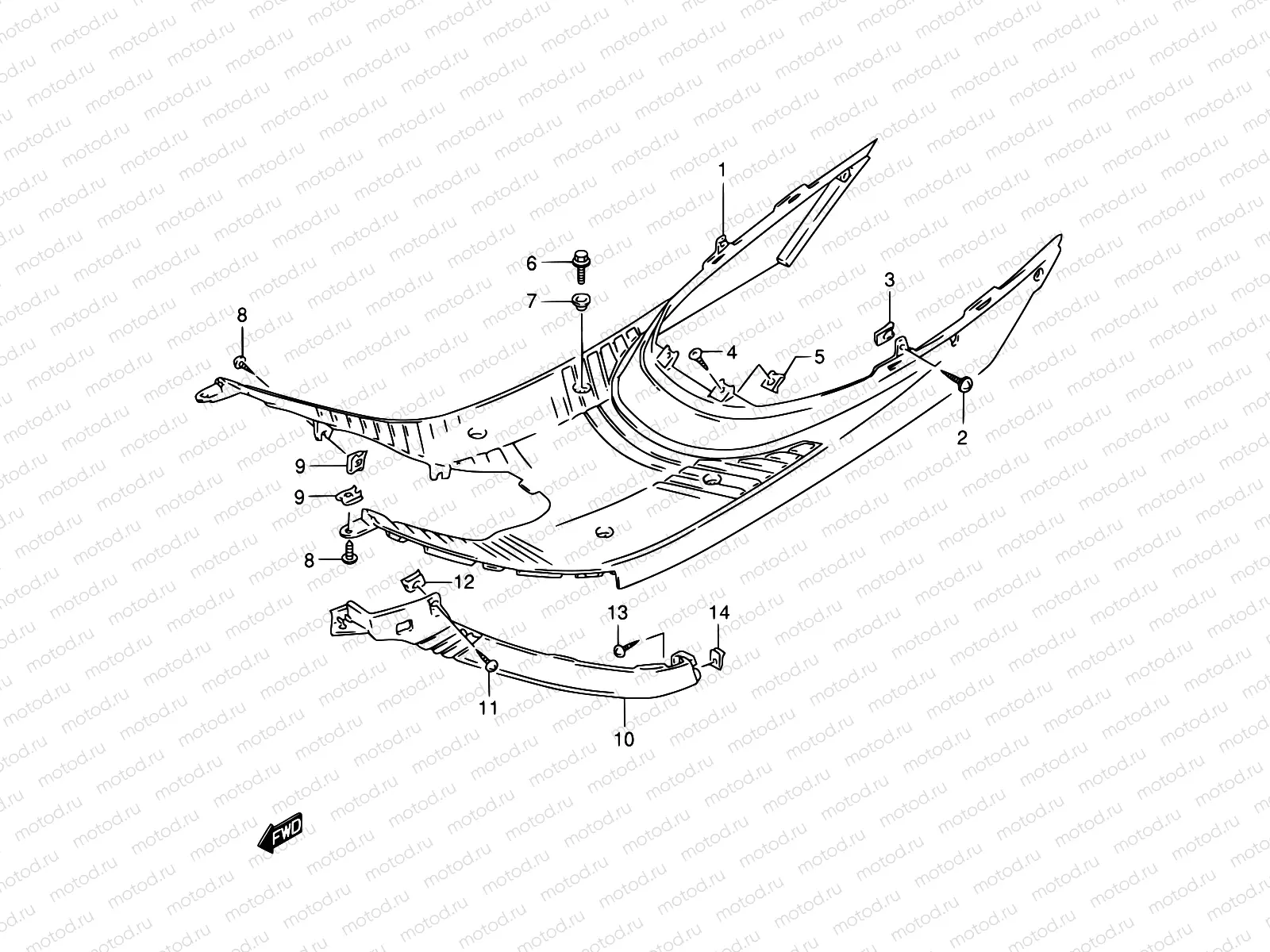

31 - REAR LEG SHIELD

31 - REAR LEG SHIELD
Например: 48121-36C01-29L
1
48121-36C01-29L
Shield, leg rear (white)
1
48121-36C01-Z16
Shield, leg rear (purple)
2
03241-0516A
Винт
81 ₽/шт
3
09148-05020
Гайка
97 ₽/шт
4
03241-M0512-A
Vis
5
09148-05020
Гайка
97 ₽/шт
6
01550-0616B
БОЛТ
81 ₽/шт
7
09169-06071
Шайба
97 ₽/шт
8
03241-0516A
Винт
81 ₽/шт
9
09148-05020
Гайка
97 ₽/шт
10
48285-36C00-29L
Shield, leg side rh (white)
10
48285-36C20-29L
Shield, leg side rh (white)
10
48285-36C00-Z16
Shield, leg side rh (purple)
10
48285-36C20-291
Shield, leg shde rh (black)
10
48286-36C00-29L
Shield, leg side rh (white)
10
48286-36C20-29L
Shield, leg side rh (white)
10
48286-36C00-Z16
Shield, leg side lh (purple)
11
03241-0516A
Винт
81 ₽/шт
12
09148-05020
Гайка
97 ₽/шт
13
03541-0416A
Болт
81 ₽/шт
14
09148-04024
Гайка
97 ₽/шт
