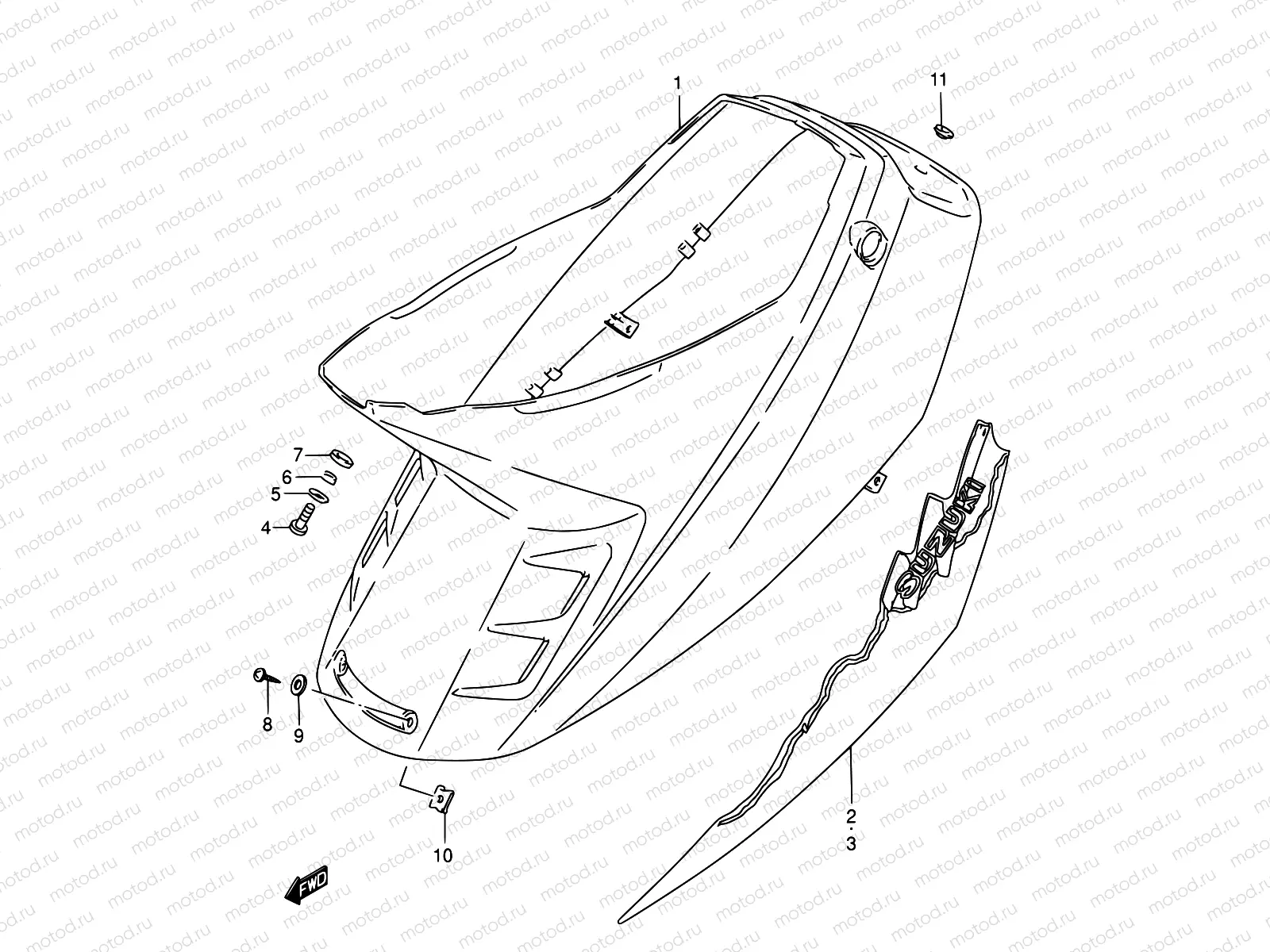

29A - FRAME COVER (MODEL L E04,E21)

29A - FRAME COVER (MODEL L E04,E21)
Например: 47310-36D00-10J
1
47310-36D00-10J
Cover, frame (purple)
1
47310-36D00-13Z
Cover, frame (black)
1
47310-36D00-28V
Cover, frame (red)
2
68131-36D00-1JM
.emblem, frame cover rh
2
68131-36D00-1FU
.emblem, frame cover rh
2
68131-36D00-1FV
.emblem, frame cover rh
3
68141-36D00-1JM
.emblem, frame cover lh
3
68141-36D00-1FU
.emblem, frame cover lh
3
68141-36D00-1FV
.emblem, frame cover lh
4
02142-0616A
Болт
81 ₽/шт
5
09160-06052
Шайба
136 ₽/шт
6
09180-06306
SPACER(6.5X9X5)
1 250 ₽/шт
7
09320-10077
Cushion
1 720 ₽/шт
8
03241-0516A
Винт
81 ₽/шт
9
08322-0105B
Шайба
81 ₽/шт
10
09148-05020
Гайка
97 ₽/шт
11
09169-06071
Шайба
97 ₽/шт
