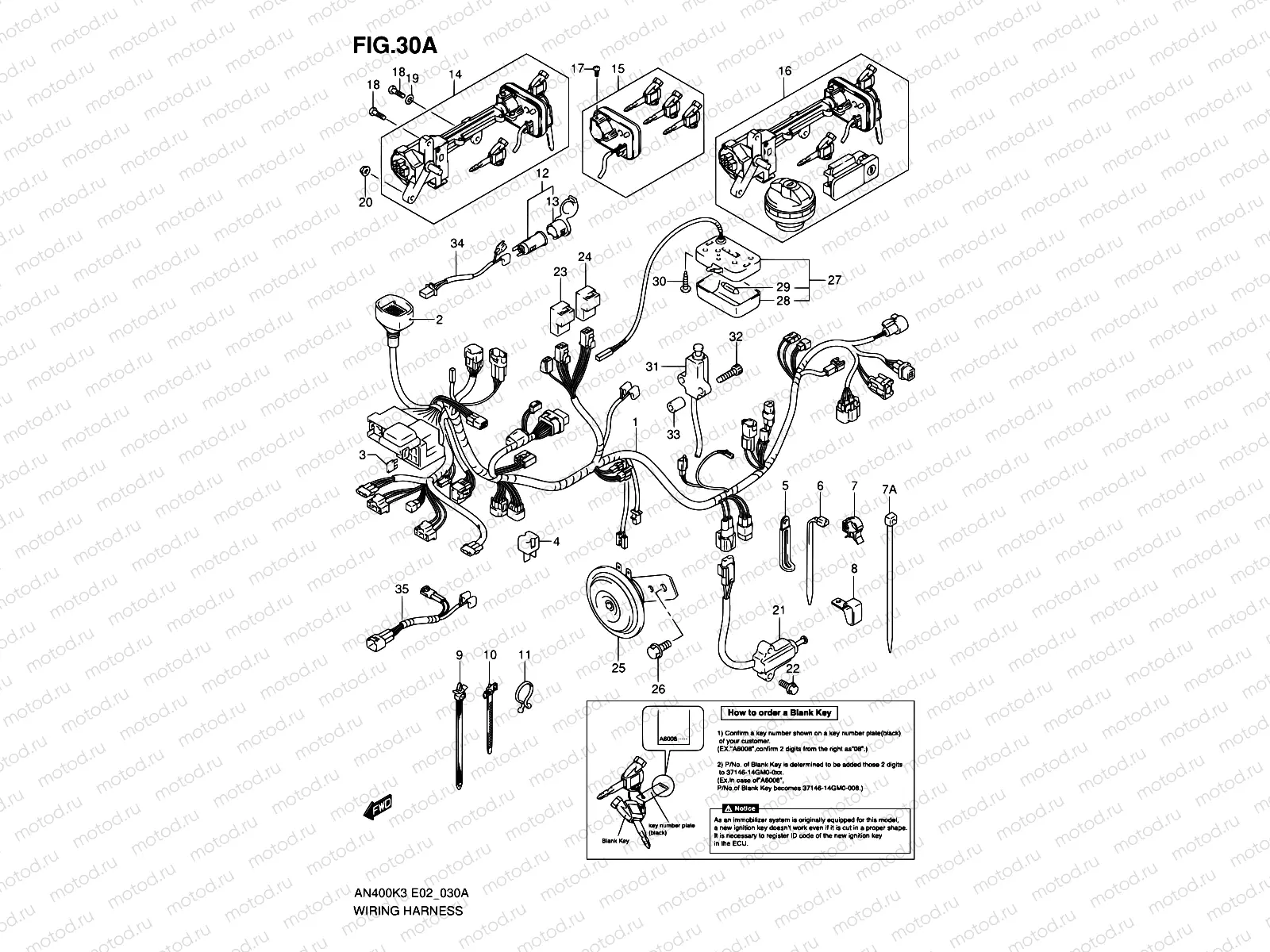

30A - WIRING HARNESS (MODEL K5/K6 IMOBI)

30A - WIRING HARNESS (MODEL K5/K6 IMOBI)

Например: 36610-15GB0

1

36610-15GB0

Harness wire

2

36618-33E00

COVER,SPEEDOMETER COUPLER

438 ₽/шт

3

09481-10504

Ограничитель,10A

1 250 ₽/шт

3

09481-15501-LCP

Fusible (10A)

4

32800-16A00

Диод

1 697 ₽/шт

5

09404-06039

Clamp(L:65)

194 ₽/шт

6

09407-14403

КЛЕММА

221 ₽/шт

6

09407-18402

Струбцина (L:165)

211 ₽/шт

7

09403-10405

CLAMP

1 680 ₽/шт

7

09403-20403

CLAMP

2 030 ₽/шт

7

09403-25401

CLAMP

2 030 ₽/шт

8

36651-14G00

CLAMP

297 ₽/шт

9

09407-11402

КОЛЬЦО

186 ₽/шт

10

09407-12407

CLAMP

2 030 ₽/шт

11

09408-00012

Проводка

1 210 ₽/шт

12

39410-76F00-P4Z

Гнездо

2 522 ₽/шт

13

39441-76F00-P4Z

COVER

735 ₽/шт

14

37110-14854

Lock assy,steer

15

37155-14GB1

Shutter,steerin

16

37101-14813

Lock Set

51 986 ₽/шт

17

37159-14G00

TORX BOLT(5X10)

446 ₽/шт

18

09139-06048

SCREW(6X20)

1 060 ₽/шт

19

09160-06109

Шайба

85 ₽/шт

20

08319-31067

Гайка

153 ₽/шт

21

37840-11X51

Switch Assy,side Stand

6 530 ₽/шт

22

01550-0620B

БОЛТ

81 ₽/шт

23

38740-26E01

Relay Assy,fuel Pump

2 287 ₽/шт

24

38740-26E01

Relay Assy,fuel Pump

2 287 ₽/шт

25

38500-14G00

Звуковой сигнал

5 943 ₽/шт

26

01550-0812B

Болт

97 ₽/шт

27

36210-14G00

LAMP ASSY,TRUNK BOX

4 966 ₽/шт

28

36212-79001

Линза

2 989 ₽/шт

29

09471-12073-LCP

BULB 12V.5W AN650

30

03541-0412A

ШАЙБА

85 ₽/шт

31

37980-14F00

SWITCH ASSY,TRUNK BOX LAMP

4 966 ₽/шт

32

07130-0525B

OLT

97 ₽/шт

33

09180-05301

SPACER(5.5X9.5X10)

1 370 ₽/шт

34

36852-14G00

WIRE,POWER SOURCE LEAD

1 263 ₽/шт

35

36854-14G00

WIRE,IGNITION COIL LEAD

2 991 ₽/шт
