Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 400 Burgman SUZUKI AN400 K6 Burgman 400 (E02,E19,P37,E54) SUZUKI (VIN: JS1BU132, JS1BW111) 26 - ELECTRICAL

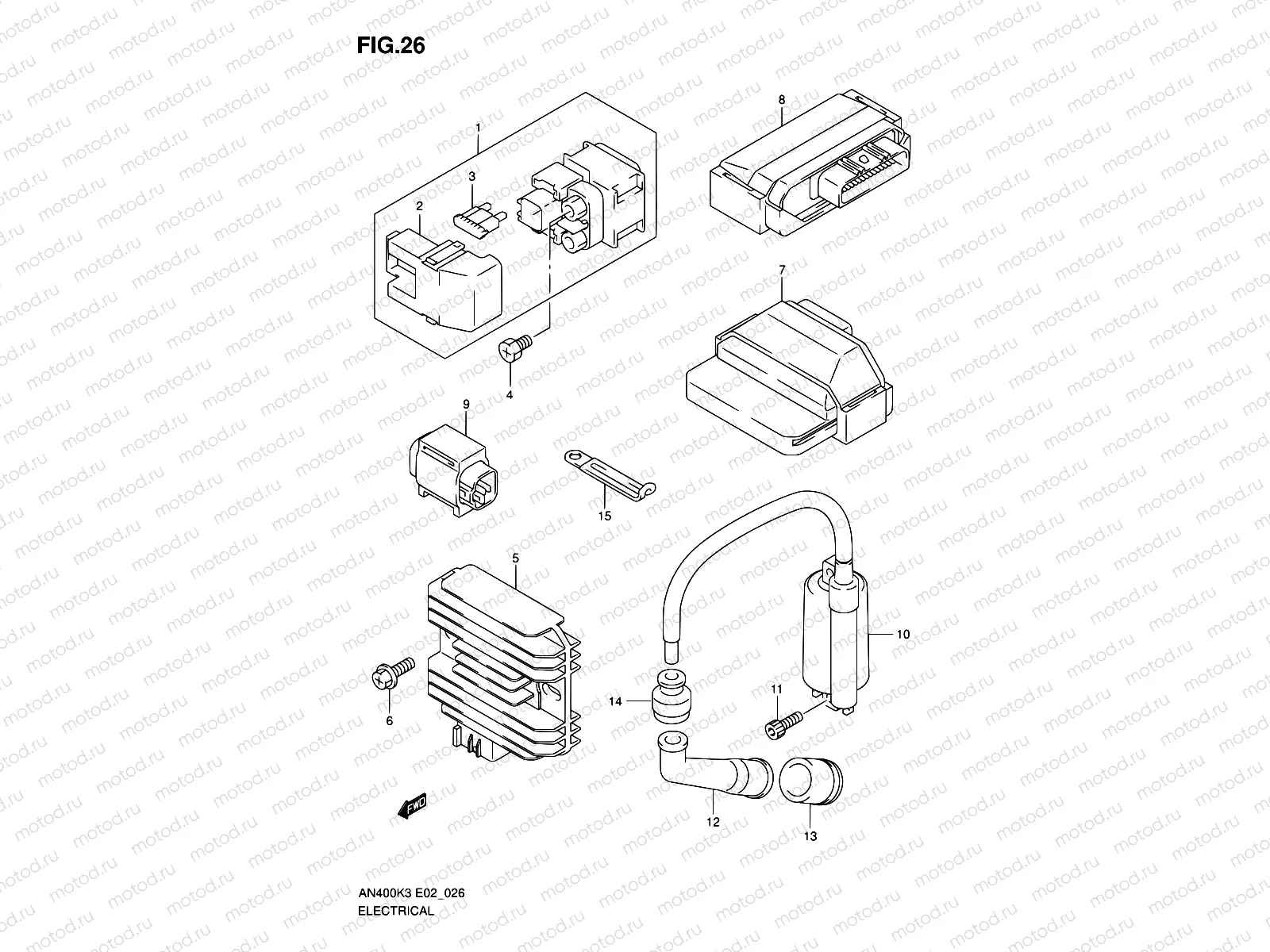

26 - ELECTRICAL

26 - ELECTRICAL

Например: 31800-21E20

1

31800-21E20

Relais - démarreur

2

31861-47E00

Крышка

841 ₽/шт

3

09481-30101

Предохранитель

129 ₽/шт

4

09128-06013

SCREW(6X8)

740 ₽/шт

5

32800-20H00

RECTIFIER ASSY

23 265 ₽/шт

6

02162-0620C

Болт

85 ₽/шт

7

32920-15G40

Control unit, fi

8

32920-15GA0

CONTROL UNIT,FI

56 100 ₽/шт

8

32920-15GD0

Control unit, fi

9

33960-06G10

SENSOR ASSY,FUEL CUT

6 379 ₽/шт

10

33410-14F00

Катушка зажигания

11 183 ₽/шт

11

07130-0520B

Болт

1 520 ₽/шт

12

33510-45010

Колпачок свечи зажигания

2 988 ₽/шт

13

33541-44D00

Заглушка

340 ₽/шт

14

33542-38B00

Уплотнение

162 ₽/шт

15

09404-06036

Clamp(L:80)

194 ₽/шт
