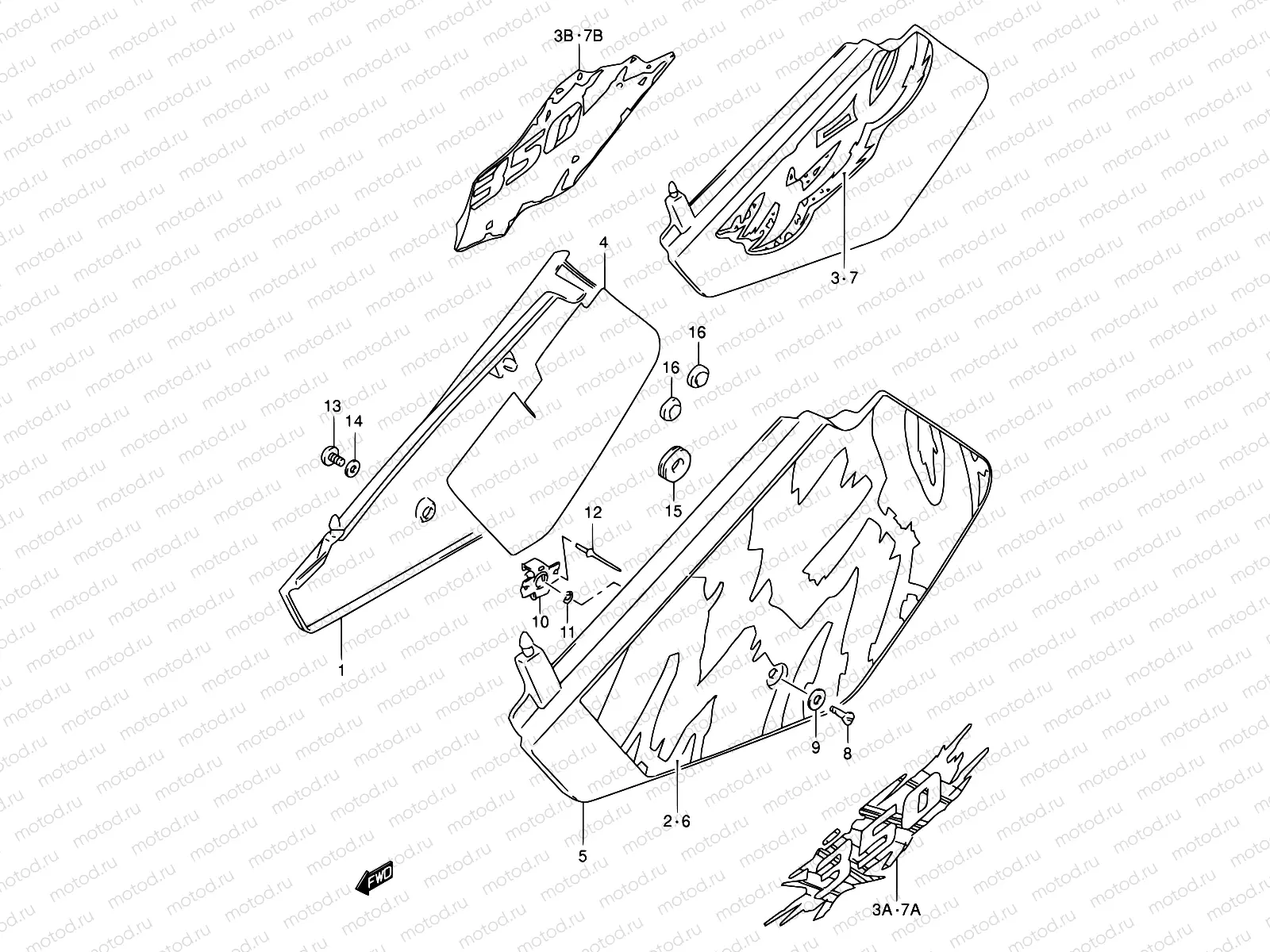

30A - FRAME COVER (MODEL N/P/R/S)

30A - FRAME COVER (MODEL N/P/R/S)
Например: 47111-14D00-30H
1
47111-14D00-30H
Cover,frame,rh
2
68135-14D70-M81
Tape, frame cover rh
4
47166-14D00
Shield,cover,rh
5
47211-14D00-30H
Cover,frame,l
6
68145-14D70-M81
Tape, frame cover lh
8
94472-14D10
Болт
1 380 ₽/шт
9
09160-07014
WASHER(7.2X18X1.6)
1 290 ₽/шт
10
94473-14D00
Retainer, lh
11
94474-12C00
PLATE,FITTING
12
09229-03011
RIVET
1 210 ₽/шт
13
09139-06050
Болт
187 ₽/шт
14
09169-06041
Шайба
85 ₽/шт
15
09320-08029
CUSHION
153 ₽/шт
16
09321-10018
САЙЛЕНТБЛОК
238 ₽/шт
