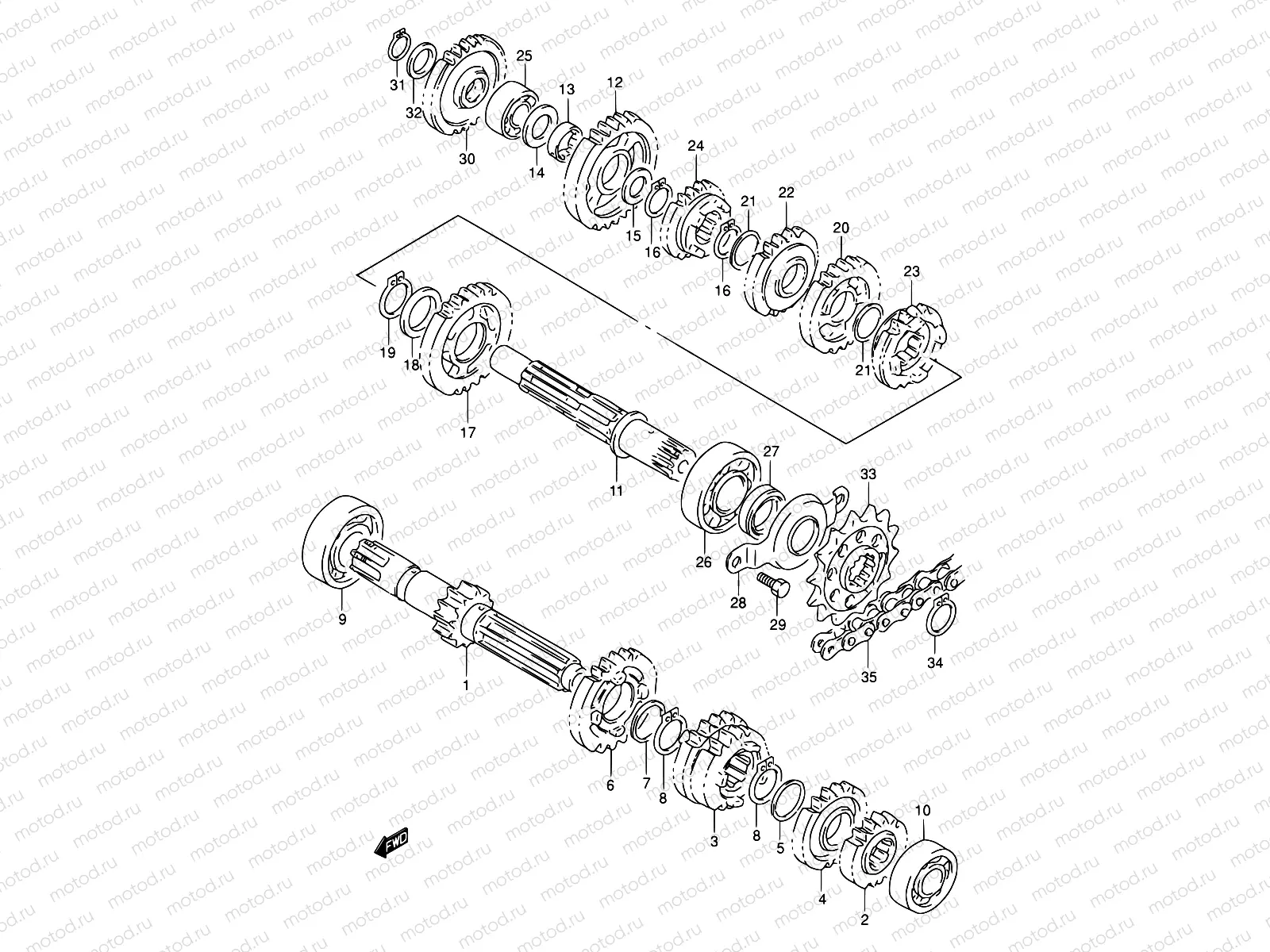

15 - TRANSMISSION (%E.NO.106032)

15 - TRANSMISSION (%E.NO.106032)

Например: 24120-14D03

1

24120-14D03

SHAFT,COUNTER(NT:12)

11 300 ₽/шт

2

24221-14D01

GEAR,2ND DRIVE

6 452 ₽/шт

3

24231-14D00

GEAR,3RD & 4TH DRIVE(NT:18/18)

7 820 ₽/шт

4

24251-14D00

GEAR,5TH DRIVE(NT:21)

9 690 ₽/шт

5

09181-22111

SHIM(22X26X1)

1 990 ₽/шт

6

24260-14D00

Gear, 6th drive (nt:23)

7

09181-22139

SHIM,22X28X1.0

204 ₽/шт

8

09380-22006

КЛИПС

194 ₽/шт

9

09262-20145

ПОДШИПНИК КАЧЕНИЯ

1 503 ₽/шт

10

09262-17027

Подшипник

1 683 ₽/шт

11

24130-14D00

riveshaft

12

24311-14D01

GEAR,1ST DRIVEN(NT:29)

6 569 ₽/шт

13

24312-14D00

BUSH,1ST DRIVEN GEAR

1 365 ₽/шт

14

08211-17322

WASHER

1 520 ₽/шт

15

09181-22167

SHIM,22X30X1

194 ₽/шт

16

09380-22006

КЛИПС

194 ₽/шт

17

24320-14D00

GEAR,2ND DRIVEN(NT:26)

6 295 ₽/шт

18

09181-25167

Шайба

194 ₽/шт

19

09380-25010

КЛИПС

210 ₽/шт

20

24331-14D01

GEAR,3RD DRIVEN(NT:24)

6 295 ₽/шт

21

09181-22139

SHIM,22X28X1.0

204 ₽/шт

22

24341-14D00

GEAR,4TH DRIVEN(NT:20)

5 787 ₽/шт

23

24351-14D01

GEAR,5TH DRIVEN(NT:20)

10 710 ₽/шт

24

24361-14D01

GEAR,6TH DRIVEN(NT:19)

8 755 ₽/шт

25

09262-17038

Roulement

26

09262-22024

BEARING(22X56X16)

4 418 ₽/шт

27

09283-22025

SEAL,OIL(22X34X7)

1 258 ₽/шт

28

24751-14D00

RETAINER,DRIVE SHAFT OIL SEAL

504 ₽/шт

29

01500-0612B

Болт

1 210 ₽/шт

30

26260-14D90

Gear, kick idle (nt:27)

31

09380-17001

CIRCLIP

162 ₽/шт

32

09181-17167

Шайба

194 ₽/шт

33

27511-47D00

SPROCKET(NT:14)

3 030 ₽/шт

34

09380-22012

CIRCLIP

1 840 ₽/шт

35

27600-14A20-110

CHAIN

14 741 ₽/шт
