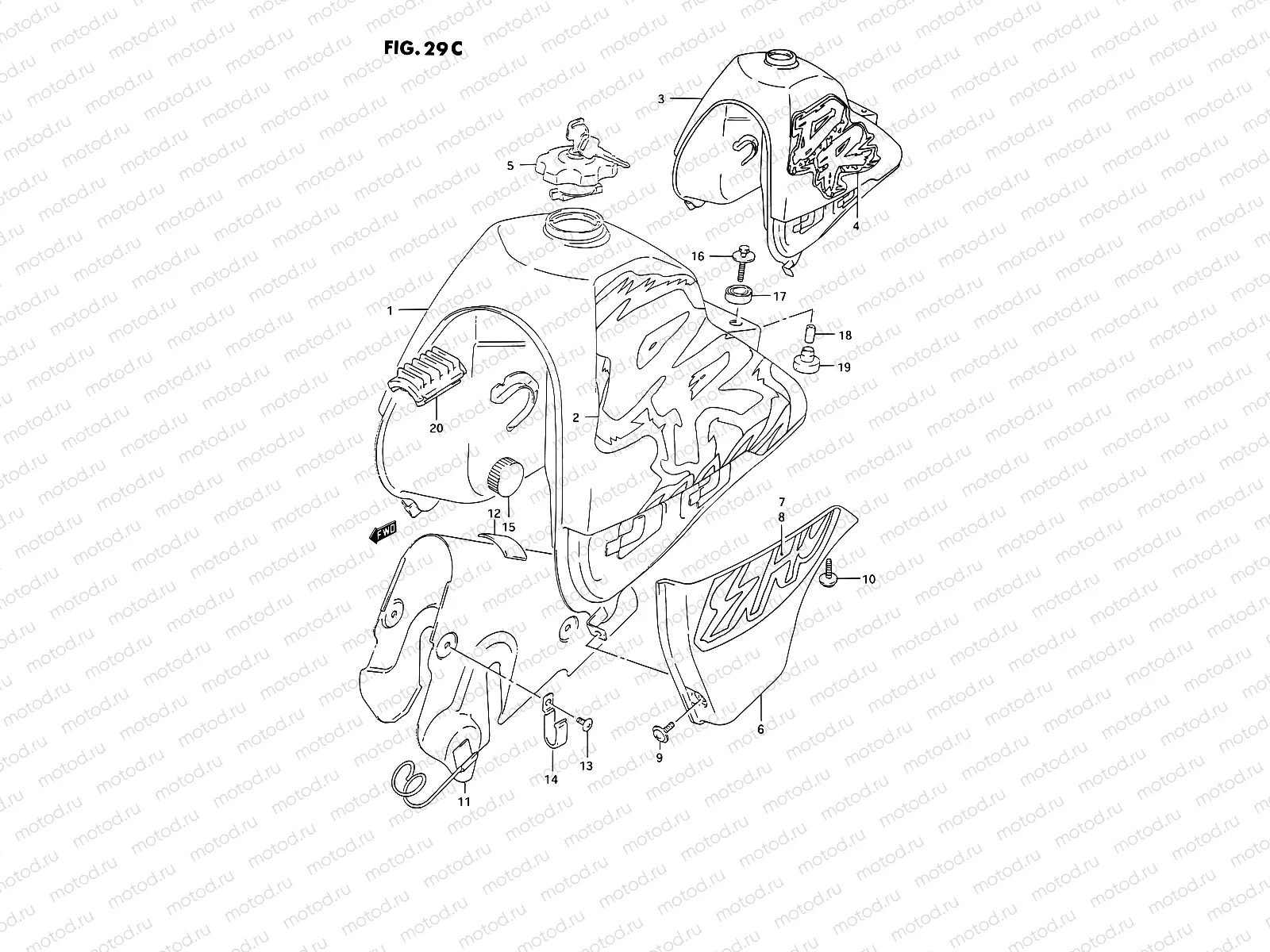

29C - FUEL TANK (DR350SHN/SHP)

29C - FUEL TANK (DR350SHN/SHP)

Например: 44110-15D11-13L

1

44110-15D11-13L

5

44200-03811

Fuel cap

6

44171-15D00-30H

COVER,FUEL TANK,R

2 229 ₽/шт

6

44181-15D00-30H

Cover,tank,l

9

09136-06002

SCREW(6X12)

1 410 ₽/шт

10

02142-06107

Болт

85 ₽/шт

10

02142-0610B

Винт держатель

85 ₽/шт

11

49130-15D20

Heat shield, fuel tank

12

63191-25C00

USHION

204 ₽/шт

13

02142-0508A

SCREW

85 ₽/шт

14

09404-06039

Clamp(L:65)

194 ₽/шт

15

09329-10016

САЙЛЕНТБЛОК

221 ₽/шт

16

09116-06172

Болт

153 ₽/шт

17

09320-14013

Валик топливного бака

221 ₽/шт

18

09180-06271

Кольцо/шайба

172 ₽/шт

19

09320-10038

CUSHION

115 ₽/шт

20

44541-15D01

amper (Upper)
