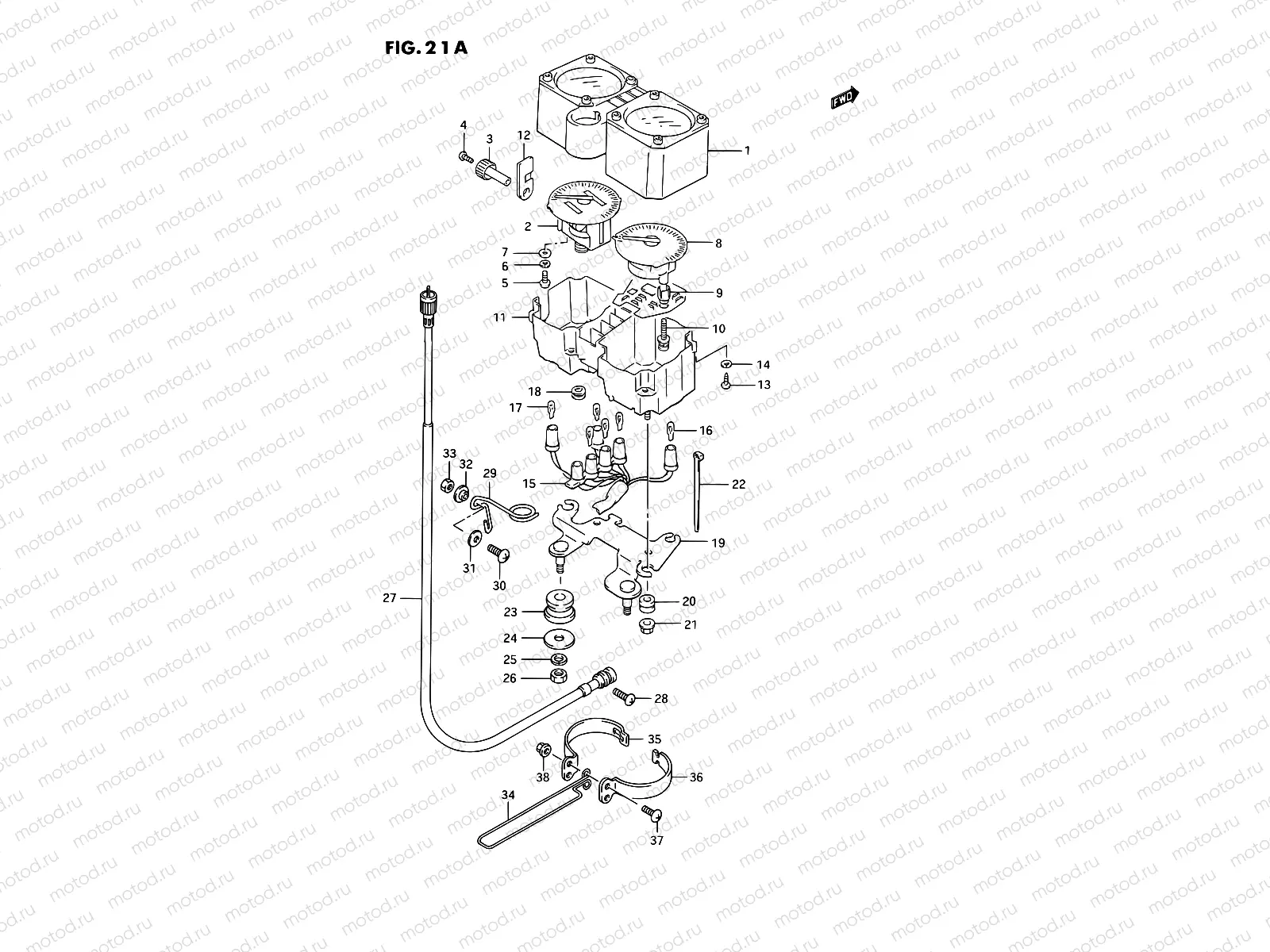

21A - SPEEDOMETER (DR350SHN/SHP/SHR)

21A - SPEEDOMETER (DR350SHN/SHP/SHR)

Например: 34150-14D20

1

34150-14D20

METER HOOD

2

34110-14D10

СП

34 017 ₽/шт

3

34124-44B30

KNOB,TRIP

559 ₽/шт

4

34184-12D00

SCREW,TRIP KNOB

152 ₽/шт

5

02112-0310A

Болт

1 060 ₽/шт

6

09162-03001

Шайба блокирующая

900 ₽/шт

7

08322-0103B

Шайба

1 370 ₽/шт

8

34210-14D00

ТАХОМЕТР

42 636 ₽/шт

9

34187-14A00

Кольцо/шайба

426 ₽/шт

10

02112-74253

Vis

11

34111-44B10

Case,meter

12

34196-14A00

CUSHION,METER

852 ₽/шт

13

03111-0512A

Болт

85 ₽/шт

14

08321-0105A

Пластина замка

81 ₽/шт

15

34170-44B11

SOCKET,METER

10 792 ₽/шт

16

09471-12085-LCP

Bulb (12v3w)

17

09471-12108

ЛАМПА НАКАЛИВАНИЯ

226 ₽/шт

18

34194-14A00

Cap

19

34950-14D00

BRACKET

7 698 ₽/шт

20

34996-43410

ВТУЛКА УПЛОТНИТЕЛЬНАЯ

170 ₽/шт

21

09160-05037

Шайба

97 ₽/шт

21

08310-0005B

Гайка

1 370 ₽/шт

22

09404-10417

Струбцина L:97

1 330 ₽/шт

23

34956-31001

CUSHION,METER BRACKET

501 ₽/шт

24

09160-08135

Шайба

113 ₽/шт

25

08321-0108B

Пластина замка

81 ₽/шт

26

08310-0008B

Гайка

85 ₽/шт

27

34910-12E01

Cable Assy,speedometer

3 740 ₽/шт

28

02112-0516B

Болт

1 090 ₽/шт

29

34938-03D22

GUIDE,SPEEDOMETER CABLE

594 ₽/шт

30

02142-0616A

Болт

81 ₽/шт

31

09160-06109

Шайба

85 ₽/шт

32

09169-06053

Шайба (6.3X16X1)

97 ₽/шт

33

08310-0006B

Гайка

81 ₽/шт

34

34938-08D01

Guide, cable

35

34926-08D01

Bracket, cabke guide

36

34927-08D00

Bracket, cable guide

37

02142-0516B

Болт

85 ₽/шт

38

08316-1005B

Гайка

1 520 ₽/шт
