Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VS 1400 Intruder SUZUKI VS1400GLF L Intruder (E03,E28,E33) SUZUKI 29 - TURN SIGNAL LAMP

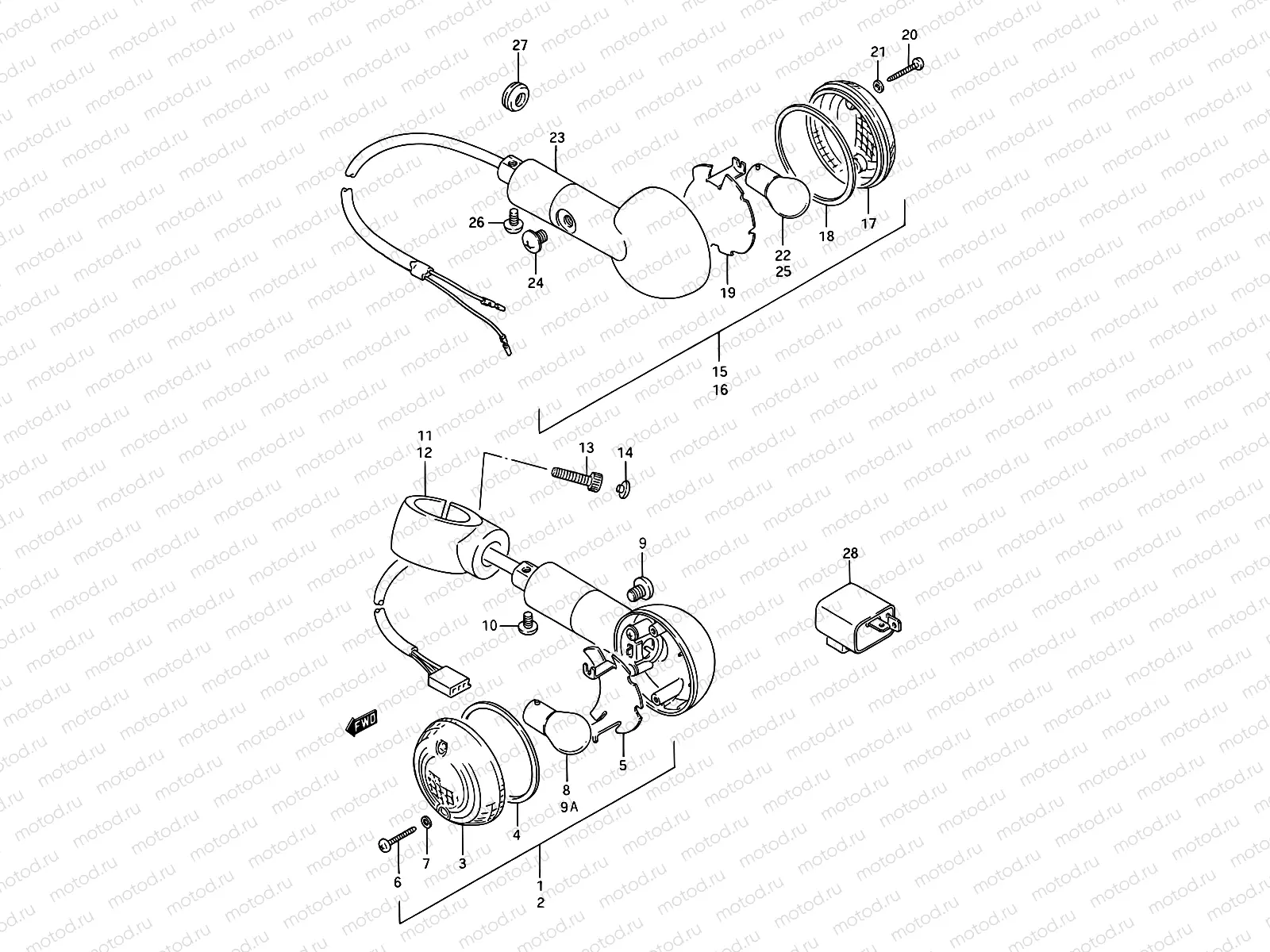

29 - TURN SIGNAL LAMP

29 - TURN SIGNAL LAMP

Например: 35601-38B80

1

35601-38B80

Lamp assy, front turnsignal,r

2

35602-38B80

Lamp assy, front turnsignal,l

3

35612-38A30

Линза

1 658 ₽/шт

4

35613-38A00

Прокладка

239 ₽/шт

5

35624-38A00

Катафот

1 173 ₽/шт

6

03211-0425B

Болт

82 ₽/шт

7

35627-43010

GASKET

179 ₽/шт

8

40503-00838-069

P21/5w,5w, bay1 (12V 21/5W BAY15d)

9

35623-38A01

SCREW

352 ₽/шт

10

02142-06107

Болт

85 ₽/шт

11

35671-38B00

RACKET,FR TURNSIGNAL LAMP,R

9 149 ₽/шт

12

35681-38B00

RACKET,FR TURNSIGNAL LAMP,L

9 149 ₽/шт

13

07130-06167

Болт

1 840 ₽/шт

14

09250-05008

CAP(OD:10)

2 540 ₽/шт

15

35603-38B80

Lamp assy, rear turnsignal,r

16

35604-38B80

Lamp assy, rear turnsignal,l

17

35612-38A01

Линза

931 ₽/шт

18

35613-38A00

Прокладка

239 ₽/шт

19

35624-39A00

REFRECTOR

2 111 ₽/шт

20

03211-0425B

Болт

82 ₽/шт

21

35627-43010

GASKET

179 ₽/шт

22

40503-00838-120

Bulb (12V 21W BA15s)

23

35619-38A01

STAY,TURNSIGNAL LAMP

2 913 ₽/шт

24

35623-38A01

SCREW

352 ₽/шт

26

02142-06107

Болт

85 ₽/шт

27

09308-08016

Damper

28

38610-31X50

RELAY ASSY,TURNSIGNAL

2 805 ₽/шт
