Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VS 1400 Intruder SUZUKI VS1400GLF L Intruder (E03,E28,E33) SUZUKI 15 - MUFFLER

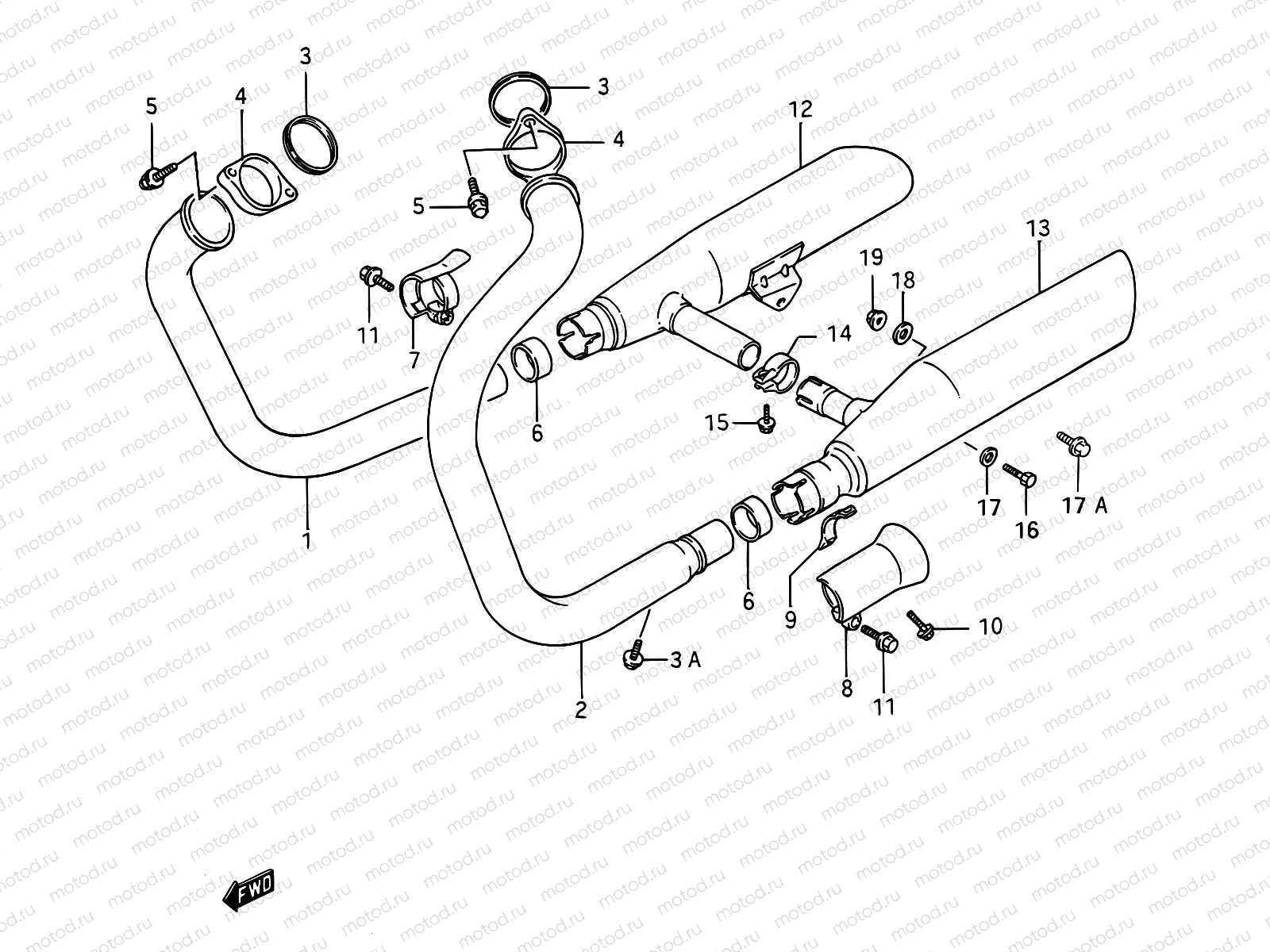

15 - MUFFLER

15 - MUFFLER

Например: 14150-38B21

1

14150-38B21

PIPE,EXHAUST,R

44 458 ₽/шт

2

14160-38B21

PIPE,EXHAUST,L

50 500 ₽/шт

3

14181-45C00

Прокладка трубы

646 ₽/шт

3

01547-06127

Болт платы сальника

980 ₽/шт

4

14182-38A02

CLAMP,EXHAUST PIPE

2 229 ₽/шт

5

09104-08026

BOLT(8X35)

194 ₽/шт

6

14771-38B01

CONNECTOR,MUFFLER

2 659 ₽/шт

7

14450-38B02

CLAMP,CONNECTOR,R

17 087 ₽/шт

8

14460-38B02

CLAMP,CONNECTOR,L

35 386 ₽/шт

9

14785-24A00

CLAMP,MUFFLER COVER

4 066 ₽/шт

10

01547-06207

Болт

85 ₽/шт

11

09103-08241

BOLT(8X35)

3 400 ₽/шт

12

14310-38B40-H01

ODY,MUFFLER,R

129 753 ₽/шт

13

14340-38B40-H01

Глушитель,L

277 100 ₽/шт

14

14772-38B00

CLAMP,EXHAUST COUPLER

645 ₽/шт

15

09118-06086

Болт 6X25

1 680 ₽/шт

16

01500-08307

Болт

97 ₽/шт

17

08322-01087

Шайба

81 ₽/шт

18

09160-08134

Шайба

97 ₽/шт

19

08316-20087

Гайка

1 370 ₽/шт
