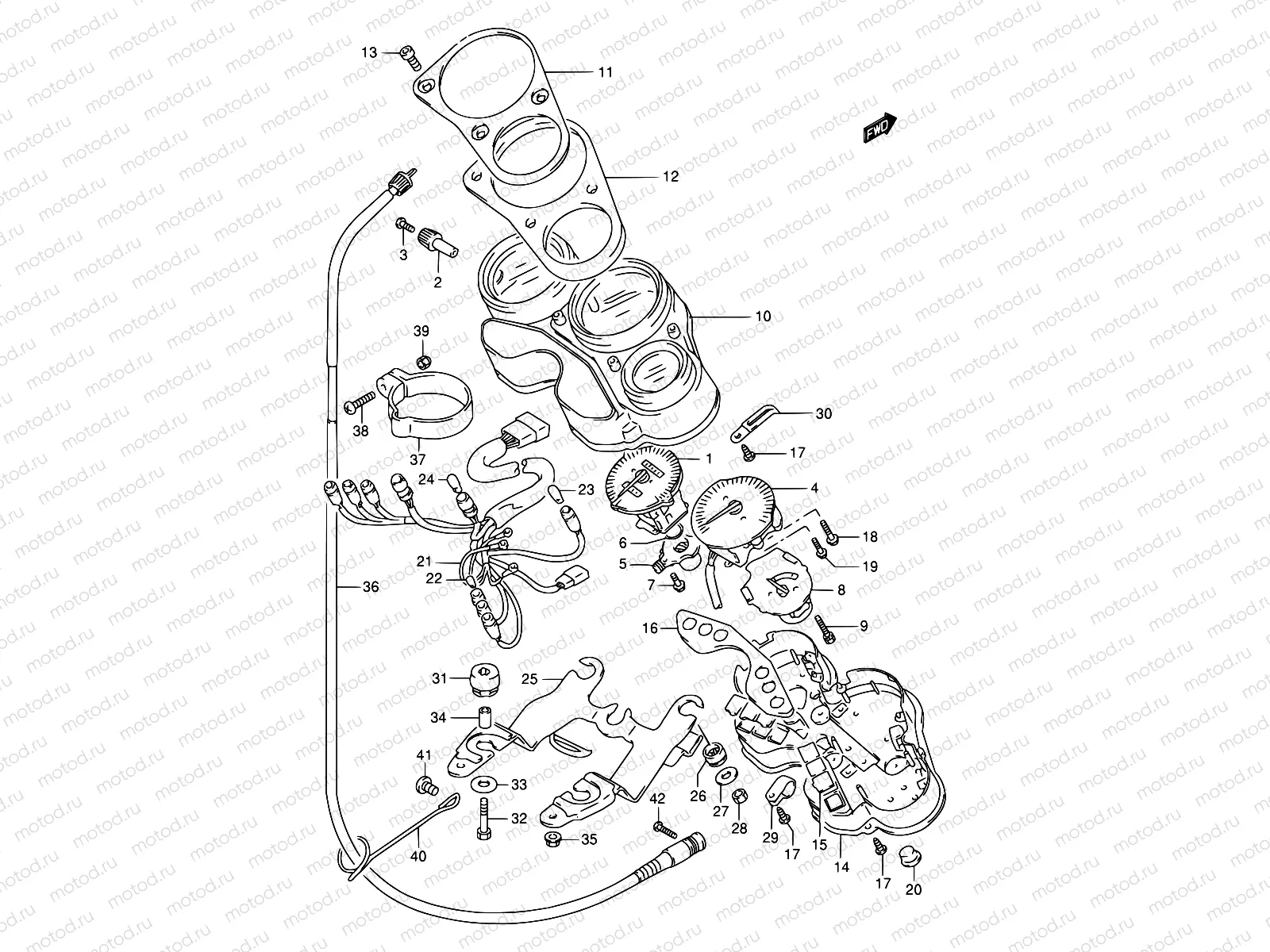

27 - SPEEDOMETER (MODEL P/R)

27 - SPEEDOMETER (MODEL P/R)
Например: 34120-46E11
1
34120-46E11
Speedometer
1
34120-46E21
СП
31 671 ₽/шт
2
34124-17E00
Knob,trip meter
3
09139-02003
Болт
940 ₽/шт
4
34220-46E11
Tachometer
5
34131-19B00
OX,GEAR
9 971 ₽/шт
6
34132-17E00
O RING
254 ₽/шт
7
02112-7410B
SCREW
1 330 ₽/шт
8
34420-17E00
Meter, temparature
9
34383-09400
SCREW(3X22)
172 ₽/шт
10
34150-17E00
Hood,meter
11
34960-46E10
Panel,meter
12
34961-17E01
Damper
13
34186-17E00
Vis
14
34111-46E20
Case, meter
15
36300-46830
.lens set
16
36386-17E00
Panel
17
03541-0416A
Болт
81 ₽/шт
18
34249-17E00
Vis
19
34149-19D00
Screw
20
34198-17E00
CAP
422 ₽/шт
21
34170-46E10
Socket
22
09471-12085-LCP
Bulb (12v3w)
23
09471-12108
ЛАМПА НАКАЛИВАНИЯ
226 ₽/шт
24
09471-12077
BULB(12V1.7W,T10,WB121)
1 990 ₽/шт
25
34950-46E10
Bracket,meter
26
34955-29B50
Damper
27
09160-06056
WASHER(6.5X18X1)
82 ₽/шт
28
08310-00067
Гайка
81 ₽/шт
29
34176-46E00
Clamp
30
09404-06039
Clamp(L:65)
194 ₽/шт
31
09320-09041
GROMMET
321 ₽/шт
32
01500-0630A
Болт
1 330 ₽/шт
33
09160-06088
ШАЙБА
97 ₽/шт
34
09180-06116
Кольцо/шайба
179 ₽/шт
35
08319-3105A
Гайка
1 880 ₽/шт
36
34910-17E01
Câble de compteur de vitesse
37
34938-46E00
Guide, cable no.1
38
02112-0516B
Болт
1 090 ₽/шт
39
08313-1005B
Гайка
1 370 ₽/шт
40
34939-45000
Guide,cable,rh.
41
02142-06107
Болт
85 ₽/шт
42
02112-0516B
Болт
1 090 ₽/шт
