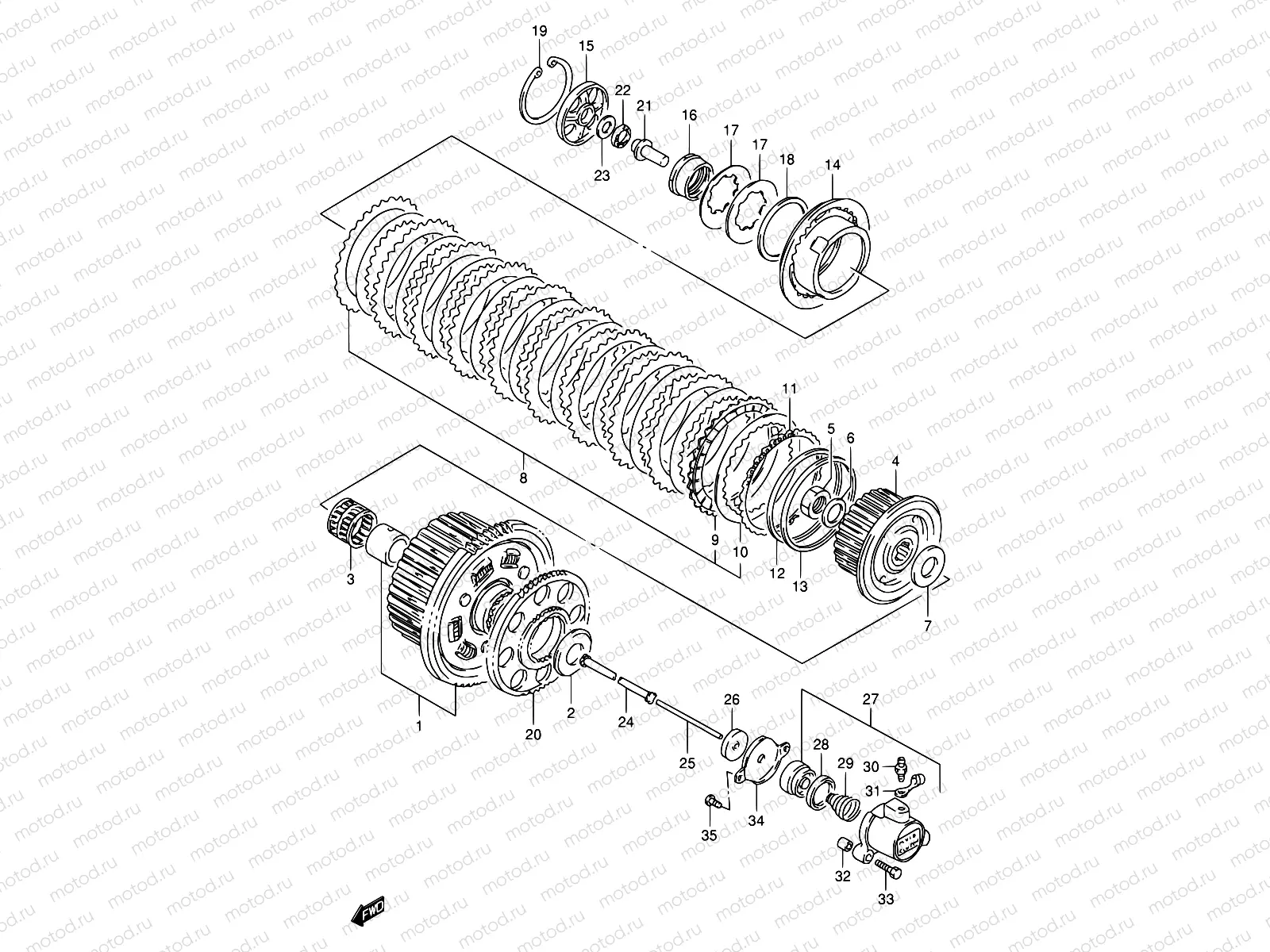

19 - CLUTCH (MODEL P/R)

19 - CLUTCH (MODEL P/R)
Например: 21200-40831
1
21200-40831
Gear assy,prim.
2
09160-25071
Шайба
8 090 ₽/шт
3
09263-35017
BEARING(35X40X35.8)
10 030 ₽/шт
4
21410-46E00
Hub,clutch slv
5
09159-24008
Гайка
8 950 ₽/шт
6
09164-24006
ШАЙБА ФОРСУНКИ
226 ₽/шт
7
09160-25056
WASHER
727 ₽/шт
8
21400-40C01
Plate assy,cltc
9
21441-48B00
PLATE,CLUTCH DRIVE NO.1
7 480 ₽/шт
10
21451-48B00
Диск сцепления
1 071 ₽/шт
11
21442-46E00
Plate,drive no2
12
09164-00007
Washer
13
21471-40C01
Seat wave washe
14
21462-40C02
Disc,clpress
15
21463-40C01
LIFTER,CLUTCH PRESSURE DISC
7 395 ₽/шт
16
21611-40C01
Holder clutch
17
09164-47001
Шайба
2 261 ₽/шт
18
21623-40C00
SEAT,CLUTCH SPRING
571 ₽/шт
19
09381-84003
КЛИПС
6 530 ₽/шт
20
22721-21E02
Gear,generator
21
23121-31E00
PIECE,CLUTCH PUSH
1 377 ₽/шт
22
09263-15003
Подшипник 15X28X2
532 ₽/шт
23
09160-15045
Шайба
211 ₽/шт
24
23110-27A00
ROD,CLUTCH
2 210 ₽/шт
25
23111-24A01
ROD,CLUTCH PUSH,L
1 147 ₽/шт
26
09285-06015
САЛЬНИК УПЛОТНИТЕЛЬНЫЙ
840 ₽/шт
27
23160-06B03
CYLINDER,CLUTCH RELEASE
14 591 ₽/шт
28
23163-06B00
CUP
505 ₽/шт
29
23164-05A00
Пружина
289 ₽/шт
30
59121-01A00
BLEEDER
1 226 ₽/шт
31
59122-01A00
CAP,BLEEDER
187 ₽/шт
32
04211-09129
Стопор
102 ₽/шт
33
07130-0625B
БОЛТ
97 ₽/шт
34
23117-46E00
КРЫШКА ЦИЛИНДРА СЦЕПЛЕНИЯ
617 ₽/шт
35
02112-0610B
Винт
81 ₽/шт
